ST183-BLMSK (1989)

Toyota Celica

Production Sep 1989 - Aug 1991
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8909- )3SFE

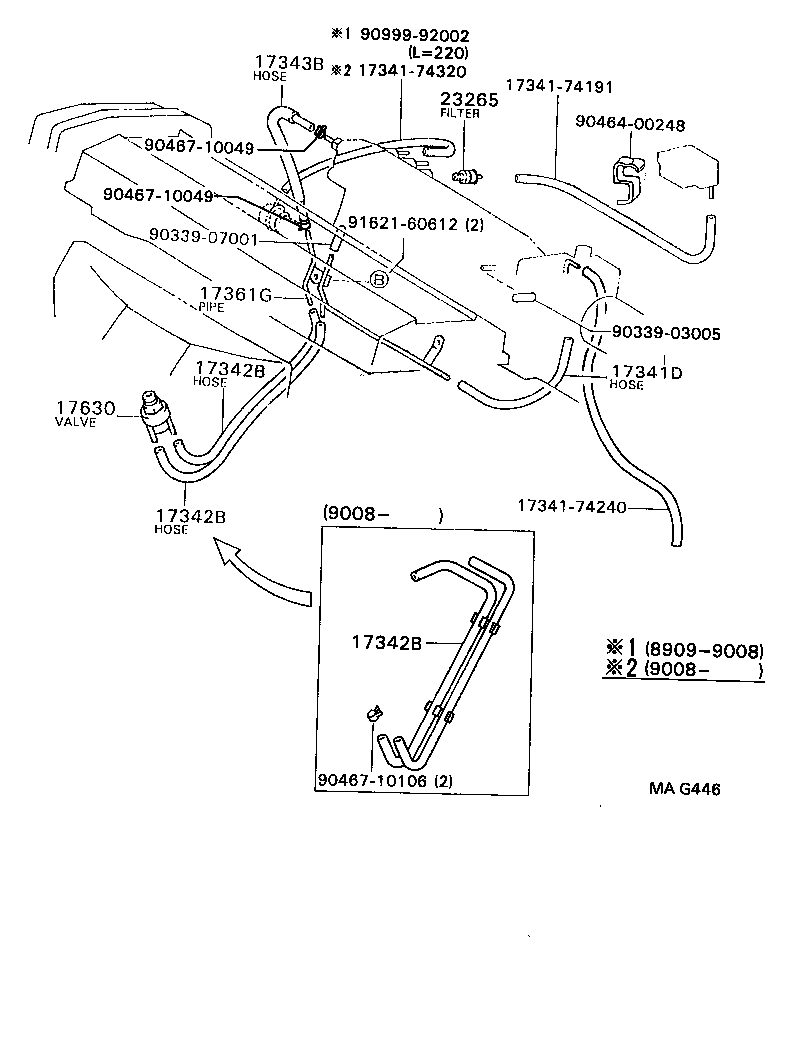

Click highlighted areas on diagram

diagram 1734174191 1734174240 1734174320 17341D 17342B 17342B 17342B 17343B 17361G 17630 23265 9033903005 9033907001 9046400248 9046710049 9046710049 9046710106 9099992002 9162160612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

3SFE..ST182,183

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST182,183

 2
17343-74100

3SFE..ST182,183

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST182,183

 2
17343-74100

3SFE..ST182,183

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST182,183

 2
17343-74100

3SFE..ST182,183

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74040

3SFE..ST182,183

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74030

3SFE..ST182,183

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE,3SG#..ST18#

 1
23265 - FILTER, GAS, NO.1
90917-11032

3SFE..ST182,183

 1
Common parts
17341-74191
17341-74240
17341-74320
90339-03005
90339-07001
90464-00248
90467-10049
90467-10106
90999-92002
91621-60612
