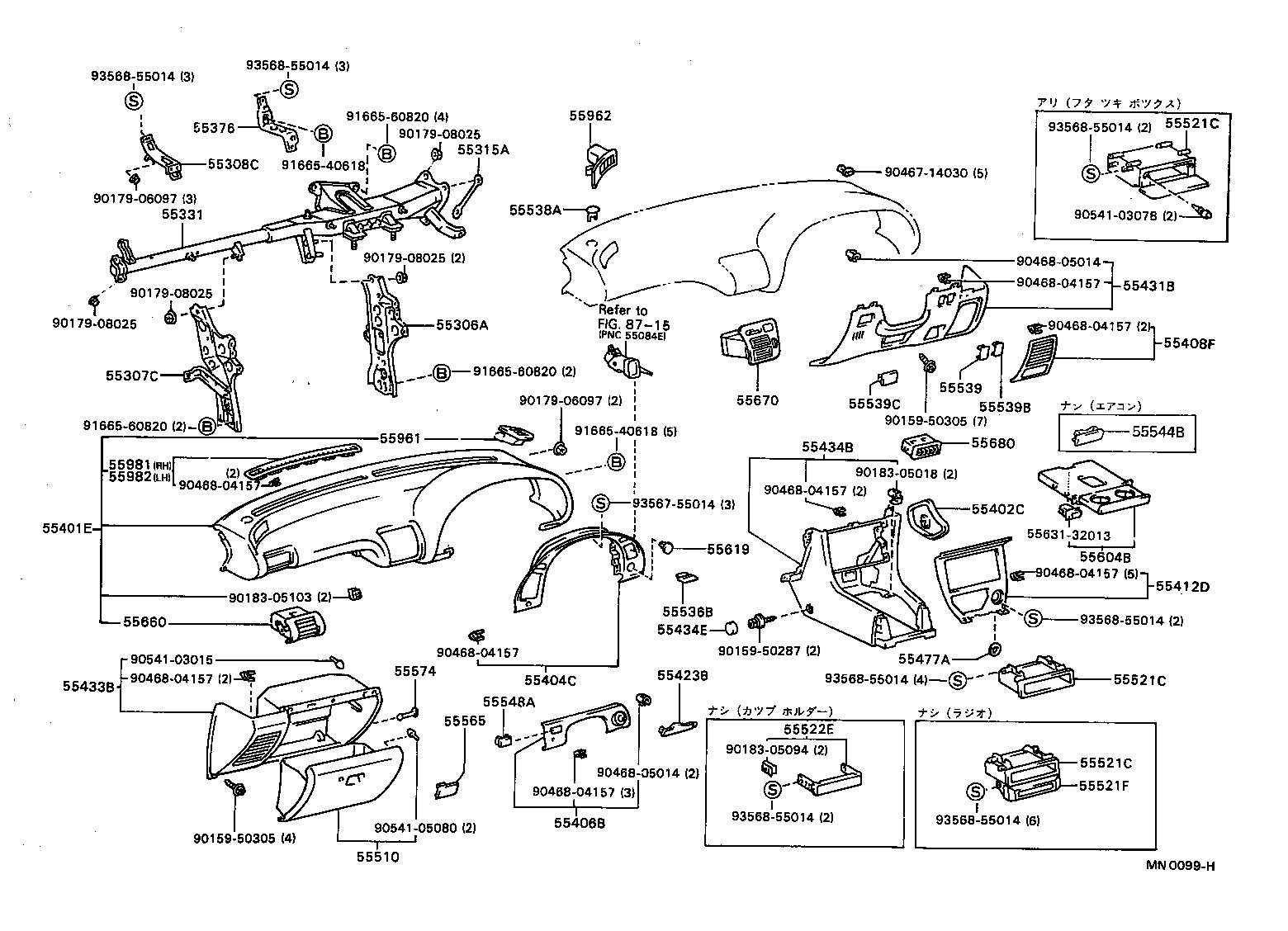

Toyota Celica ST182 INSTRUMENT PANEL & GLOVE COMPARTMENT

Part #	Description	Period	Qty
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20170	ST18#	09/1989 - 09/1993	1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-20160	ST18#	09/1989 - 09/1993	1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-20160	ST18#	09/1989 - 09/1993	1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-20040	ST18# 厚さ=1.5	09/1989 - 09/1993	1
55315-20060	ST18# 厚さ=0.5	09/1989 - 09/1993	1
55315-20050	ST18# 厚さ=1.0	09/1989 - 09/1993	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20121	ST18#	09/1990 - 09/1993	1
55330-20120	ST18#	09/1989 - 09/1990	1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-20070	ST18#	09/1989 - 09/1993	1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-2057004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55401-2057003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
55402-2013004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55402-2013003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-20270	ST18#	09/1989 - 09/1993	1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-20040	ST18#	09/1989 - 09/1993	1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-2013004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55472-2013003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-20390	ST18#	09/1989 - 09/1993	1
55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL
55423-20150	ST18#	09/1989 - 09/1993	1
55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER
55432-20191B0	ST18# SHADOW GRAY,TRIM1#	08/1991 - 09/1993	1
55432-2019003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 07/1991	1
55432-2019004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 07/1991	1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-2011004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55433-2011003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-2014003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55434-2014004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55434E - CAP
90339-1000904	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	2
90339-1000903	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	2
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20090	ST18#	09/1989 - 09/1993	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-2013003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55501-2013004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55521C - COVER, STEREO OPENING
55521-16030	ST18#..GT4A,GTR,SR,ZR	12/1990 - 08/1991	1
55521-16030	ST18#..CV,GT4A,GTR,SR,ZR	10/1989 - 12/1990	1
55521-16030	ST18#..GT4RC,GTR,SR	08/1991 - 09/1993	1
55521C - COVER, STEREO OPENING
55521-16030	ST18#..GT4A,GTR,SR,ZR	12/1990 - 08/1991	1
55521-16030	ST18#..CV,GT4A,GTR,SR,ZR	10/1989 - 12/1990	1
55521-16030	ST18#..GT4RC,GTR,SR	08/1991 - 09/1993	1
55521C - COVER, STEREO OPENING
55521-16030	ST18#..GT4A,GTR,SR,ZR	12/1990 - 08/1991	1
55521-16030	ST18#..CV,GT4A,GTR,SR,ZR	10/1989 - 12/1990	1
55521-16030	ST18#..GT4RC,GTR,SR	08/1991 - 09/1993	1
55521F - COVER, STEREO OPENING, NO.2
55521-20130	ST18#..GT4RC,GTR,SR,ZR	12/1990 - 09/1993	1
55521-20130	ST182,183..CV,GTR,SR,ZR	10/1989 - 12/1990	1
55536B - COVER, LIGHT CONTROL SWITCH HOLE
55536-20030	ST182,183	09/1989 - 08/1991	1
55538A - COVER, COOLER SWITCH HOLE
55538-2006003	ST18#..CV,GT4,GT4A,GTR,SR,ZR SHADOW GRAY,TRIM1#	09/1989 - 08/1991	1
55538-2006004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55539 - COVER, SPARE SWITCH HOLE
55539-2008004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55539-2008003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-2008004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55539-2008003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55539C - COVER, SPARE SWITCH HOLE
55546-2002003	ST182,185 SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55546-2002004	ST182 DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55544B - COVER, INSTRUMENT PANEL LOWER REGISTER HOLE
55544-2203014	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	07/1991 - 08/1991	1
55544-2203003	ST18#..CV,GT4,GT4A,GTR,SR,ZR SHADOW GRAY,TRIM1#	07/1991 - 08/1991	1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-2007003	ST18# SHADOW GRAY,TRIM1#	09/1991 - 09/1993	1
55565-2007003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 08/1991	1
55565-2007004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010	ST18#	09/1989 - 09/1993	2
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-20040	ST18#..ACT,GT4,GTR,ZR	09/1989 - 08/1990	1
55604-20040	ST18#	08/1990 - 09/1993	1
55619 - COVER, SWITCH HOLE
55534-20050	ST18#	09/1989 - 09/1993	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-2017004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55660-2017003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-2013003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55670-2013004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-1403013	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55680-14030J0	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2018003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55961-2018004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2018003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55962-2018004	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-2010104	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	12/1989 - 08/1991	1
55981-2010004	ST182,183 DARK BLUE,TRIM8#	09/1989 - 12/1989	1
55981-2010103	ST18# SHADOW GRAY,TRIM1#	12/1989 - 09/1993	1
55981-2010003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 12/1989	1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-2010104	ST182,183..GTR,SR,ZR DARK BLUE,TRIM8#	12/1989 - 08/1991	1
55982-2010004	ST182,183 DARK BLUE,TRIM8#	09/1989 - 12/1989	1
55982-2010003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 12/1989	1
55982-2010103	ST18# SHADOW GRAY,TRIM1#	12/1989 - 09/1993	1
Common parts
55631-32013
90159-50287
90159-50305
90179-06097
90179-08025
90183-05018
90183-05094
90183-05103
90467-14030
90468-04157
90468-05014
90541-03015
90541-03078
90541-05080
91665-40618
91665-60820
93567-55014
93568-55014
Linked diagrams
8715

ST182-BLPVF (1989)

(8909- )
