ST182-BLPVF (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

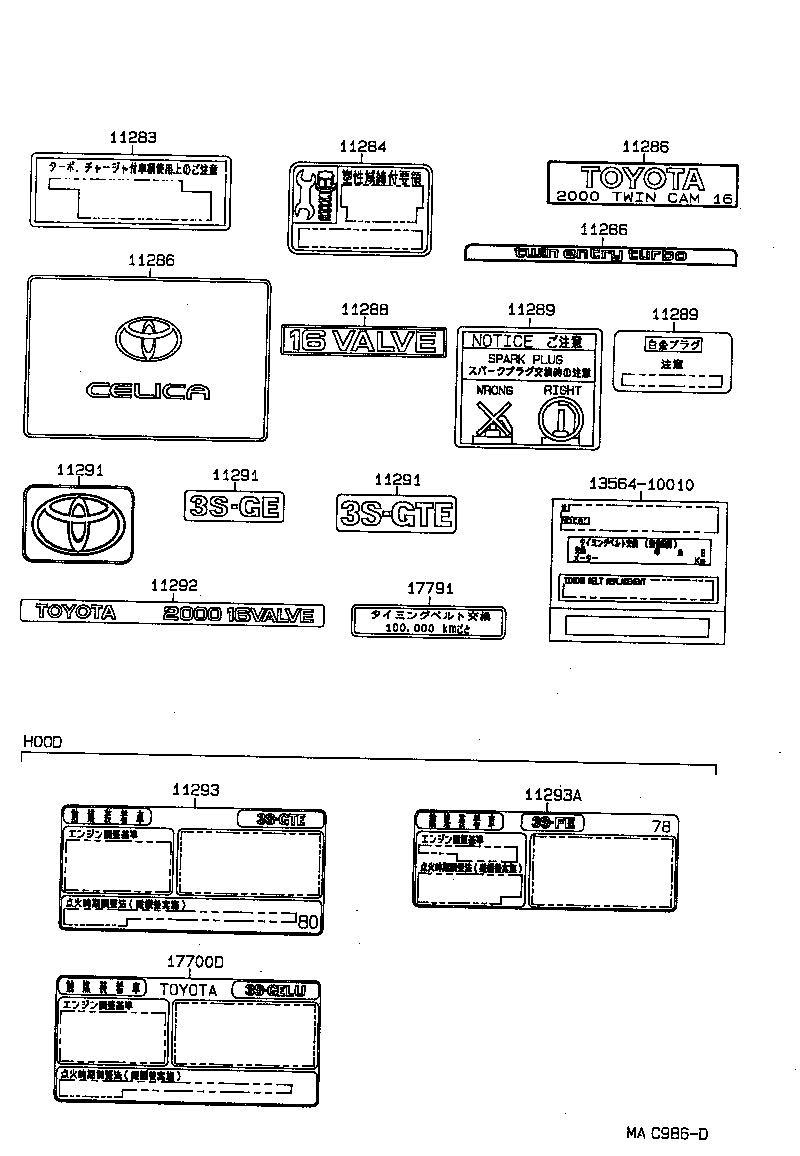

Click highlighted areas on diagram

diagram 11283 11284 11286 11286 11286 11288 11289 11289 11291 11291 11291 11292 11293 11293A 1356410010 17700D 17791
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-74030

3SG#..ST18#

 1
11284-74030

3SFE,3SG#..ST18#

 1
11286 - PLATE, ENGINE SPECIFICATION
11286-74010

3SGE..ST182,183

 1
11286 - PLATE, ENGINE SPECIFICATION
11286-74010

3SGE..ST182,183

 1
11286 - PLATE, ENGINE SPECIFICATION
11286-74010

3SGE..ST182,183

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-16010

3SG#..ST18#

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-16010

3SG#..ST18#

 1
11291 - PLATE, ENGINE NAME
11291-88360

3SGE..ST182,183

 1
11291 - PLATE, ENGINE NAME
11291-88360

3SGE..ST182,183

 1
11291 - PLATE, ENGINE NAME
11291-88360

3SGE..ST182,183

 1
17700D - PLATE, ENGINE CAUTION
11293-74240

3SGE..ST182,183..GTR

 1
11293-74210

3SGE..ST182,183

 1
11293-74240

3SGE..ST182,183

 1
11293-74211

3SGE..ST182,183

 1
Common parts
13564-10010
