ST182-BLMVF (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

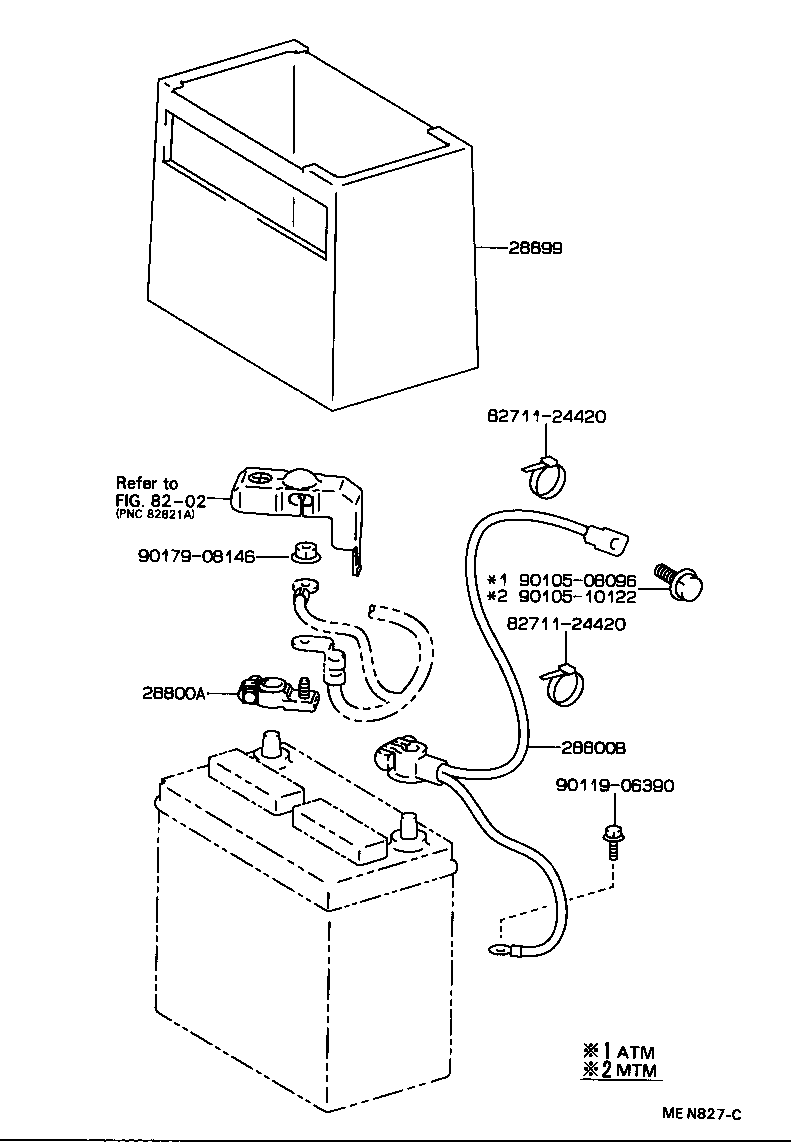

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05028 |
3SFE,3SGE..ST182,183..GTR,SR,ZR |
1 | ||
| 90982-05030 |
3SFE,3SGE..ST182,183..GTR,ZR ｱﾘ(55D23L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 82123-20120 |
3SFE,3SGE..ST182,183..GTR,ZR ｱﾘ(55D23L ﾊﾞﾂﾃﾘ) |
1 | ||
| 82123-20121 |
3SFE,3SGE..ST182,183..GTR,ZR ｱﾘ(55D23L ﾊﾞﾂﾃﾘ) |
1 | ||
| 82123-20170 |
3SFE,3SGE..ST182,183..GTR,SR,ZR |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-74050 |
3SFE..ST183..MTM;3SFE,3SGE..ST182,183..MTM..(GTR,SR,ZR) |
1 | ||
| 28899-74070 |
3SFE,3SGE..ST182,183..GTR,ZR ｱﾘ(55D23L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28899-74060 |
3SFE..ST183..MTM;3SFE,3SGE..ST182,183..MTM..(GTR,SR,ZR) ｱﾘ(46B24L ﾊﾞﾂﾃﾘ) |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8202 | ||||
