ST182-BLMVF (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

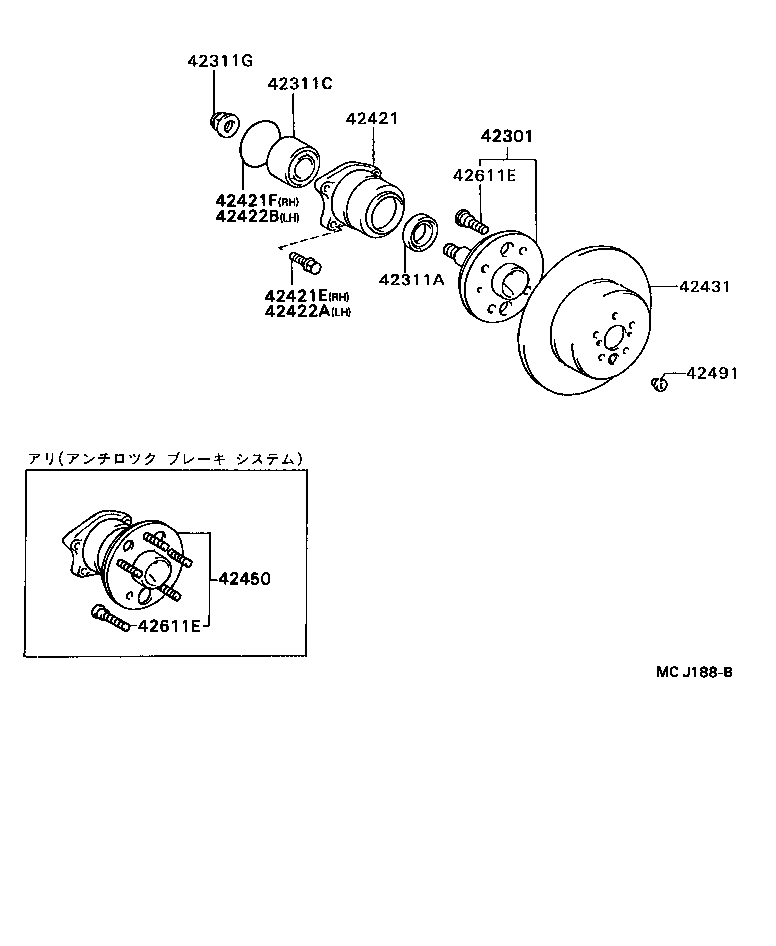

(8909-9307)ST182,183
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42301 - SHAFT SUB-ASSY, REAR AXLE | ||||
| 42301-20140 |
ST182,183..CV,GTR,SR,ZR |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-42018 |
ST182,183 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-30044 |
ST182,183..CV,GTR,SR,ZR |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20017 |
ST182,183 |
2 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-20020 |
ST182,183 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10124 |
ST182,183 |
4 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-63003 |
ST182,183 |
1 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10124 |
ST182,183 |
4 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-63003 |
ST182,183 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-20090 |
ST182,183 |
2 | ||
| 42431-20160 |
ST182,183 |
2 | ||
| 42450 - HUB & BEARING ASSY, REAR AXLE | ||||
| 42450-20030 |
ST182,183 |
2 | ||
| 42450-20030 |
ST182,183..GTR,ZR ｱﾘ(*66) |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
ST18# |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
ST18# |
5 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
ST18# |
5 | ||

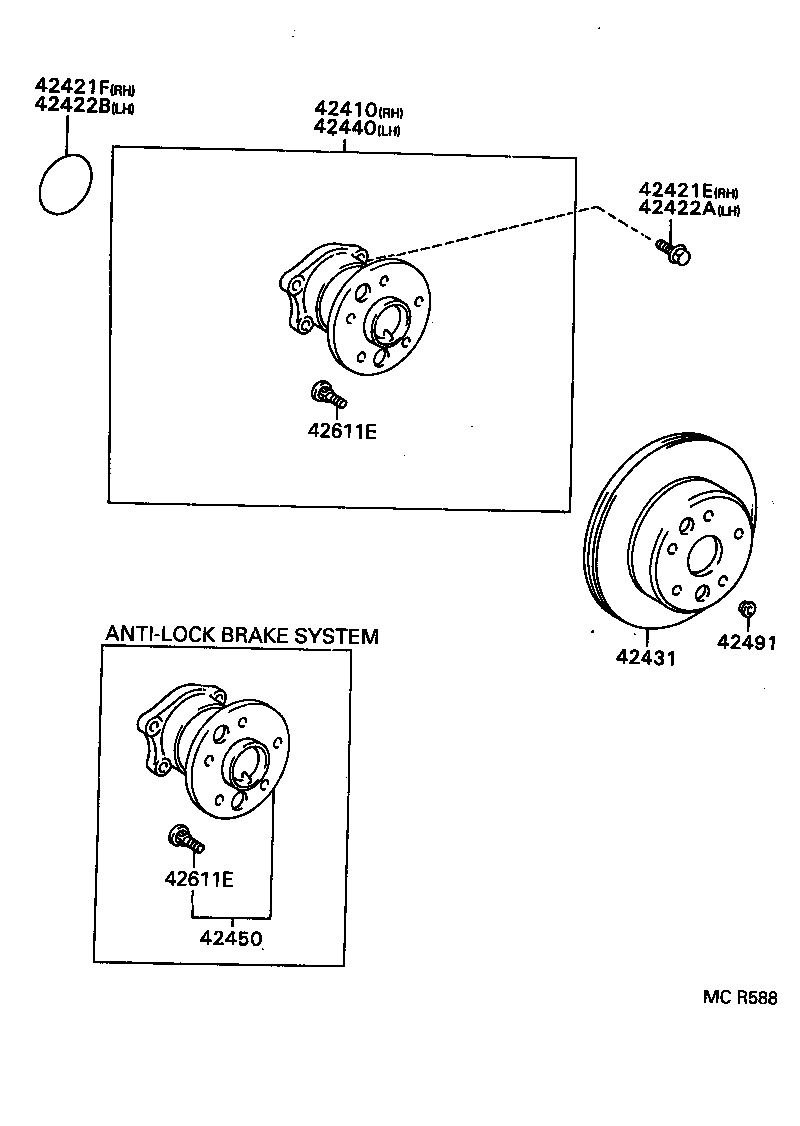

(9307- )ST182,183
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-20140 |
ST182,183 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10124 |
ST182,183 |
4 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-63003 |
ST182,183 |
1 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10124 |
ST182,183 |
4 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-63003 |
ST182,183 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-20090 |
ST182,183 |
2 | ||
| 42431-20160 |
ST182,183 |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-20140 |
ST182,183 |
1 | ||
| 42450 - HUB & BEARING ASSY, REAR AXLE | ||||
| 42450-20030 |
ST182,183 |
2 | ||
| 42450-20030 |
ST182,183..GTR,ZR ｱﾘ(*66) |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
ST18# |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
ST18# |
5 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
ST18# |
5 | ||
