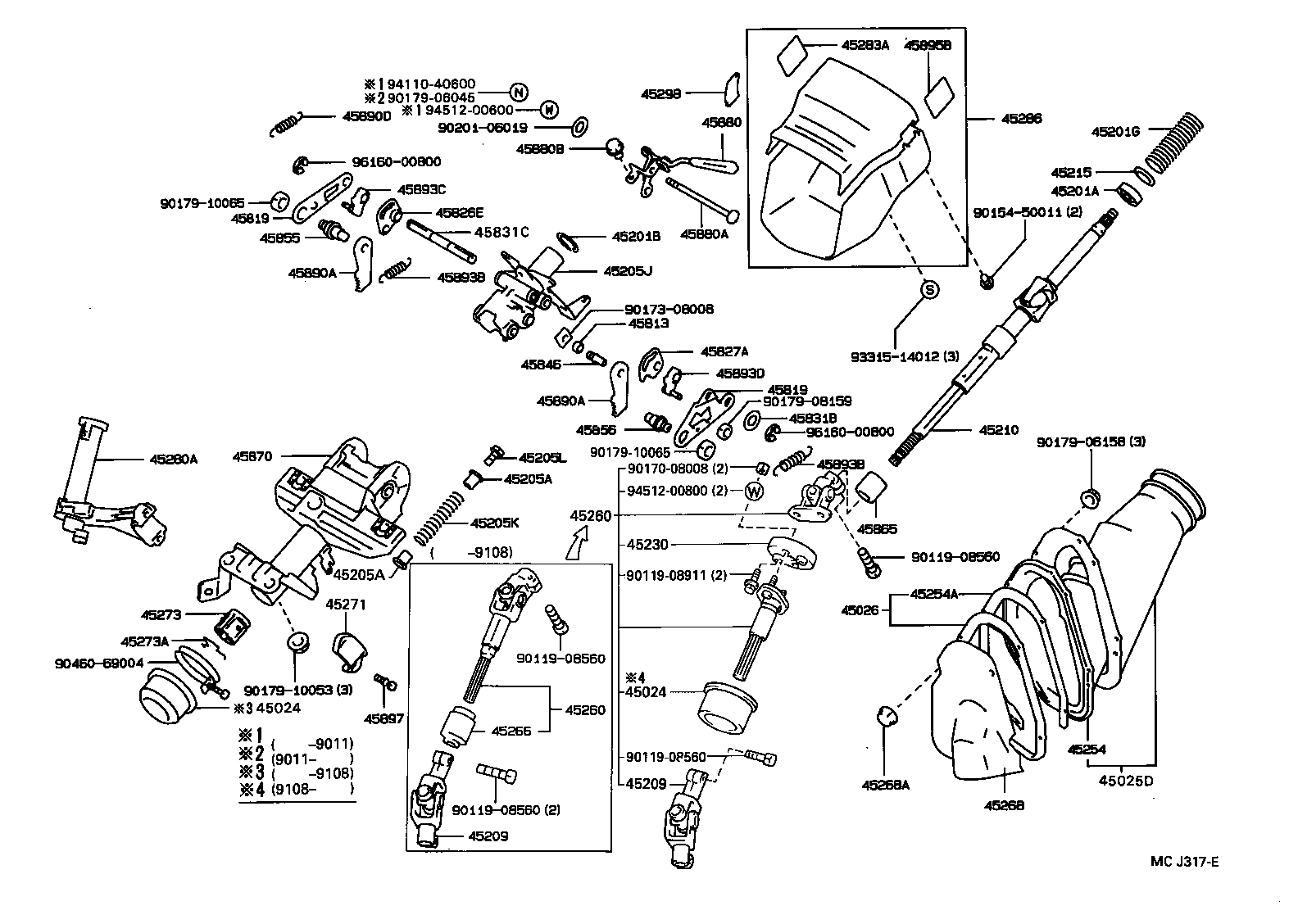

ST182-BLMSK (1989)
Toyota Celica
(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-20110 |
ST182,183..SR |
1 | ||
| 45026-20110 |
ST18#..LB |
1 | ||
| 45026-20110 |
ST18# |
1 | ||
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-20110 |
ST182,183..SR |
1 | ||
| 45026-20110 |
ST18#..LB |
1 | ||
| 45026-20110 |
ST18# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20280 |
ST18# |
1 | ||
| 45025-20410 |
ST18#..LB |
1 | ||
| 45025-20410 |
ST18# |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20050 |
ST18# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
ST18# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST18# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
ST18# |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182..SR |
1 | ||
| 90386-06043 |
ST182..SR ｱﾘ(*80) |
2 | ||
| 90386-06031 |
ST18# |
2 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182..SR |
1 | ||
| 90386-06043 |
ST182..SR ｱﾘ(*80) |
2 | ||
| 90386-06031 |
ST18# |
2 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-20260 |
ST182,183..SR |
1 | ||
| 45205-20260 |
ST182..SR |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25004 |
ST18#..CV,GT4,GT4A,GTR,SR,ZR |
1 | ||
| 90504-25004 |
ST18#..GT4,GTR,SR,ZR |
1 | ||
| 90504-29002 |
ST18#..GT4,GTR,SR,ZR ｱﾘ(*80) |
1 | ||
| 90504-25008 |
ST18#..LB |
1 | ||
| 90504-25004 |
ST18#..LB |
1 | ||
| 45205L - SCREW(FOR STEERING COLUMN TUBE) | ||||
| 90159-60429 |
ST18# |
1 | ||
| 90159-60429 |
ST182,185;ST183..ACT,GTR,ZR |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST18# |
1 | ||
| 45209-16010 |
ST18#..LB |
1 | ||
| 45209-16010 |
ST18# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST18# |
1 | ||
| 45209-16010 |
ST18#..LB |
1 | ||
| 45209-16010 |
ST18# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-20290 |
ST182,183..SR |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
ST18# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-20030 |
ST18# |
1 | ||
| 45230-20030 |
ST18#..LB |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20190 |
ST18# |
1 | ||
| 45254-20230 |
ST18# |
1 | ||
| 45254-20230 |
ST18#..LB |
1 | ||
| 45254A - SHIELD, STEERING COLUMN HOLE, NO.2 | ||||
| 45254-20210 |
ST18# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20160 |
ST18# |
1 | ||
| 45260-20320 |
ST18#..LB |
1 | ||
| 45260-20320 |
ST18# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20160 |
ST18# |
1 | ||
| 45260-20320 |
ST18#..LB |
1 | ||
| 45260-20320 |
ST18# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
ST18# |
1 | ||
| 45268 - COVER, STEERING INTER SHAFT DUST SEAL | ||||
| 45268-20030 |
ST18# |
1 | ||
| 45268A - NUT(FOR STEERING INTER SHAFT DUST SEAL COVER) | ||||
| 90179-06007 |
ST18# |
4 | ||
| 90179-06070 |
ST18# |
4 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
ST182,183..SR |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20011 |
ST182,183..SR |
1 | ||
| 45273-20010 |
ST182,183..SR |
1 | ||
| 45273A - RING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH) | ||||
| 90521-01006 |
ST182,183..SR |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20500 |
ST182..SR |
1 | ||
| 45280-20490 |
ST182,183..SR |
1 | ||
| 45280-20500 |
ST182,183..SR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
ST18# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2091207 |
ST182,183..SR KHAKI,TRIM8# |
1 | ||
| 45287-2091204 |
ST182,183..SR DARK BLUE,TRIM8# |
1 | ||
| 45287-2091203 |
ST182,183..SR SHADOW GRAY,TRIM1# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-2001004 |
ST182,183..GTR,SR,ZR DARK BLUE,TRIM8# |
1 | ||
| 45298-2001003 |
ST18#..LB SHADOW GRAY,TRIM1# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
ST182..SR |
2 | ||
| 45819-22060 |
ST182..SR |
2 | ||
| 45819-22040 |
ST182,183..SR |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
ST182..SR |
2 | ||
| 45819-22060 |
ST182..SR |
2 | ||
| 45819-22040 |
ST182,183..SR |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-22050 |
ST18# |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
ST182,183..SR |
1 | ||
| 45831B - SPACER(FOR TILT LEVER LOCK SHAFT) | ||||
| 90560-10062 |
ST18# |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-20030 |
ST18# |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45856-22010 |
ST182,183..SR 外径=9.989−9.998 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
ST182,183..SR 外径=9.989−9.998 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-20010 |
ST182,183..SR |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20270 |
ST182,183..SR |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-20010 |
ST182,183..SR |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
ST182..SR |
1 | ||
| 90109-06162 |
ST182,183..SR |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 93385-15014 |
ST182,185;ST183..ACT,GTR,ZR |
1 | ||
| 93385-15014 |
ST18# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
ST18# 右側 |
1 | ||
| 45890-22090 |
ST18# 左側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
ST18# 右側 |
1 | ||
| 45890-22090 |
ST18# 左側 |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-07003 |
ST182,183..SR |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
ST182,183..SR 左側 |
1 | ||
| 90507-10019 |
ST18# 右側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
ST182,183..SR 左側 |
1 | ||
| 90507-10019 |
ST18# 右側 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22030 |
ST182,183..SR ﾏｰｸ 1 |
1 | ||
| 45893-20190 |
ST18# ﾏｰｸ 1 |
1 | ||
| 45893-22060 |
ST182,183..SR ﾏｰｸ 4 |
1 | ||
| 45893-20200 |
ST18# ﾏｰｸ 2 |
1 | ||
| 45893-22050 |
ST182,183..SR ﾏｰｸ 3 |
1 | ||
| 45893-22040 |
ST182,183..SR ﾏｰｸ 2 |
1 | ||
| 45893-20220 |
ST18# ﾏｰｸ 4 |
1 | ||
| 45893-20230 |
ST18# ﾏｰｸ 5 |
1 | ||
| 45893-22070 |
ST182,183..SR ﾏｰｸ 5 |
1 | ||
| 45893-20240 |
ST18# ﾏｰｸ 6 |
1 | ||
| 45893-20250 |
ST18# ﾏｰｸ 7 |
1 | ||
| 45893-20210 |
ST18# ﾏｰｸ 3 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20270 |
ST18# ﾏｰｸ B |
1 | ||
| 45893-20260 |
ST18# ﾏｰｸ A |
1 | ||
| 45893-20300 |
ST18# ﾏｰｸ E |
1 | ||
| 45893-20310 |
ST18# ﾏｰｸ F |
1 | ||
| 45893-20320 |
ST18# ﾏｰｸ G |
1 | ||
| 45893-20290 |
ST18# ﾏｰｸ D |
1 | ||
| 45893-20280 |
ST18# ﾏｰｸ C |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20090 |
ST182,183..SR |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ST18# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08911 | ||||
| 90154-50011 | ||||
| 90170-08008 | ||||
| 90173-08008 | ||||
| 90179-06045 | ||||
| 90179-06158 | ||||
| 90179-08159 | ||||
| 90179-10053 | ||||
| 90179-10065 | ||||
| 90201-06019 | ||||
| 90460-69004 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 96160-00800 | ||||

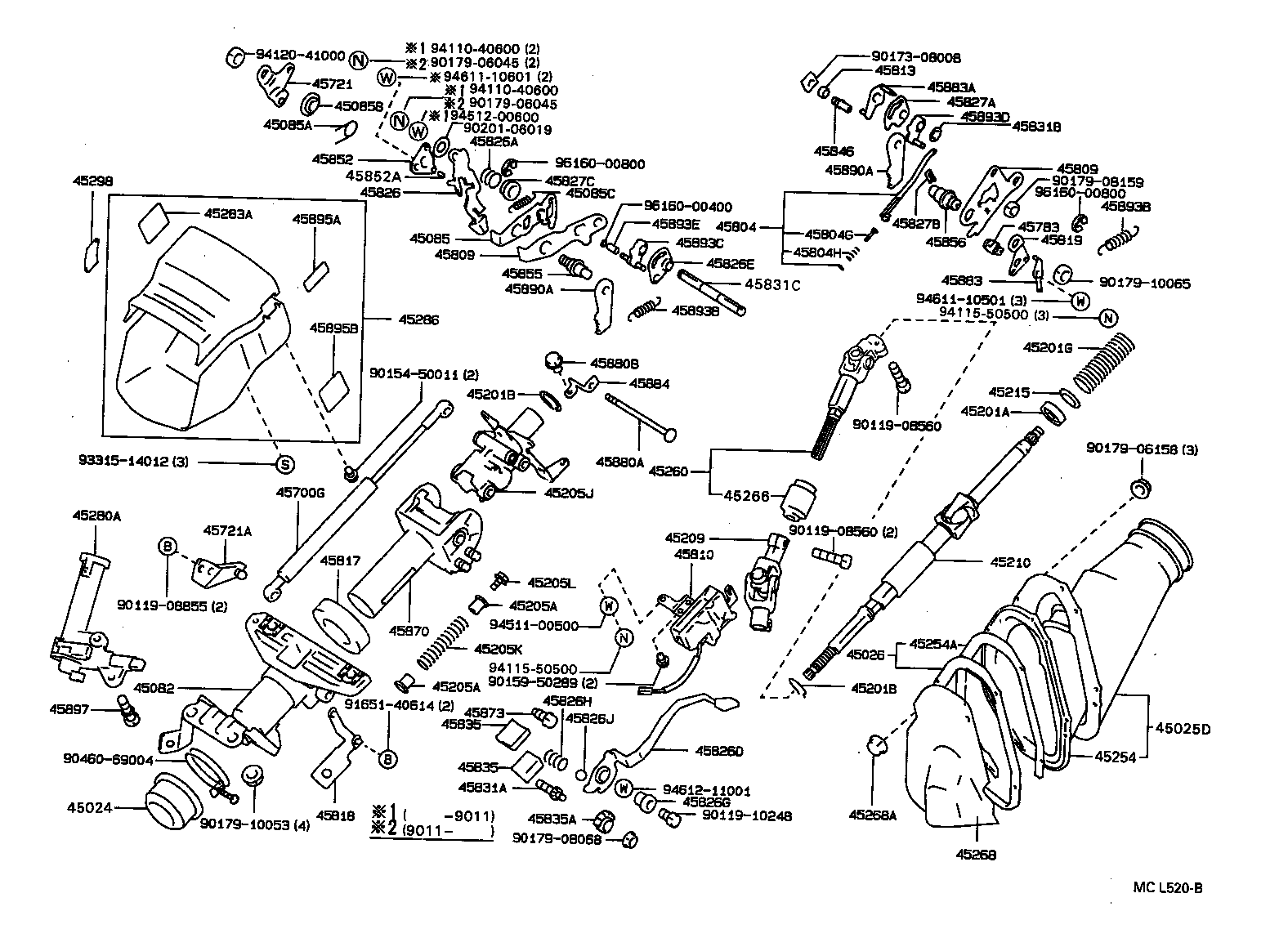

(8909-9108)
ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-20110 |
ST182,183..SR |
1 | ||
| 45026-20110 |
ST18#..LB |
1 | ||
| 45026-20110 |
ST18# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20280 |
ST18# |
1 | ||
| 45025-20410 |
ST18#..LB |
1 | ||
| 45025-20410 |
ST18# |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20050 |
ST18# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
ST18# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST18# 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST18# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
ST18# |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182..SR |
1 | ||
| 90386-06043 |
ST182..SR ｱﾘ(*80) |
2 | ||
| 90386-06031 |
ST18# |
2 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182..SR |
1 | ||
| 90386-06043 |
ST182..SR ｱﾘ(*80) |
2 | ||
| 90386-06031 |
ST18# |
2 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-20260 |
ST182,183..SR |
1 | ||
| 45205-20260 |
ST182..SR |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25004 |
ST18#..CV,GT4,GT4A,GTR,SR,ZR |
1 | ||
| 90504-25004 |
ST18#..GT4,GTR,SR,ZR |
1 | ||
| 90504-29002 |
ST18#..GT4,GTR,SR,ZR ｱﾘ(*80) |
1 | ||
| 90504-25008 |
ST18#..LB |
1 | ||
| 90504-25004 |
ST18#..LB |
1 | ||
| 45205L - SCREW(FOR STEERING COLUMN TUBE) | ||||
| 90159-60429 |
ST18# |
1 | ||
| 90159-60429 |
ST182,185;ST183..ACT,GTR,ZR |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST18# |
1 | ||
| 45209-16010 |
ST18#..LB |
1 | ||
| 45209-16010 |
ST18# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-20290 |
ST182,183..SR |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
ST18# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20190 |
ST18# |
1 | ||
| 45254-20230 |
ST18# |
1 | ||
| 45254-20230 |
ST18#..LB |
1 | ||
| 45254A - SHIELD, STEERING COLUMN HOLE, NO.2 | ||||
| 45254-20210 |
ST18# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20160 |
ST18# |
1 | ||
| 45260-20320 |
ST18#..LB |
1 | ||
| 45260-20320 |
ST18# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
ST18# |
1 | ||
| 45268 - COVER, STEERING INTER SHAFT DUST SEAL | ||||
| 45268-20030 |
ST18# |
1 | ||
| 45268A - NUT(FOR STEERING INTER SHAFT DUST SEAL COVER) | ||||
| 90179-06007 |
ST18# |
4 | ||
| 90179-06070 |
ST18# |
4 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20500 |
ST182..SR |
1 | ||
| 45280-20490 |
ST182,183..SR |
1 | ||
| 45280-20500 |
ST182,183..SR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
ST18# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2091207 |
ST182,183..SR KHAKI,TRIM8# |
1 | ||
| 45287-2091204 |
ST182,183..SR DARK BLUE,TRIM8# |
1 | ||
| 45287-2091203 |
ST182,183..SR SHADOW GRAY,TRIM1# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-2001004 |
ST182,183..GTR,SR,ZR DARK BLUE,TRIM8# |
1 | ||
| 45298-2001003 |
ST18#..LB SHADOW GRAY,TRIM1# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
ST182..SR |
2 | ||
| 45819-22060 |
ST182..SR |
2 | ||
| 45819-22040 |
ST182,183..SR |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-22050 |
ST18# |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
ST182,183..SR |
1 | ||
| 45831B - SPACER(FOR TILT LEVER LOCK SHAFT) | ||||
| 90560-10062 |
ST18# |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-20030 |
ST18# |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45856-22010 |
ST182,183..SR 外径=9.989−9.998 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
ST182,183..SR 外径=9.989−9.998 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20270 |
ST182,183..SR |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
ST182..SR |
1 | ||
| 90109-06162 |
ST182,183..SR |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 93385-15014 |
ST182,185;ST183..ACT,GTR,ZR |
1 | ||
| 93385-15014 |
ST18# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
ST18# 右側 |
1 | ||
| 45890-22090 |
ST18# 左側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
ST18# 右側 |
1 | ||
| 45890-22090 |
ST18# 左側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
ST182,183..SR 左側 |
1 | ||
| 90507-10019 |
ST18# 右側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
ST182,183..SR 左側 |
1 | ||
| 90507-10019 |
ST18# 右側 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22030 |
ST182,183..SR ﾏｰｸ 1 |
1 | ||
| 45893-20190 |
ST18# ﾏｰｸ 1 |
1 | ||
| 45893-22060 |
ST182,183..SR ﾏｰｸ 4 |
1 | ||
| 45893-20200 |
ST18# ﾏｰｸ 2 |
1 | ||
| 45893-22050 |
ST182,183..SR ﾏｰｸ 3 |
1 | ||
| 45893-22040 |
ST182,183..SR ﾏｰｸ 2 |
1 | ||
| 45893-20220 |
ST18# ﾏｰｸ 4 |
1 | ||
| 45893-20230 |
ST18# ﾏｰｸ 5 |
1 | ||
| 45893-22070 |
ST182,183..SR ﾏｰｸ 5 |
1 | ||
| 45893-20240 |
ST18# ﾏｰｸ 6 |
1 | ||
| 45893-20250 |
ST18# ﾏｰｸ 7 |
1 | ||
| 45893-20210 |
ST18# ﾏｰｸ 3 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20270 |
ST18# ﾏｰｸ B |
1 | ||
| 45893-20260 |
ST18# ﾏｰｸ A |
1 | ||
| 45893-20300 |
ST18# ﾏｰｸ E |
1 | ||
| 45893-20310 |
ST18# ﾏｰｸ F |
1 | ||
| 45893-20320 |
ST18# ﾏｰｸ G |
1 | ||
| 45893-20290 |
ST18# ﾏｰｸ D |
1 | ||
| 45893-20280 |
ST18# ﾏｰｸ C |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20090 |
ST182,183..SR |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ST18# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08855 | ||||
| 90119-10248 | ||||
| 90154-50011 | ||||
| 90159-50289 | ||||
| 90173-08008 | ||||
| 90179-06045 | ||||
| 90179-06158 | ||||
| 90179-08068 | ||||
| 90179-08159 | ||||
| 90179-10053 | ||||
| 90179-10065 | ||||
| 90201-06019 | ||||
| 90460-69004 | ||||
| 91651-40614 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94115-50500 | ||||
| 94120-41000 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10501 | ||||
| 94611-10601 | ||||
| 94612-11001 | ||||
| 96160-00400 | ||||
| 96160-00800 | ||||
(9108- )
ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-20110 |
ST182,183..SR |
1 | ||
| 45026-20110 |
ST18#..LB |
1 | ||
| 45026-20110 |
ST18# |
1 | ||
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-20110 |
ST182,183..SR |
1 | ||
| 45026-20110 |
ST18#..LB |
1 | ||
| 45026-20110 |
ST18# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-20280 |
ST18# |
1 | ||
| 45025-20410 |
ST18#..LB |
1 | ||
| 45025-20410 |
ST18# |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-20050 |
ST18# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
ST18# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST18# 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST18# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
ST18# |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182..SR |
1 | ||
| 90386-06043 |
ST182..SR ｱﾘ(*80) |
2 | ||
| 90386-06031 |
ST18# |
2 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-06043 |
ST182..SR |
1 | ||
| 90386-06043 |
ST182..SR ｱﾘ(*80) |
2 | ||
| 90386-06031 |
ST18# |
2 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-20260 |
ST182,183..SR |
1 | ||
| 45205-20260 |
ST182..SR |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25004 |
ST18#..CV,GT4,GT4A,GTR,SR,ZR |
1 | ||
| 90504-25004 |
ST18#..GT4,GTR,SR,ZR |
1 | ||
| 90504-29002 |
ST18#..GT4,GTR,SR,ZR ｱﾘ(*80) |
1 | ||
| 90504-25008 |
ST18#..LB |
1 | ||
| 90504-25004 |
ST18#..LB |
1 | ||
| 45205L - SCREW(FOR STEERING COLUMN TUBE) | ||||
| 90159-60429 |
ST18# |
1 | ||
| 90159-60429 |
ST182,185;ST183..ACT,GTR,ZR |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
ST18# |
1 | ||
| 45209-16010 |
ST18#..LB |
1 | ||
| 45209-16010 |
ST18# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-20290 |
ST182,183..SR |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
ST18# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-20030 |
ST18# |
1 | ||
| 45230-20030 |
ST18#..LB |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20190 |
ST18# |
1 | ||
| 45254-20230 |
ST18# |
1 | ||
| 45254-20230 |
ST18#..LB |
1 | ||
| 45254A - SHIELD, STEERING COLUMN HOLE, NO.2 | ||||
| 45254-20210 |
ST18# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-20160 |
ST18# |
1 | ||
| 45260-20320 |
ST18#..LB |
1 | ||
| 45260-20320 |
ST18# |
1 | ||
| 45268 - COVER, STEERING INTER SHAFT DUST SEAL | ||||
| 45268-20030 |
ST18# |
1 | ||
| 45268A - NUT(FOR STEERING INTER SHAFT DUST SEAL COVER) | ||||
| 90179-06007 |
ST18# |
4 | ||
| 90179-06070 |
ST18# |
4 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20500 |
ST182..SR |
1 | ||
| 45280-20490 |
ST182,183..SR |
1 | ||
| 45280-20500 |
ST182,183..SR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
ST18# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2091207 |
ST182,183..SR KHAKI,TRIM8# |
1 | ||
| 45287-2091204 |
ST182,183..SR DARK BLUE,TRIM8# |
1 | ||
| 45287-2091203 |
ST182,183..SR SHADOW GRAY,TRIM1# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-2001004 |
ST182,183..GTR,SR,ZR DARK BLUE,TRIM8# |
1 | ||
| 45298-2001003 |
ST18#..LB SHADOW GRAY,TRIM1# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
ST182..SR |
2 | ||
| 45819-22060 |
ST182..SR |
2 | ||
| 45819-22040 |
ST182,183..SR |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-22050 |
ST18# |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
ST182,183..SR |
1 | ||
| 45831B - SPACER(FOR TILT LEVER LOCK SHAFT) | ||||
| 90560-10062 |
ST18# |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-20030 |
ST18# |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45856-22010 |
ST182,183..SR 外径=9.989−9.998 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
ST182,183..SR 外径=9.989−9.998 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20270 |
ST182,183..SR |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
ST182..SR |
1 | ||
| 90109-06162 |
ST182,183..SR |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 93385-15014 |
ST182,185;ST183..ACT,GTR,ZR |
1 | ||
| 93385-15014 |
ST18# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
ST18# 右側 |
1 | ||
| 45890-22090 |
ST18# 左側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
ST18# 右側 |
1 | ||
| 45890-22090 |
ST18# 左側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
ST182,183..SR 左側 |
1 | ||
| 90507-10019 |
ST18# 右側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
ST182,183..SR 左側 |
1 | ||
| 90507-10019 |
ST18# 右側 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22030 |
ST182,183..SR ﾏｰｸ 1 |
1 | ||
| 45893-20190 |
ST18# ﾏｰｸ 1 |
1 | ||
| 45893-22060 |
ST182,183..SR ﾏｰｸ 4 |
1 | ||
| 45893-20200 |
ST18# ﾏｰｸ 2 |
1 | ||
| 45893-22050 |
ST182,183..SR ﾏｰｸ 3 |
1 | ||
| 45893-22040 |
ST182,183..SR ﾏｰｸ 2 |
1 | ||
| 45893-20220 |
ST18# ﾏｰｸ 4 |
1 | ||
| 45893-20230 |
ST18# ﾏｰｸ 5 |
1 | ||
| 45893-22070 |
ST182,183..SR ﾏｰｸ 5 |
1 | ||
| 45893-20240 |
ST18# ﾏｰｸ 6 |
1 | ||
| 45893-20250 |
ST18# ﾏｰｸ 7 |
1 | ||
| 45893-20210 |
ST18# ﾏｰｸ 3 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20270 |
ST18# ﾏｰｸ B |
1 | ||
| 45893-20260 |
ST18# ﾏｰｸ A |
1 | ||
| 45893-20300 |
ST18# ﾏｰｸ E |
1 | ||
| 45893-20310 |
ST18# ﾏｰｸ F |
1 | ||
| 45893-20320 |
ST18# ﾏｰｸ G |
1 | ||
| 45893-20290 |
ST18# ﾏｰｸ D |
1 | ||
| 45893-20280 |
ST18# ﾏｰｸ C |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20090 |
ST182,183..SR |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ST18# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08855 | ||||
| 90119-08911 | ||||
| 90119-10248 | ||||
| 90154-50011 | ||||
| 90159-50289 | ||||
| 90170-08008 | ||||
| 90173-08008 | ||||
| 90179-06045 | ||||
| 90179-06158 | ||||
| 90179-08068 | ||||
| 90179-08159 | ||||
| 90179-10053 | ||||
| 90179-10065 | ||||
| 90201-06019 | ||||
| 90460-69004 | ||||
| 91651-40614 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94115-50500 | ||||
| 94120-41000 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94611-10501 | ||||
| 94611-10601 | ||||
| 94612-11001 | ||||
| 96160-00400 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
