ST165-BLMVZ (1987)

Toyota Celica

Production Oct 1987 - Aug 1989
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )ST165

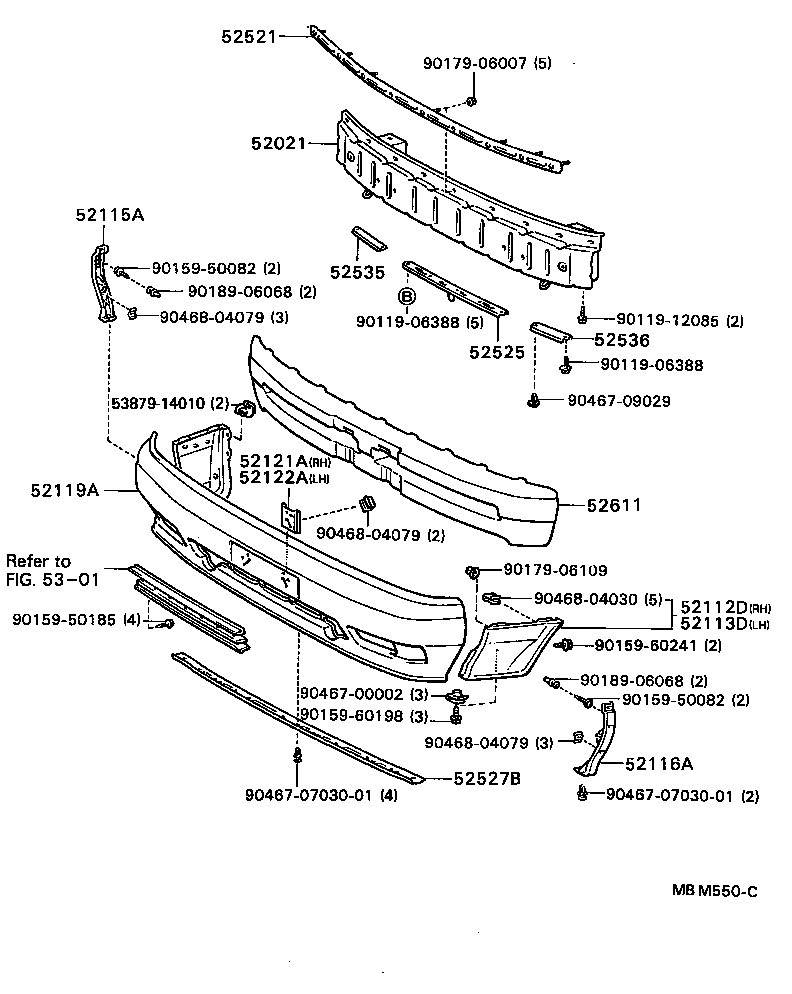

Click highlighted areas on diagram

diagram 52021 52112D 52113D 52115A 52116A 52119A 52121A 52122A 52521 52525 52527B 52535 52536 52611 5301 5387914010 9011906388 9011906388 9011912085 9015950082 9015950082 9015950185 9015960198 9015960241 9017906007 9017906109 9018906068 9018906068 9046700002 904670703001 904670703001 9046709029 9046804030 9046804079 9046804079 9046804079
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20170

ST165

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-2007033

ST165

GRAY M,168

 1
52102-2007012

ST165

SUPER RED 2,3E5

 1
52102-2007008

ST165

SUPER WHITE 2,040

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-2012012

ST165

SUPER RED 2,3E5

 1
52103-2012033

ST165

GRAY M,168

 1
52103-2012008

ST165

SUPER WHITE 2,040

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20210

ST165

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20190

ST165

 1
52119A - COVER, FRONT BUMPER
52119-2037012

ST165

SUPER RED 2,3E5

 1
52119-2037008

ST165

SUPER WHITE 2,040

 1
52119-2037033

ST165

GRAY M,168

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-14090

ST165

 1
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52122-14010

ST165

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20070

ST16#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20110

ST165

 1
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-20030

ST165

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20030

ST165

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20030

ST165

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20100

ST165

 1
Common parts
53879-14010
90119-06388
90119-12085
90159-50082
90159-50185
90159-60198
90159-60241
90179-06007
90179-06109
90189-06068
90467-00002
90467-0703001
90467-09029
90468-04030
90468-04079
Linked diagrams
5301
