ST165-BLMVZ (1987)
Toyota Celica
Production
Oct 1987
-
Aug 1989
Engine
3SGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )ST165

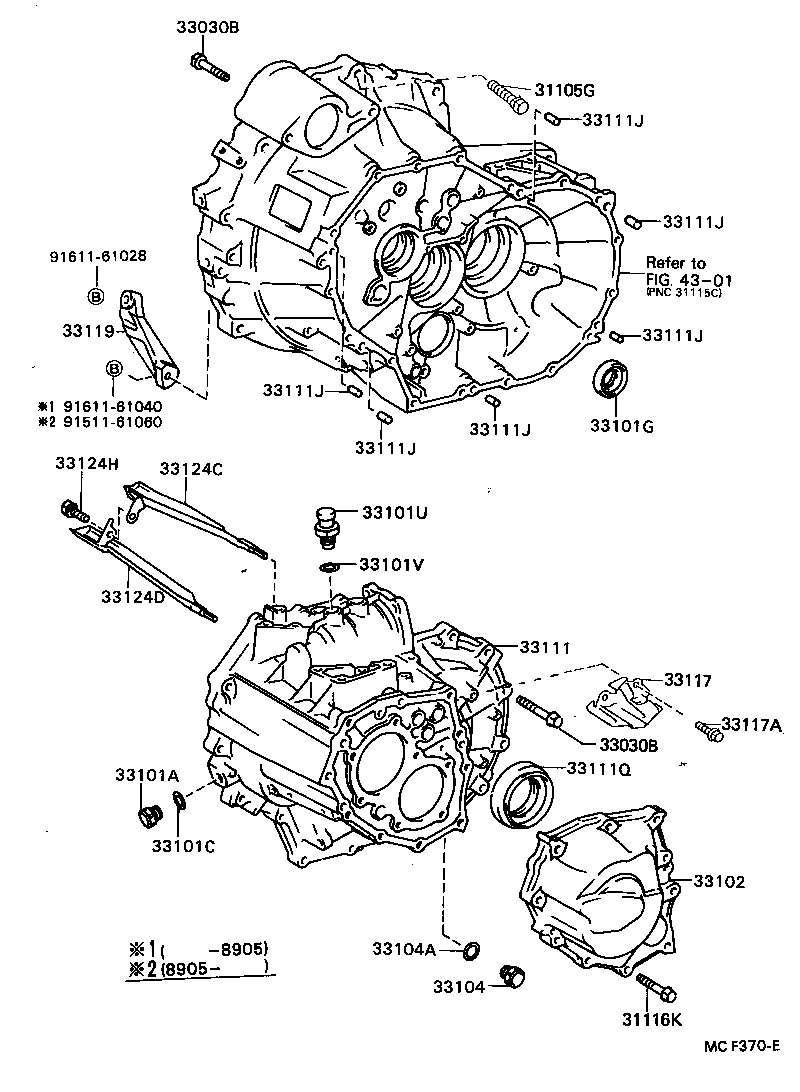

Click highlighted areas on diagram
E50F2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
ST16#..5F *10−1.25PX43−26 |
1 | ||
| 90105-10077 |
ST16#..5F *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
ST16#..5F *12−1.25PX55−30 |
3 | ||
| 90105-08040 |
ST16#..5F *8−1.25PX18−15 |
1 | ||
| 31116K - BOLT, WASHER BASED HEAD HEXAGON | ||||
| 90105-08089 |
ST165 |
10 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ST165 *8−1.25PX45−27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ST165 *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
ST165 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ST16#..5F |
1 | ||
| 33101G - SEAL, OIL(FOR INPUT FRONT) | ||||
| 90311-30006 |
ST165 |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03111 |
ST165 |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
ST165 |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-20040 |
ST165 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
ST16#..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ST16#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-20040 |
ST165 |
1 | ||
| 33101-20030 |
ST165 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST16#..5F 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST16#..5F 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST16#..5F 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST16#..5F 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST16#..5F 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST16#..5F 長さ=23,外径=8 |
6 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-50010 |
ST165 |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
ST165 |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
ST16#..5F |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-20080 |
ST165 |
1 | ||
| 33119-20090 |
ST165 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20020 |
ST165 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-20030 |
ST165 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
ST165 |
1 | ||
| Common parts | ||||
| 91511-61060 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| Linked diagrams | ||||
| 4301 | ||||
