ST163-BLMEM (1988)

Toyota Celica

Production May 1988 - Aug 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )4SFI

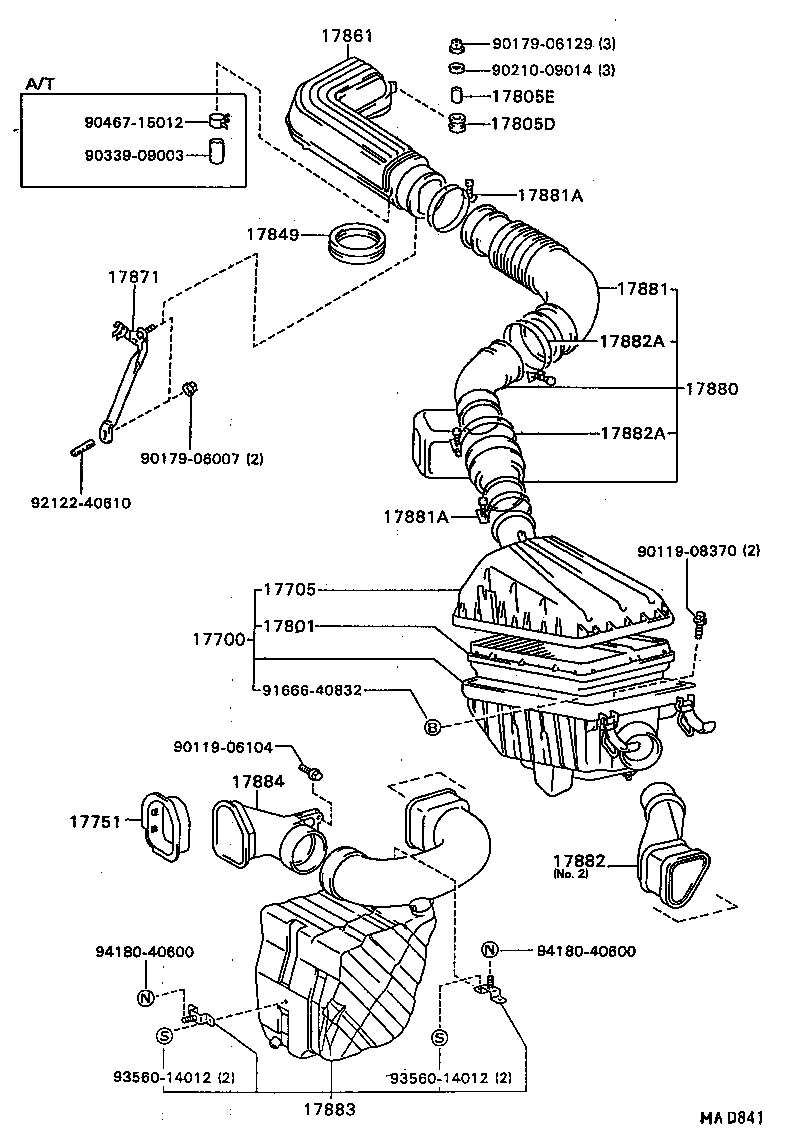

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17805D 17805E 17849 17861 17871 17880 17881 17881A 17881A 17882 17882A 17882A 17883 17884 9011906104 9011908370 9017906007 9017906129 9021009014 9033909003 9046715012 9166640832 9212240610 9356014012 9356014012 9418040600 9418040600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-63100

1SILU,4SFI..ST160,163

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63060

1SILU,4SFI..ST160,163

 1
17751 - INLET, AIR CLEANER, NO.1
53981-20010

3SFE,3SGTE,4SFI..ST162,163,165

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

1SILU,3SFE,4SFI..ST160,162,163

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12014

4SFI..ST163

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06040

4SFI..ST163

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-74010

4SFI..ST163

 1
17861 - CONNECTOR, INTAKE AIR
17861-74010

4SFI..ST163

 1
17871 - STAY, AIR CONNECTOR
17871-74010

4SFI..ST163

 1
17880 - HOSE ASSY, AIR CLEANER
17880-74100

4SFI..ST163

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74250

4SFI..ST163

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFI..ST163

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFI..ST163

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-74090

3SFE,4SFI..ST162,163

NO.2

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

4SFI..ST163

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

4SFI..ST163

 2
17883 - HOSE, AIR CLEANER, NO.3
17880-74040

3SFE,4SFI..ST162,163

 1
17884 - HOSE, AIR CLEANER, NO.4
17884-74010

3SFE,3SGTE,4SFI..ST162,163,165

 1
Common parts
90119-06104
90119-08370
90179-06007
90179-06129
90210-09014
90339-09003
90467-15012
91666-40832
92122-40610
93560-14012
94180-40600
