ST162C-BKPGK (1987)
Toyota Celica
Production
Oct 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )CV

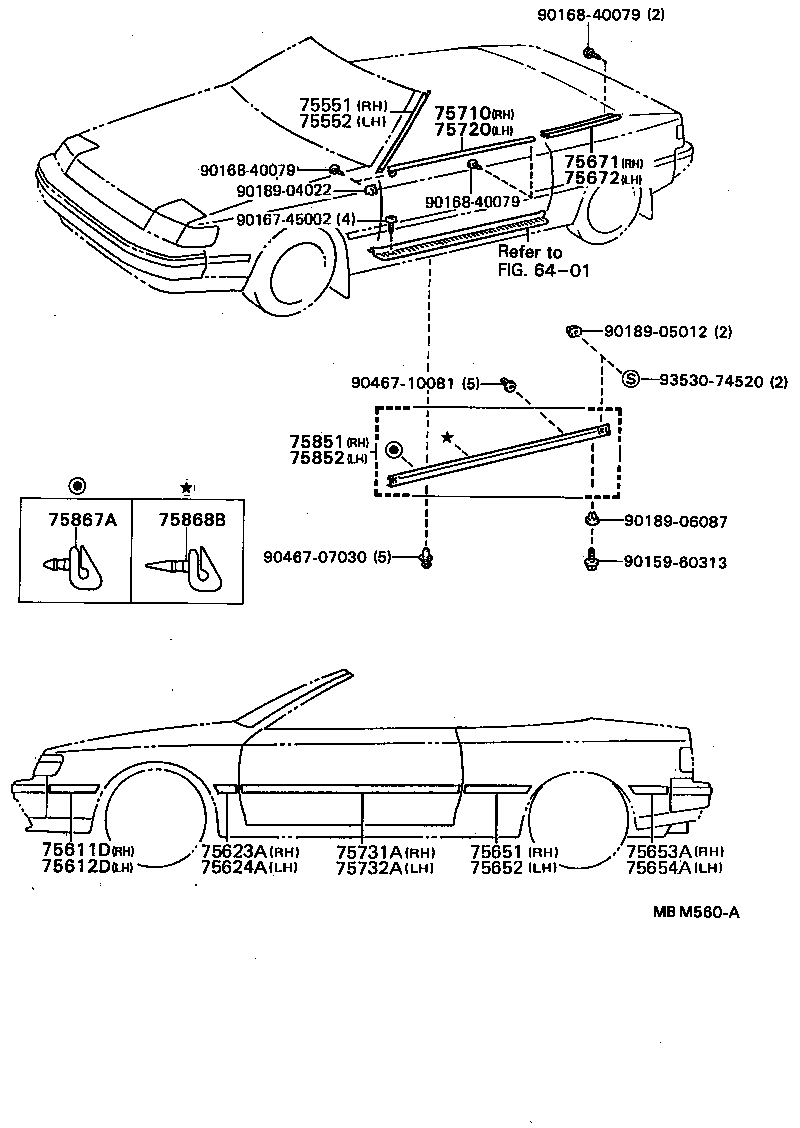

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-20270 |
ST16# |
1 | ||
| 75551-20290 |
ST162..CV |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-20270 |
ST16# |
1 | ||
| 75552-20290 |
ST162..CV |
1 | ||
| 75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH | ||||
| 75611-20220 |
ST160,162,163 |
1 | ||
| 75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH | ||||
| 75612-20190 |
ST160,162,163 |
1 | ||
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-20080 |
ST160,162,163 |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-20080 |
ST160,162,163 |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-20210 |
ST160,162,163 |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-20200 |
ST160,162,163 |
1 | ||
| 75653A - MOULDING, QUARTER, OUTSIDE REAR RH | ||||
| 75653-20180 |
ST162..CV |
1 | ||
| 75654A - MOULDING, QUARTER, OUTSIDE REAR LH | ||||
| 75654-20170 |
ST162..CV |
1 | ||
| 75671 - MOULDING, QUARTER BELT, RH | ||||
| 75660-20030 |
ST162..CV |
1 | ||
| 75672 - MOULDING, QUARTER BELT, LH | ||||
| 75670-20010 |
ST162..CV |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-20290 |
ST162..CV |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-20290 |
ST162..CV |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-20230 |
ST160,162,163 |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-20230 |
ST160,162,163 |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75850-20140 |
ST162,165..CV,GT4 |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75860-20100 |
ST162,165..CV,GT4 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20060 |
ST162,165..CV,GT4 TYPE B |
8 | ||
| 75868B - CLIP, ROCKER PANEL MOULDING, NO.2 | ||||
| 75868-20010 |
ST162,165..CV,GT4 |
2 | ||
| Common parts | ||||
| 90159-60313 | ||||
| 90167-45002 | ||||
| 90168-40079 | ||||
| 90189-04022 | ||||
| 90189-05012 | ||||
| 90189-06087 | ||||
| 90467-07030 | ||||
| 90467-10081 | ||||
| 93530-74520 | ||||
| Linked diagrams | ||||
| 6401 | ||||
