ST162-BLPVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

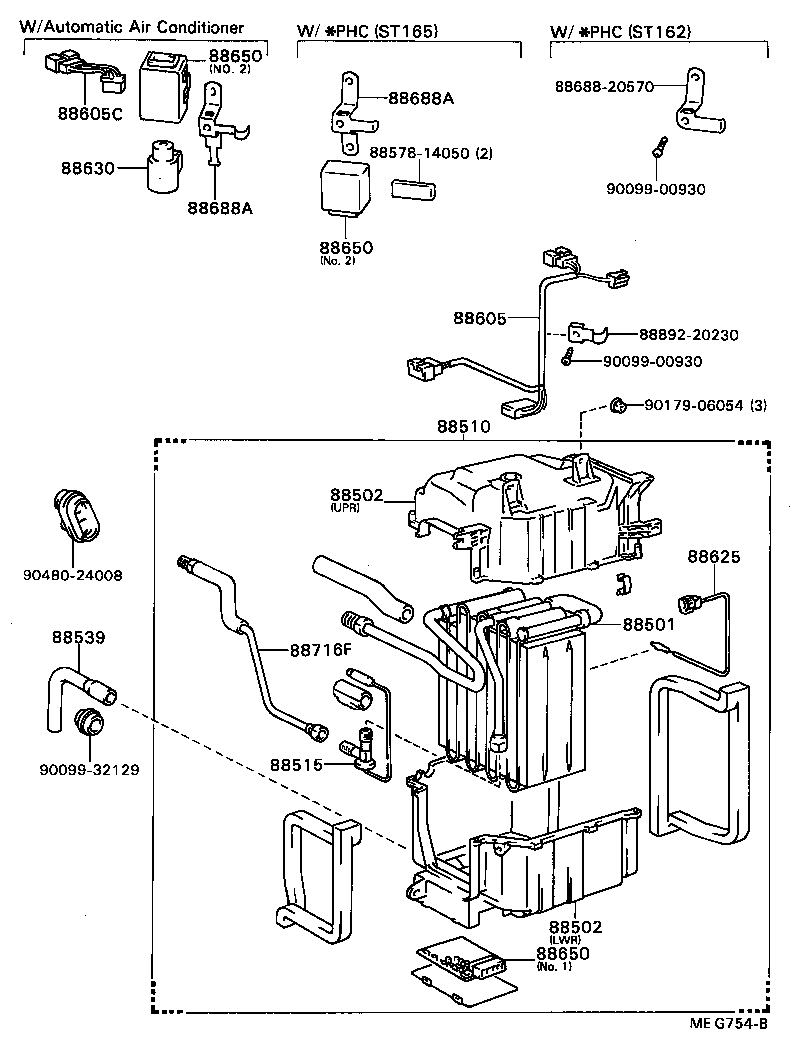

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88515 88539 8857814050 88605 88605C 88625 88630 88650 88650 88650 8868820570 88688A 88688A 88716F 8889220230 9009900930 9009900930 9009932129 9017906054 9048024008
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20200

AT160,ST16#

 1
88501-20201

AT160,ST160,162

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20100

AT160,ST16#

LWR

 1
88502-20090

AT160,ST16#

UPR

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20100

AT160,ST16#

LWR

 1
88502-20090

AT160,ST16#

UPR

 1
88510 - UNIT ASSY, COOLER
88510-20470

ST16#

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

AT160,ST16#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20130

AT160,ST16#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-20680

ST160,162

W/*AAC

 1
88605-20600

ST162

W/*PHC

 1
88605-20670

ST160,162

 1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-20630

ST162,165

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

AT160,ST16#

 1
88630 - RELAY ASSY, COOLER
88630-95702

AT160,ST160,162

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20320

AT160,ST160,162

W/*AAC,NO.2

 1
88650-20261

ST16#

NO.1

 1
88650-20260

ST16#

NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20320

AT160,ST160,162

W/*AAC,NO.2

 1
88650-20261

ST16#

NO.1

 1
88650-20260

ST16#

NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20320

AT160,ST160,162

W/*AAC,NO.2

 1
88650-20261

ST16#

NO.1

 1
88650-20260

ST16#

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-20670

AT160,ST160,162

W/*AAC

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-20670

AT160,ST160,162

W/*AAC

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-2B040

AT160,ST16#

 1
Common parts
88578-14050
88688-20570
88892-20230
90099-00930
90099-32129
90179-06054
90480-24008
