ST162-BLPVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

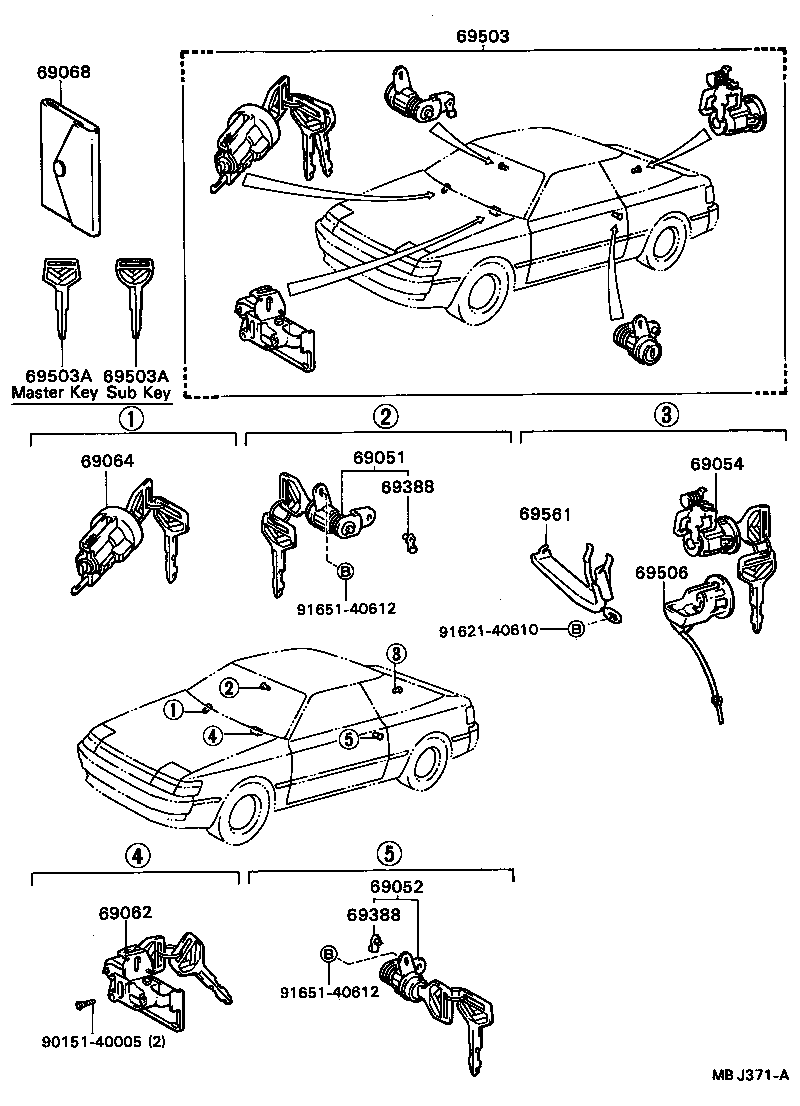

Click highlighted areas on diagram

diagram 69051 69052 69054 69062 69064 69068 69388 69388 69503 69503A 69503A 69506 69561 9015140005 9162140610 9165140612 9165140612
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-20130

AT160,ST16#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-20130

AT160,ST16#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-20180

AT160,ST16#

 1
69055-20181

AT160,ST16#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-20070

AT160,ST16#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-20070

AT160,ST160,162

W/O *EL

 1
69057-20080

AT160,ST16#..GT,GT4,SX

W/*EL

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AT160,ST16#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-30040

AT160,ST16#

RH

 1
69759-30050

AT160,ST16#

LH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-30040

AT160,ST16#

RH

 1
69759-30050

AT160,ST16#

LH

 1
69503 - CYLINDER SET, LOCK
69005-20460

AT160,ST16#..GT,SX

W/*EL

 1
69005-20470

AT160,ST16#

W/O *EL

 1
69005-20471

AT160,ST160,162

W/O *EL

 1
69005-20461

AT160,ST16#..GT,GT4,SX

W/*EL

 1
69503A - KEY, BLANK
90999-00114

AT160,ST16#

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00112

AT160,ST16#

ﾏｽﾀｰｷｰ,MASTER KEY

 1
90999-00113

AT160,ST16#

ﾏｽﾀｰｷｰ,*68付き,MASTER KEY,W/PROTECTOR

 1
69503A - KEY, BLANK
90999-00114

AT160,ST16#

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00112

AT160,ST16#

ﾏｽﾀｰｷｰ,MASTER KEY

 1
90999-00113

AT160,ST16#

ﾏｽﾀｰｷｰ,*68付き,MASTER KEY,W/PROTECTOR

 1
69506 - HOSE ASSY, BACK DOOR LOCK CYLINDER
69506-20010

AT160,ST16#

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69501-20030

AT160,ST16#

 1
Common parts
90151-40005
91621-40610
91651-40612
