ST162-BLPVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

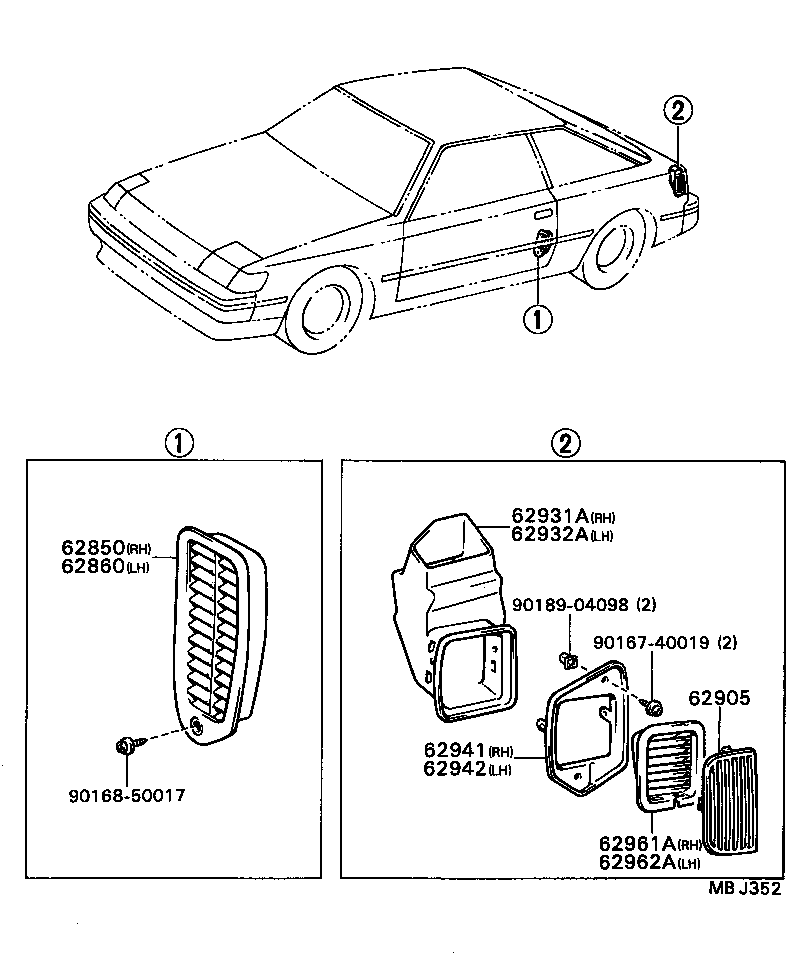

Click highlighted areas on diagram

diagram 62850 62860 62905 62931A 62932A 62941 62942 62961A 62962A 9016740019 9016850017 9018904098
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-20030

AT160,ST16#

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-20040

AT160,ST16#

 1
62905 - LOUVER, QUARTER VENTILATION
62952-20120

AT160,ST16#

LH

 1
62951-20150

AT160,ST16#

RH

 1
62931A - DUCT, QUARTER VENT, RH
62931-20100

AT160,ST16#

 1
62932A - DUCT, QUARTER VENT, LH
62932-20090

AT160,ST16#

 1
62941 - RETAINER, ROOF SIDE VENT DUCT, RH
62941-20030

AT160,ST16#

 1
62942 - RETAINER, ROOF SIDE VENT DUCT, LH
62942-20020

AT160,ST16#

 1
62961A - GRILLE, ROOM VENT, RH
62961-20010

AT160,ST16#

 1
62962A - GRILLE, ROOM VENT, LH
62962-20010

AT160,ST16#

 1
Common parts
90167-40019
90168-50017
90189-04098
