ST162-BLPVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

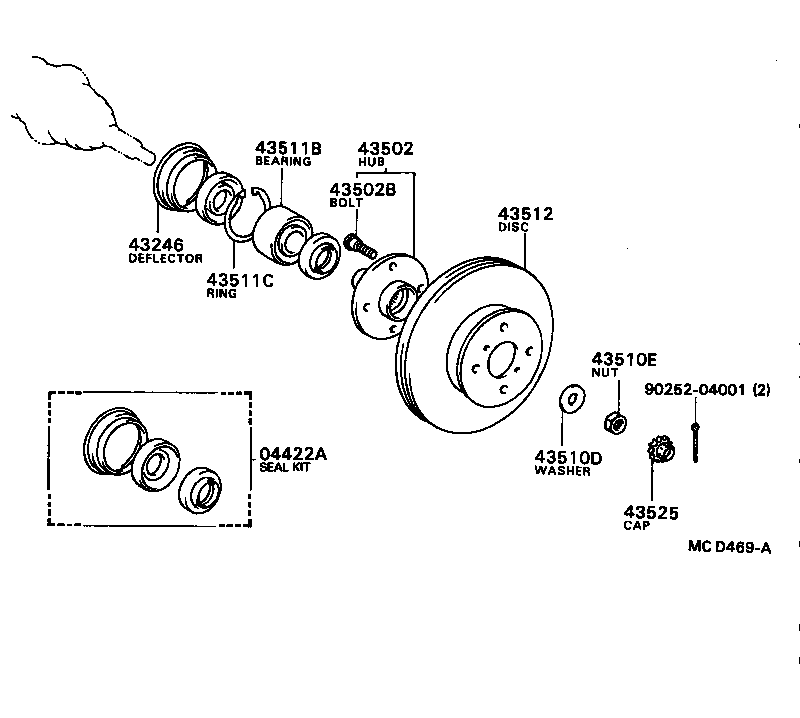

Click highlighted areas on diagram

diagram 04422A 43246 43502 43502B 43510D 43510E 43511B 43511C 43512 43525 9025204001
Part # Description Qty Price
04422A - SEAL KIT, FRONT AXLE OIL
04422-20010

AT160,ST16#

 2
43246 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1
43246-20010

AT160,ST16#

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-32010

AT160,ST162

 2
43502-20040

AT160,ST162,165

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

AT160,ST16#

 10
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90201-20012

AT160,ST16#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19001

AT160,ST160,162

 2
43511B - BEARING (FOR FRONT AXLE HUB)
90369-38003

AT160,ST16#

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-79002

AT160,ST16#

外径=79

 2
43512 - DISC, FRONT
43512-20120

AT160,ST162

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

AT160,ST16#

 2
Common parts
90252-04001
