ST162-BLPVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

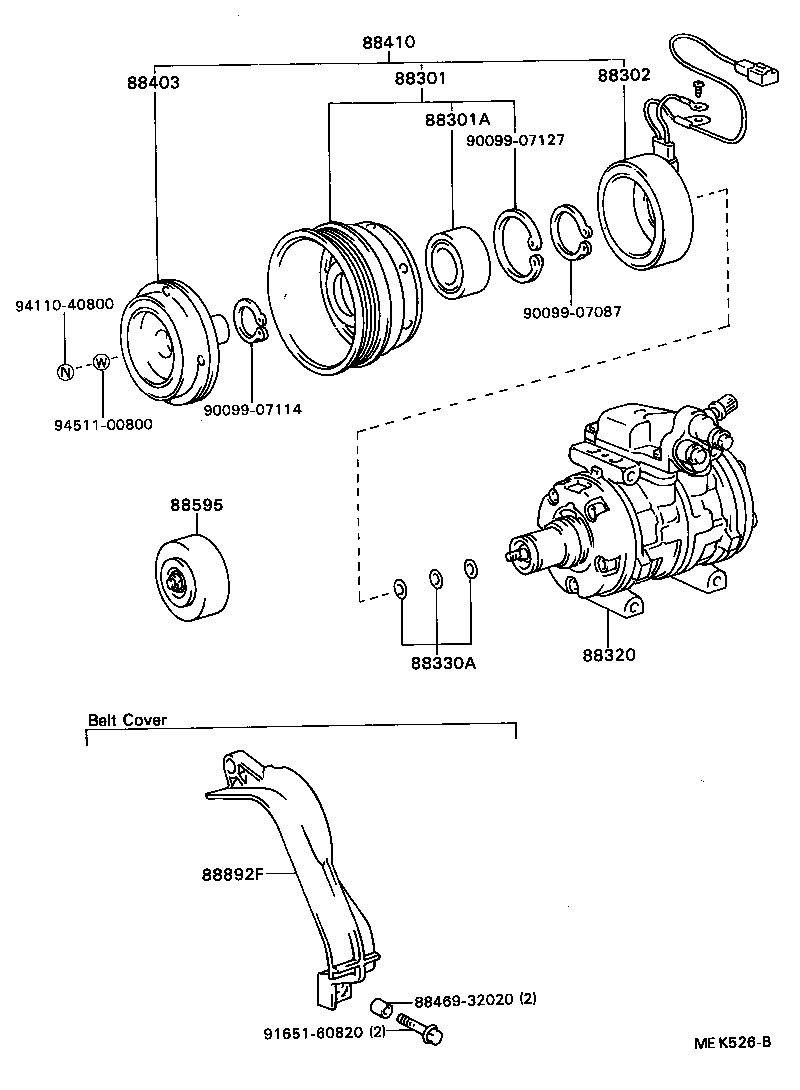

Click highlighted areas on diagram

diagram 88301 88301A 88302 88320 88330A 88403 88410 8846932020 88595 88892F 9009907087 9009907114 9009907127 9165160820 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32011

ST16#

 1
88301A - BEARING (FOR MAGNET CLUTCH)
90099-10133

ST16#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14090

ST16#

 1
88411-20170

ST16#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-20500

ST160,162,163

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

ST16#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

ST16#

 1
88410 - CLUTCH ASSY, MAGNET
88410-20360

ST16#

 1
88410-14170

ST16#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20110

ST162,165..GT,GT4

 1
88892F - COVER, COOLER COMPRESSOR
88892-32051

ST162..4FC..GT

 1
Common parts
88469-32020
90099-07087
90099-07114
90099-07127
91651-60820
94110-40800
94511-00800
