ST162-BLPVF (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

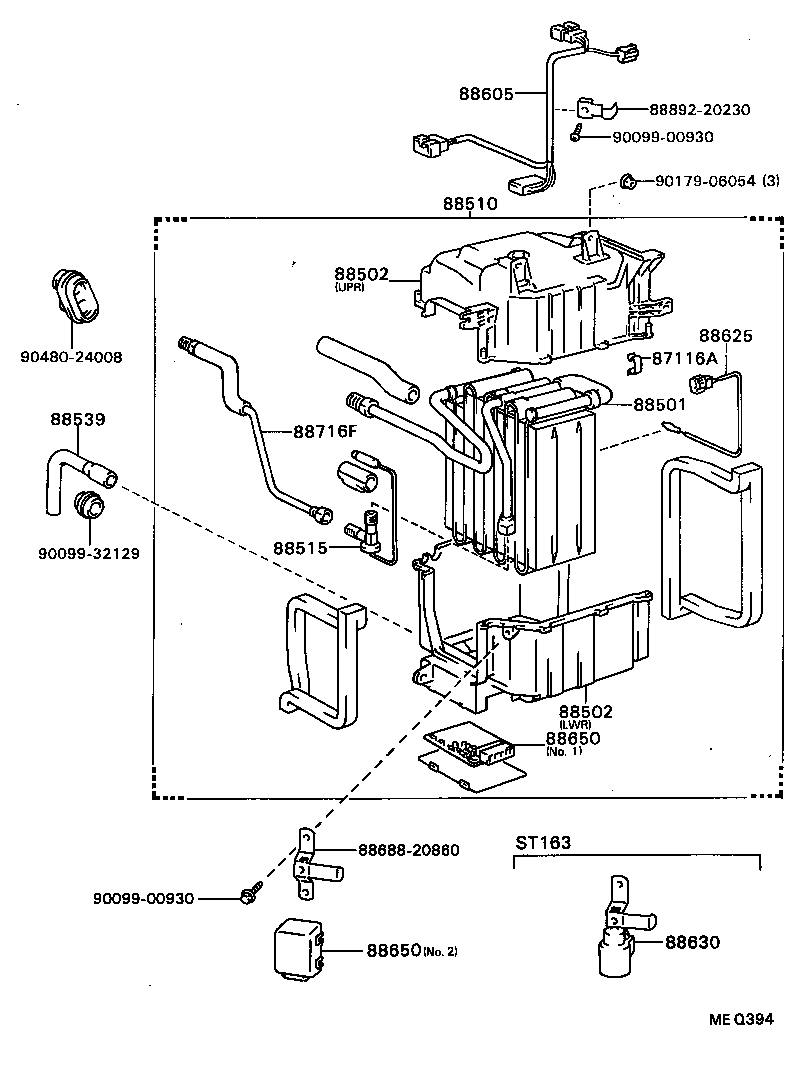

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
ST165;ST162..4FC..GT |
3 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20201 |
ST16# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20090 |
ST16# 上側 |
1 | ||
| 88502-20100 |
ST16# 下側 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20090 |
ST16# 上側 |
1 | ||
| 88502-20100 |
ST16# 下側 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20560 |
ST160,162,165..GT,GT4,ST,SX |
1 | ||
| 88510-20550 |
ST162,163..CV,ST,SX,ZR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
ST16# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22110 |
ST16# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20601 |
ST162 |
1 | ||
| 88605-20601 |
ST162..GT |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
ST16# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20370 |
ST160,162,165..GT,GT4,ST,SX NO.1 |
1 | ||
| 88650-20350 |
ST162,163..CV,ST,SX,ZR NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20370 |
ST160,162,165..GT,GT4,ST,SX NO.1 |
1 | ||
| 88650-20350 |
ST162,163..CV,ST,SX,ZR NO.1 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-2B040 |
ST16# |
1 | ||
| Common parts | ||||
| 88688-20860 | ||||
| 88892-20230 | ||||
| 90099-00930 | ||||
| 90099-32129 | ||||
| 90179-06054 | ||||
| 90480-24008 | ||||
