ST162-BLPVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

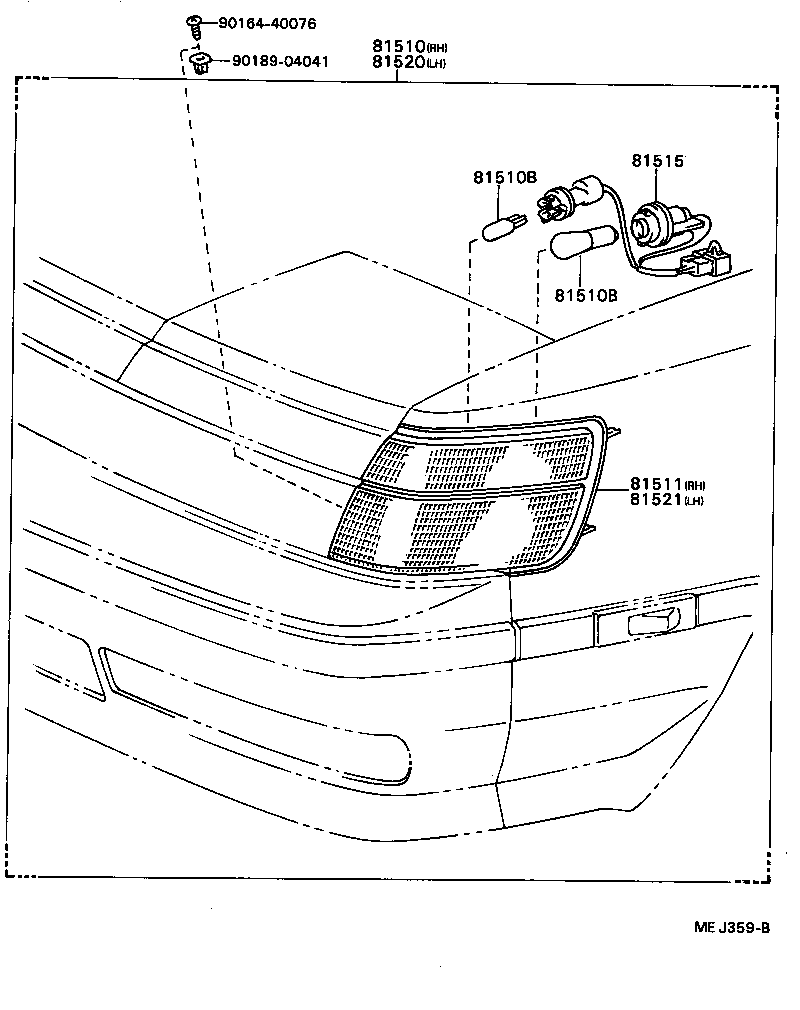

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81520 81521 9016440076 9018904041
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20341

ST16#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

ST16#

12V 21W,TURN

 2
99132-12050

ST16#

12V 5W,PARKING

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

ST16#

12V 21W,TURN

 2
99132-12050

ST16#

12V 5W,PARKING

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20341

ST16#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-20340

ST16#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20341

ST16#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20341

ST16#

 1
Common parts
90164-40076
90189-04041
