ST162-BLPVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

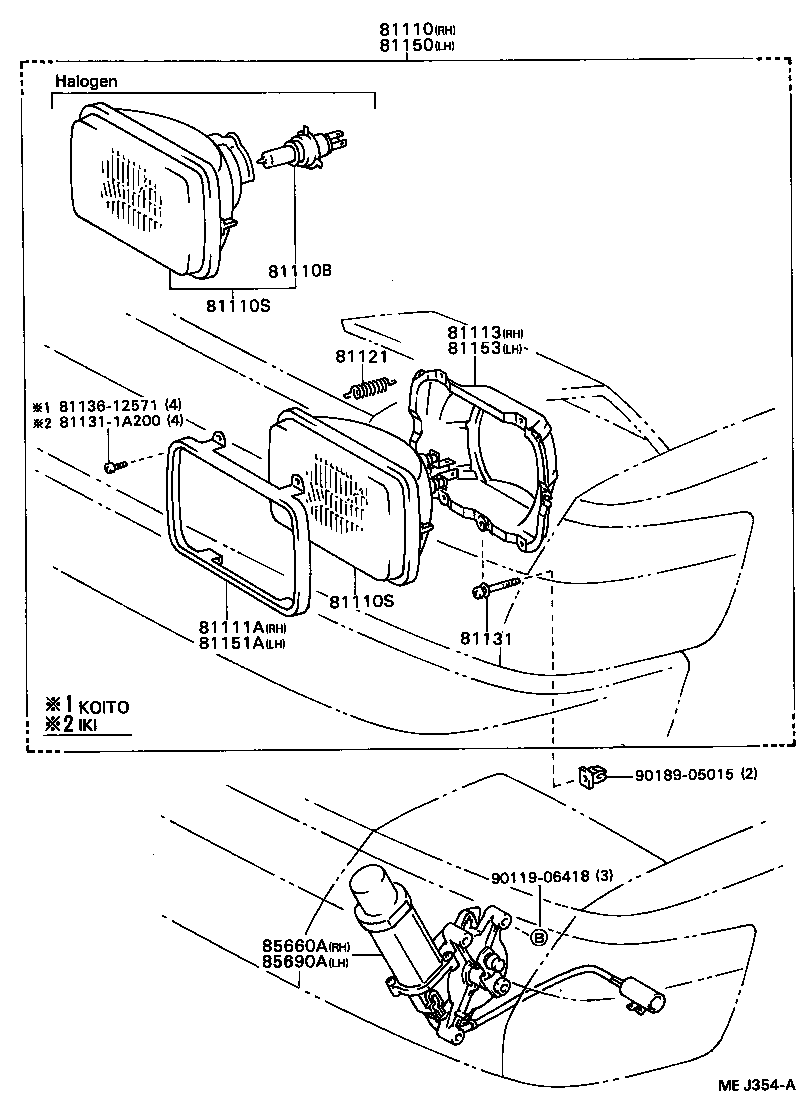

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111A 81113 81121 81131 811311A200 8113612571 81150 81151A 81153 85660A 85690A 9011906418 9018905015
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-17020

ST16#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

ST16#

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04030

ST16#

12V 60/55W,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04030

ST16#

12V 60/55W,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-17010

ST16#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-17010

ST16#

 1
81121 - SPRING, HEADLAMP TENSION
81121-17010

ST16#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-17010

ST16#

 4
81150 - HEADLAMP ASSY, LH
81150-17020

ST16#

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-17010

ST16#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-17010

ST16#

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-20020

ST16#

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-20020

ST16#

 1
Common parts
81131-1A200
81136-12571
90119-06418
90189-05015
