ST162-BLPVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

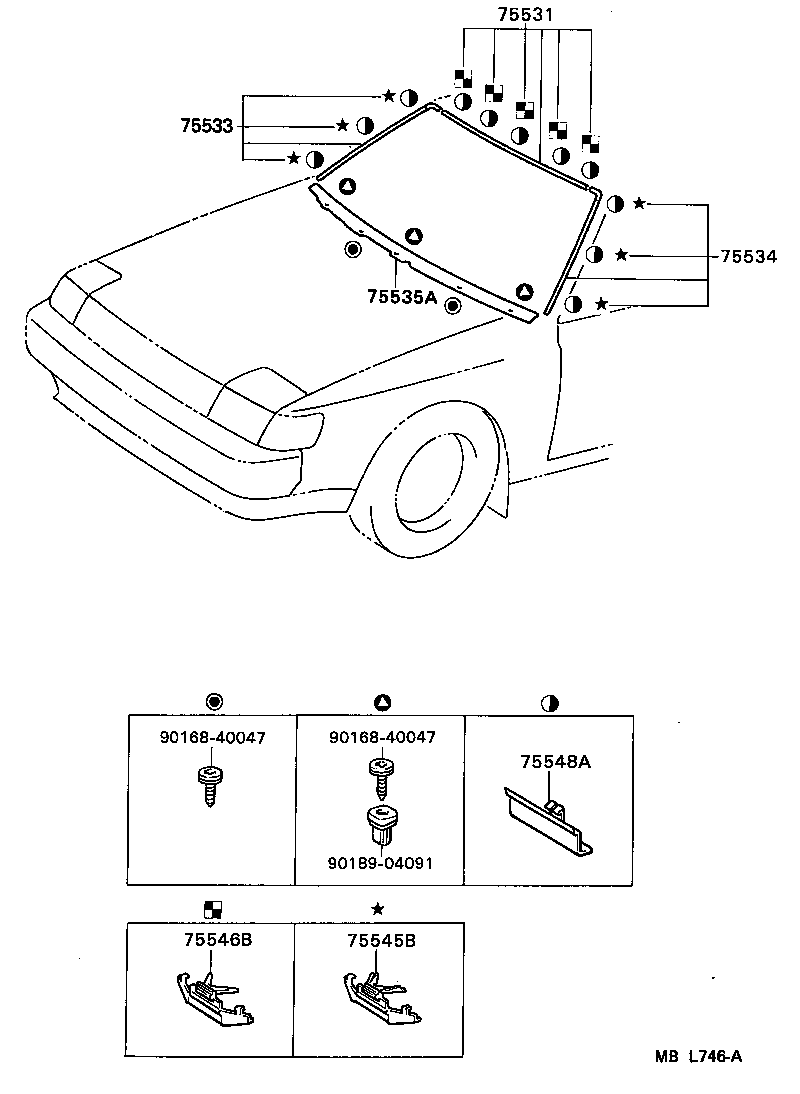

Click highlighted areas on diagram

diagram 75531 75533 75534 75535A 75545B 75546B 75548A 9016840047 9016840047 9018904091
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-20230

ST16#

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-20250

ST16#

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-20260

ST16#

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75535-20160

ST16#

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-20070

ST16#

 6
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-20060

ST16#

 5
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20060

ST16#

 11
Common parts
90168-40047
90189-04091
