ST162-BLPVF (1987)
Toyota Celica

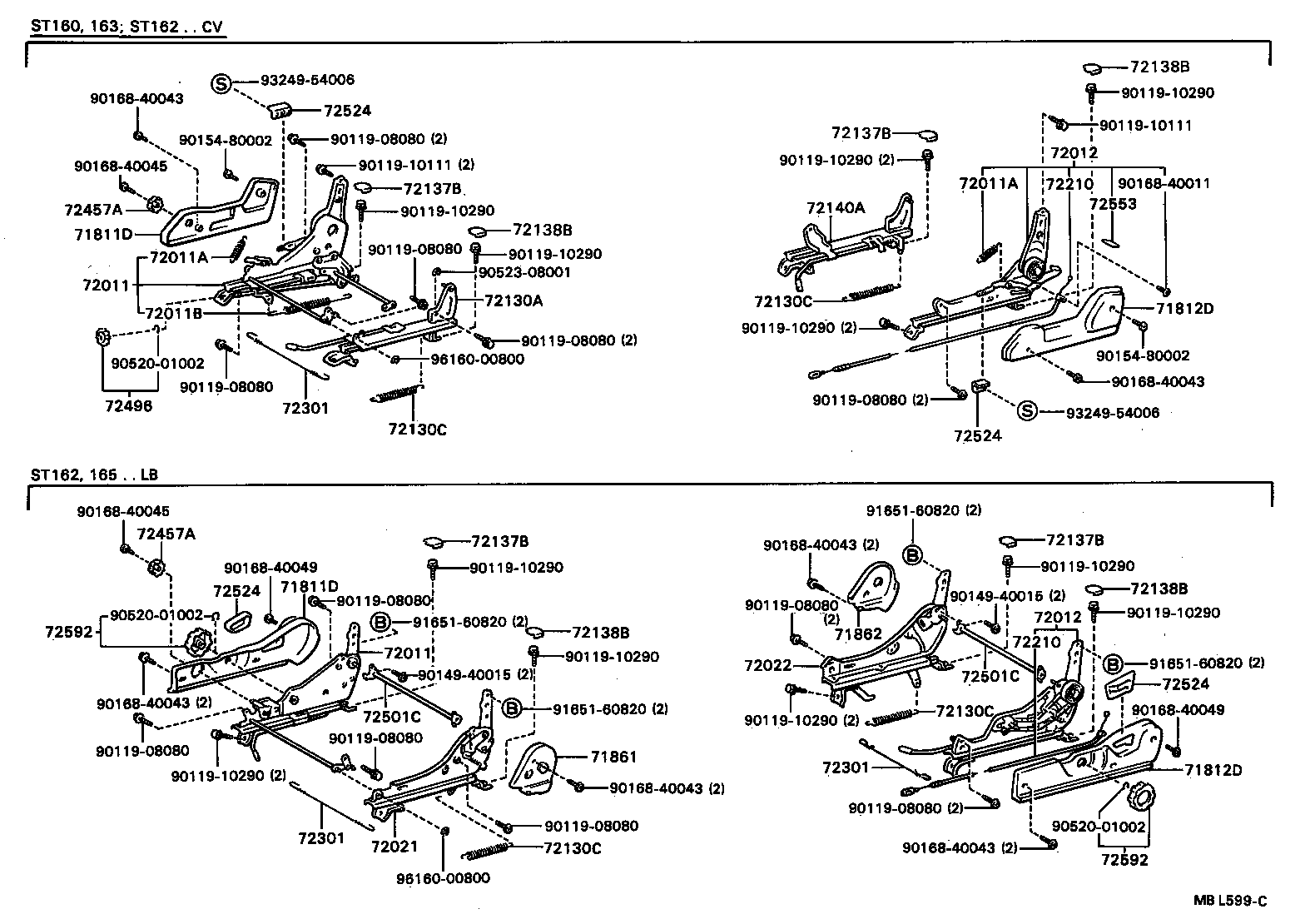

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2013001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71811-2013004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71811-1701011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2013001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71811-2013004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71811-1701011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71812-2010001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71812-2010004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71812-2010001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71812-2010004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2003001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71861-2003004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2003001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71862-2003004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20011 |
ST162..LB |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20011 |
ST162..LB |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20021 |
ST162..LB |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20021 |
ST162..LB |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20011 |
ST162..LB |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20011 |
ST162..LB |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20250 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20180 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20020 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72210-20040 |
ST162,165..LB |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20020 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72210-20040 |
ST162,165..LB |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST160,162,163 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST160,162,163 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST160,162,163 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701011 |
ST16# BLACK,TRIM2# |
1 | ||
| 72457-1701004 |
ST163..4FC;ST160,162..LB;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701011 |
ST16# BLACK,TRIM2# |
1 | ||
| 72457-1701004 |
ST163..4FC;ST160,162..LB;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72496-3201001 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
ST162,165..LB |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
ST162,165..LB |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006001 |
ST162,165..LB BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..LB DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-2005004 |
ST162..LB DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72526-2005001 |
ST162,165..LB BLACK,TRIM2#,左側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006001 |
ST162,165..LB BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..LB DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-2005004 |
ST162..LB DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72526-2005001 |
ST162,165..LB BLACK,TRIM2#,左側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006001 |
ST162,165..LB BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..LB DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-2005004 |
ST162..LB DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72526-2005001 |
ST162,165..LB BLACK,TRIM2#,左側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006001 |
ST162,165..LB BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..LB DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-2005004 |
ST162..LB DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72526-2005001 |
ST162,165..LB BLACK,TRIM2#,左側 |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 72592-2001004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001001 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 72592-2001004 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10290 | ||||
| 90149-40015 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||

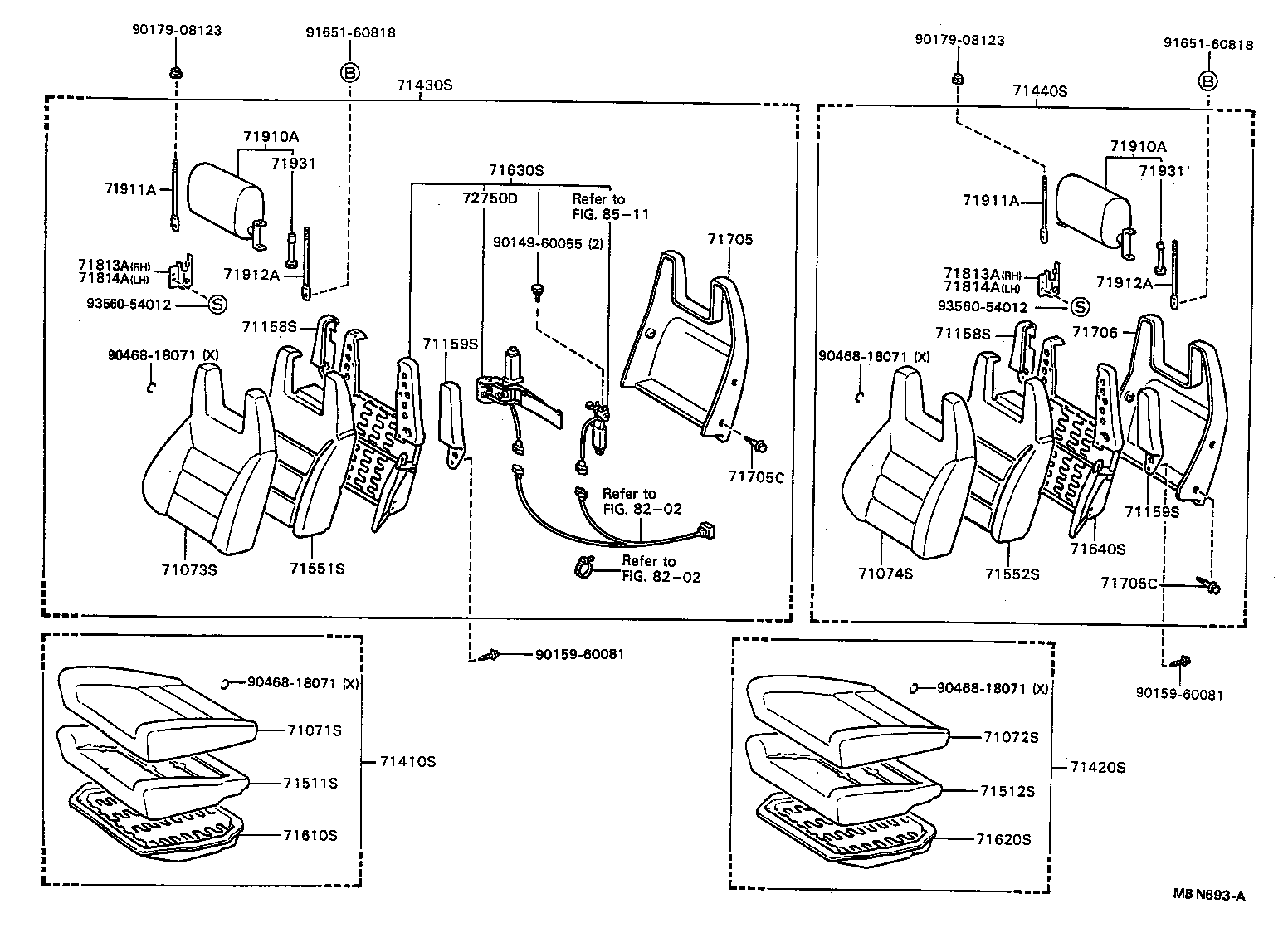

ILLUST NO. 1 OF 2(8708- )ST162,165..LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B83013 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,GRAY,TRIM2# |
1 | ||
| 71071-2B79203 |
ST162..GT GT-R,GRAY,TRIM2# |
1 | ||
| 71071-2B59203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71071-2B59204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B79204 |
ST162..GT GT-R,DEEP BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B27013 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,GRAY,TRIM2# |
1 | ||
| 71072-2B22203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71072-2B22204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B76013 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,GRAY,TRIM2# |
1 | ||
| 71073-2B53203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71073-2B53204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B43013 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,GRAY,TRIM2# |
1 | ||
| 71074-2B15204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B15203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
ST162,165..LB |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
ST162,165..LB |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
ST162,165..LB |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
ST162,165..LB |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B86204 |
ST162..GT GT-R,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B86203 |
ST162..GT GT-R,GRAY,TRIM2# |
1 | ||
| 71410-2B68204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B68203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B15203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71420-2B15204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B66204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B66203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71430-2B67203 |
ST162..GT GT-R,GRAY,TRIM2# |
1 | ||
| 71430-2B67204 |
ST162..GT GT-R,DEEP BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B41203 |
ST162..LB GRAY,TRIM2# |
1 | ||
| 71440-2B41204 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71511-20410 |
ST162,165..LB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71511-20410 |
ST162,165..LB |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
ST162,165..LB |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
ST162,165..LB |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20380 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71610-20350 |
ST162,165..LB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20300 |
ST162,165..LB |
1 | ||
| 71610-20270 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20430 |
ST162..GT GT-R |
1 | ||
| 71630-20420 |
ST162..LB |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20420 |
ST162,165..LB |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2007104 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71705-2007101 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004301 |
ST162,165..LB BLACK,TRIM2# |
8 | ||
| 90149-5004304 |
ST162..LB DEEP BLUE,TRIM8# |
8 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004301 |
ST162,165..LB BLACK,TRIM2# |
8 | ||
| 90149-5004304 |
ST162..LB DEEP BLUE,TRIM8# |
8 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2007101 |
ST162,165..LB BLACK,TRIM2# |
1 | ||
| 71705-2007104 |
ST162..LB DEEP BLUE,TRIM8# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001011 |
ST162 BLACK,TRIM2# |
2 | ||
| 71813-2001004 |
ST162..LB DEEP BLUE,TRIM8# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001011 |
ST162 BLACK,TRIM2# |
2 | ||
| 71813-2001004 |
ST162..LB DEEP BLUE,TRIM8# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
ST162..LB DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001011 |
ST162 BLACK,TRIM2# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
ST162..LB DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001011 |
ST162 BLACK,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2080001 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2054104 |
ST162..LB DEEP BLUE,TRIM8# |
2 | ||
| 71910-2054101 |
ST162..LB BLACK,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2080001 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2054104 |
ST162..LB DEEP BLUE,TRIM8# |
2 | ||
| 71910-2054101 |
ST162..LB BLACK,TRIM2# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
ST162..LB |
2 | ||
| 71911-14050 |
ST162..GT GT-R |
1 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
ST162..LB |
2 | ||
| 71911-14050 |
ST162..GT GT-R |
1 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
ST162..LB |
2 | ||
| 71912-14070 |
ST162..GT GT-R |
1 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
ST162..LB |
2 | ||
| 71912-14070 |
ST162..GT GT-R |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1401001 |
ST162,165..LB ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-1401014 |
ST162..LB ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
ST162,165..LB ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
ST160,162,163..CV,ST,SX ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1408014 |
ST162..LB ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
ST160,162,163..CV,ST,SX ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1401001 |
ST162,165..LB ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-1401014 |
ST162..LB ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
ST162,165..LB ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
ST160,162,163..CV,ST,SX ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1408014 |
ST162..LB ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
ST160,162,163..CV,ST,SX ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20070 |
ST162..GT |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 90468-18071 | ||||
| 91651-60818 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
