ST162-BLPVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

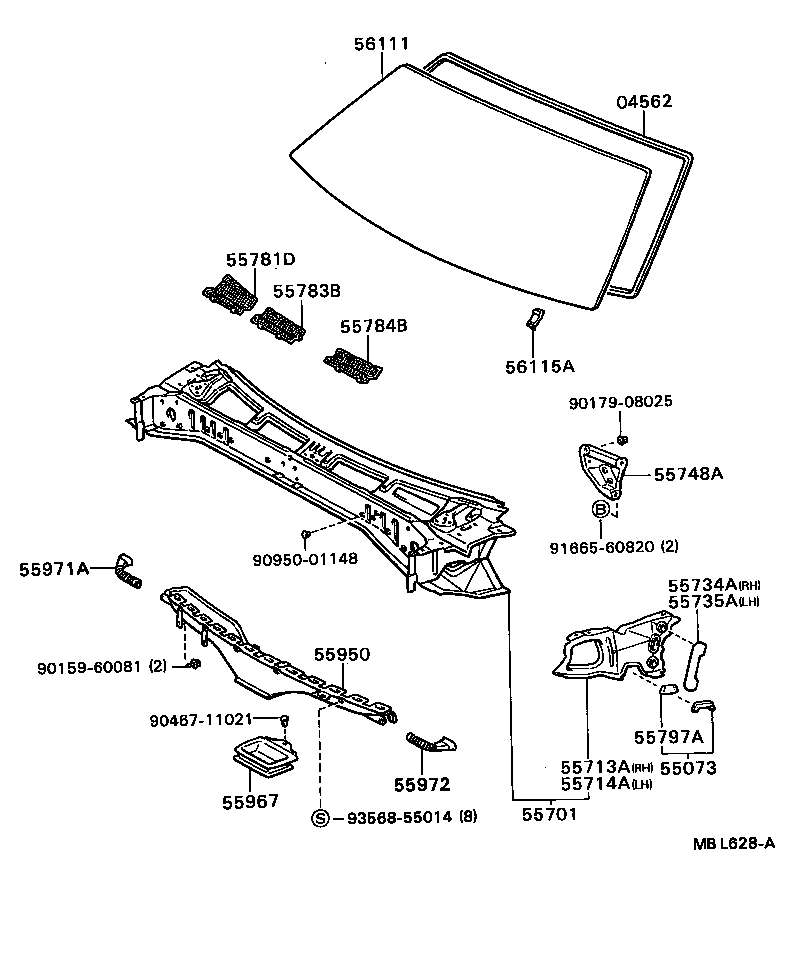

Click highlighted areas on diagram

diagram 04562 55073 55701 55713A 55714A 55734A 55735A 55748A 55781D 55783B 55784B 55797A 55950 55967 55971A 55972 56111 56115A 9015960081 9017908025 9046711021 9095001148 9166560820 9356855014
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

ST16#

 1
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20020

ST16#

 2
55701 - PANEL SUB-ASSY, COWL
55700-20630

ST16#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-20080

ST16#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-20080

ST16#

 1
55734A - PLATE, WATER GUARD, RH
55734-20080

ST16#

 1
55735A - PLATE, WATER GUARD, LH
55734-20080

ST16#

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-20080

ST16#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-20130

ST16#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-20090

ST16#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-20060

ST16#

 1
55797A - SEAL, COWL WATER EXTRACT
55797-20030

ST16#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-20060

ST16#

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-20010

ST16#

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20070

ST16#

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-20050

ST16#

 1
56111 - GLASS, WINDSHIELD
56111-20480

ST162..GT

*TL,T=5.3

 1
56111-20460

ST160,162,163..GT,ST

*TL,T=5.3

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-20020

ST16#

 2
Common parts
90159-60081
90179-08025
90467-11021
90950-01148
91665-60820
93568-55014
