ST162-BLPVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

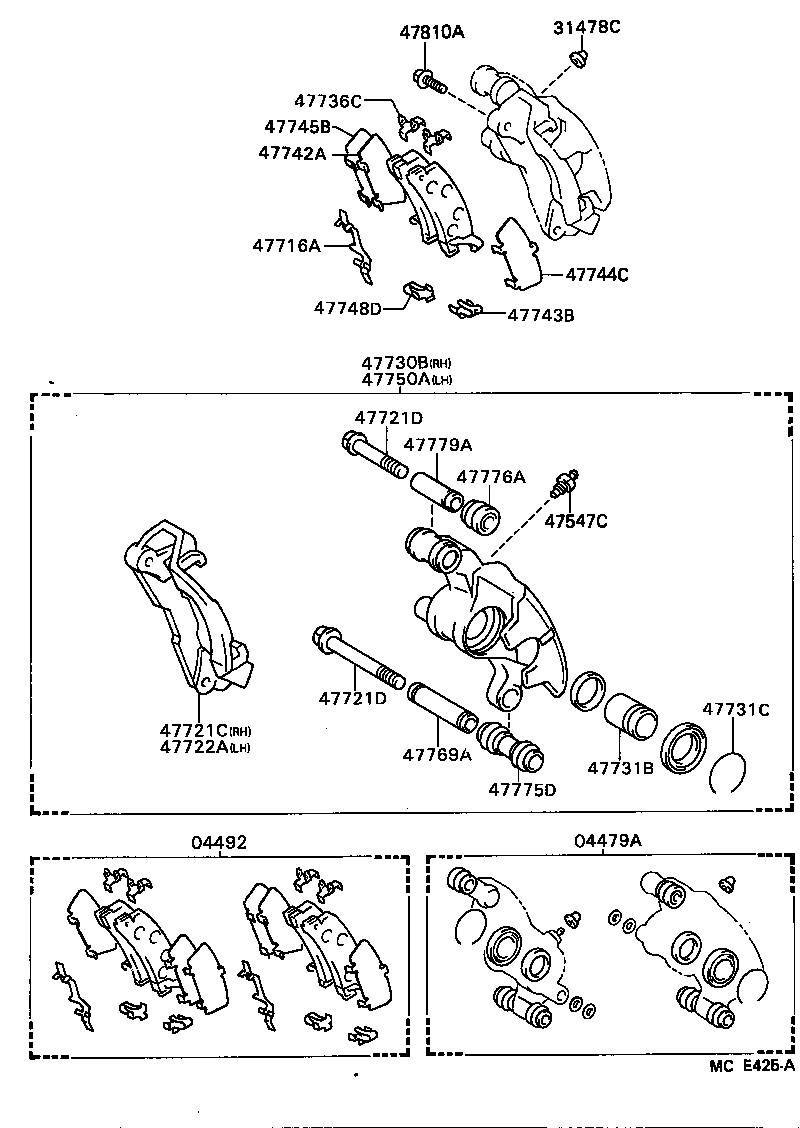

ILLUST NO. 1 OF 2(8708- )ST162..LB

Click highlighted areas on diagram

diagram 04479A 04492 31478C 47547C 47716A 47721C 47721D 47721D 47722A 47730B 47731B 47731C 47736C 47742A 47743B 47744C 47745B 47748D 47750A 47769A 47775D 47776A 47779A 47810A
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-20090

ST162..GT

 1
04479-20090

ST162..LB

 1
04492 - PAD KIT, DISC BRAKE, REAR
04492-20060

ST162..LB

 1
04492-20040

ST162..GT

 1
04492-20040

ST162..LB

 1
04492-20010

ST162..GT

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

ST162,165..LB

 2
31478-30010

ST162,165..GT,GT4

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ST162,165..LB

 2
47547-20010

ST162,165..GT,GT4

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-20060

ST162..GT

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-20130

ST162..GT

 1
47721-20130

ST162..LB

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90109-08098

ST162..GT

*8−1.25PX56−15

 2
90119-08431

ST162..LB

*8−1.25PX62−20

 2
90109-08098

ST162..LB

*8−1.25PX56−15

 2
90119-08431

ST162..GT

*8−1.25PX62−20

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90109-08098

ST162..GT

*8−1.25PX56−15

 2
90119-08431

ST162..LB

*8−1.25PX62−20

 2
90109-08098

ST162..LB

*8−1.25PX56−15

 2
90119-08431

ST162..GT

*8−1.25PX62−20

 2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-20130

ST162..GT

 1
47721-20130

ST162..LB

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-20230

ST162..LB

 1
47730-20230

ST162..GT

 1
47731B - PISTON, REAR DISC BRAKE
47731-20110

ST162..GT

 2
47731-20110

ST162..LB

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-45001

ST162..LB

 2
90522-45001

ST162..GT

 2
47736C - PLATE, REAR DISC BRAKE PAD GUIDE
47736-12030

ST162..GT

 4
47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47742-32031

ST162,165..GT,GT4

 2
47742-32031

ST162,165..LB

 2
47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-12060

ST162..GT

 4
47743-12030

ST162..GT

 2
47743-12060

ST162..LB

 4
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-12070

ST162..GT

 2
47744-12071

ST162..LB

 2
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-32030

ST162,165..LB

 2
47745-32030

ST162,165..GT,GT4

 2
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-12110

ST162..LB

 4
47748-12110

ST162..GT

 4
47748-12090

ST162..GT

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-20220

ST162..GT

 1
47750-20220

ST162..LB

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-28010

ST162..GT

 2
47769-28010

ST162..LB

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-14010

ST162..GT

 2
47775-14010

ST162..LB

 2
47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE)
47776-12010

ST162..GT

 2
47776-12010

ST162..LB

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-12010

ST162..GT

 2
47779-12010

ST162..LB

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10379

ST162..GT

 4
90119-10379

ST162..LB

 4

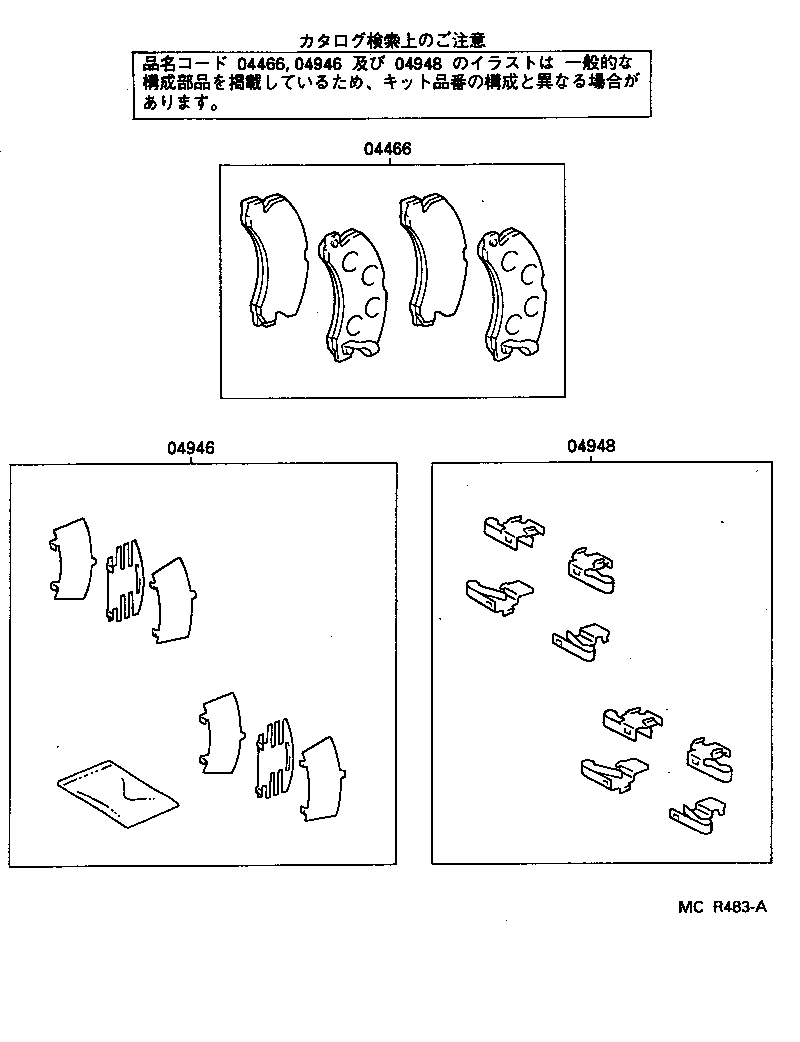

ILLUST NO. 2 OF 2(8708- )ST162,165..LB

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-33010

ST162..GT

ﾏｰｸ AK PA511

 1
04466-33010

ST162..LB

ﾏｰｸ AK PA511

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-32050

ST162..LB

 1
04946-32050

ST162..GT

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12010

ST162..GT

 1
04948-12010

ST162..LB

 1
