ST162-BLPVF (1987)
Toyota Celica

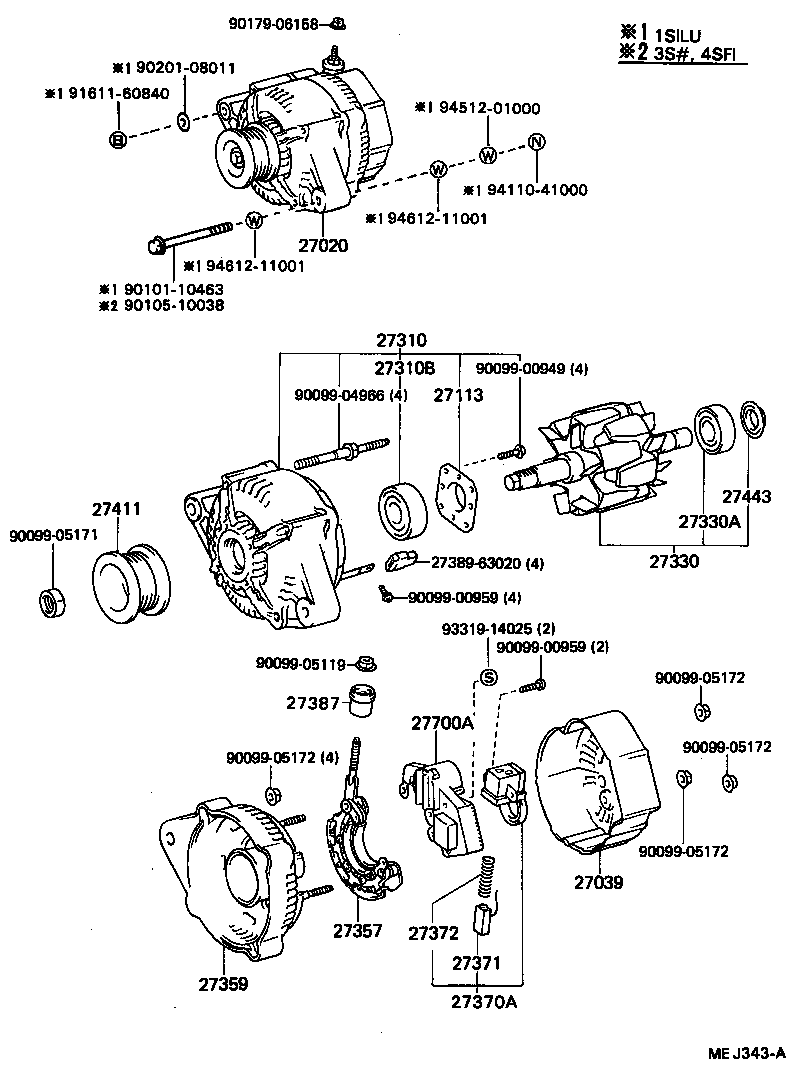

(8708-8805)1SILU,3SFE ; (8708-8808)3SGELU ; (8805- )3SFE,4SFI..5F ; (8808- )3
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63082 |
1SILU,3SFE,3SGELU..ST160,162 12V 70A |
1 | ||
| 27060-63082 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F 12V 70A |
1 | ||
| 27060-74050 |
3SGELU..ST162..4FC 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27039-72010 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27039-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 27312-70200 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-42010 |
3SGELU..ST162..4FC |
1 | ||
| 27310-70100 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 27310-70100 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 90099-10178 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 90099-10160 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27330-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27330-72101 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27357-63020 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27357-63020 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27359-43160 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 27359-43160 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27370-63021 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27387-70170 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27411-16180 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27411-74050 |
3SGELU..ST162..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
3SGELU..ST162..4FC |
1 | ||
| 27700-63021 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27700-63021 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10463 | ||||
| 90105-10038 | ||||
| 90179-06158 | ||||
| 90201-08011 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||

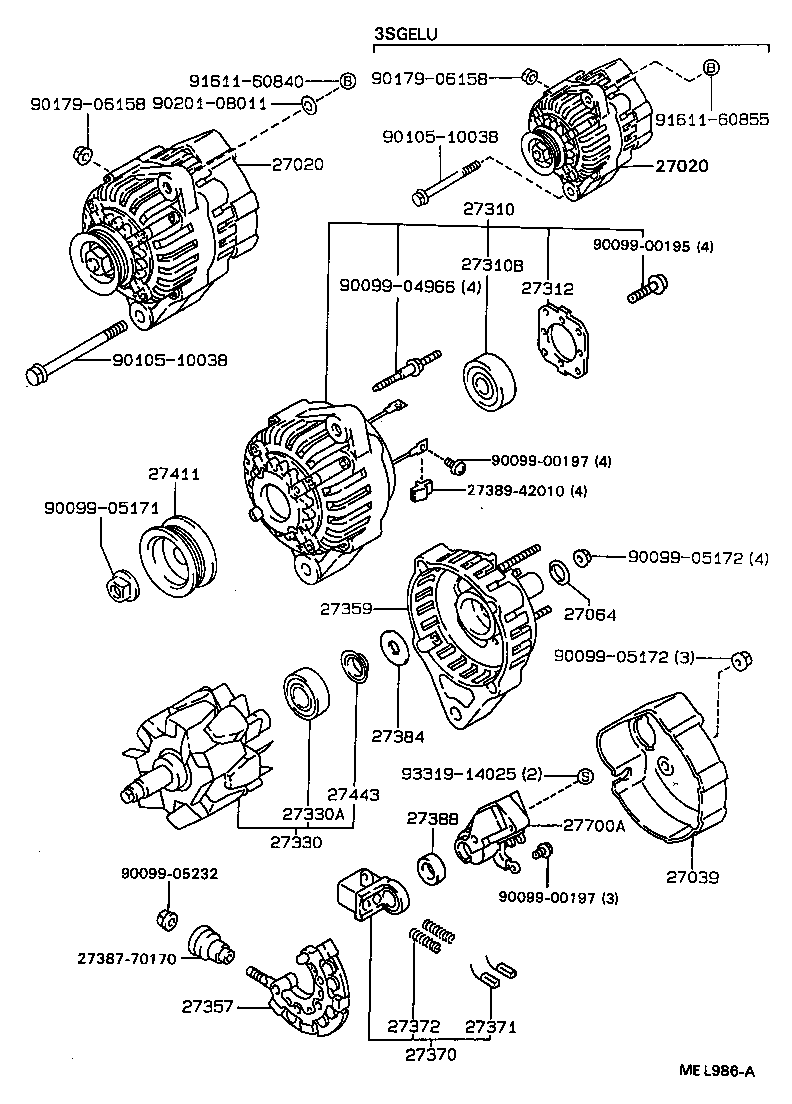

(8805- )3SFE,4SFI..4FC ; (8808- )3SGELU..4FC
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63082 |
1SILU,3SFE,3SGELU..ST160,162 12V 70A |
1 | ||
| 27060-63082 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F 12V 70A |
1 | ||
| 27060-74050 |
3SGELU..ST162..4FC 12V 70A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63082 |
1SILU,3SFE,3SGELU..ST160,162 12V 70A |
1 | ||
| 27060-63082 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F 12V 70A |
1 | ||
| 27060-74050 |
3SGELU..ST162..4FC 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27039-72010 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27039-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-42010 |
3SGELU..ST162..4FC |
1 | ||
| 27310-70100 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 27310-70100 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 90099-10178 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 90099-10160 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27330-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27330-72101 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27357-63020 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27357-63020 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27359-43160 |
3SGELU..ST162;3SFE,4SFI..ST162,163..5F |
1 | ||
| 27359-43160 |
1SILU,3SFE,3SGELU..ST160,162 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| 27411-16180 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27411-74050 |
3SGELU..ST162..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
3SGELU..ST162..4FC |
1 | ||
| 27700-63021 |
3SGELU..ST162;3SFE,3SGTE,4SFI..ST16#..5F |
1 | ||
| 27700-63021 |
1SILU,3SFE,3SG#..ST16# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10038 | ||||
| 90179-06158 | ||||
| 90201-08011 | ||||
| 91611-60840 | ||||
| 91611-60855 | ||||
| 93319-14025 | ||||
