ST162-BLPVF (1987)
Toyota Celica

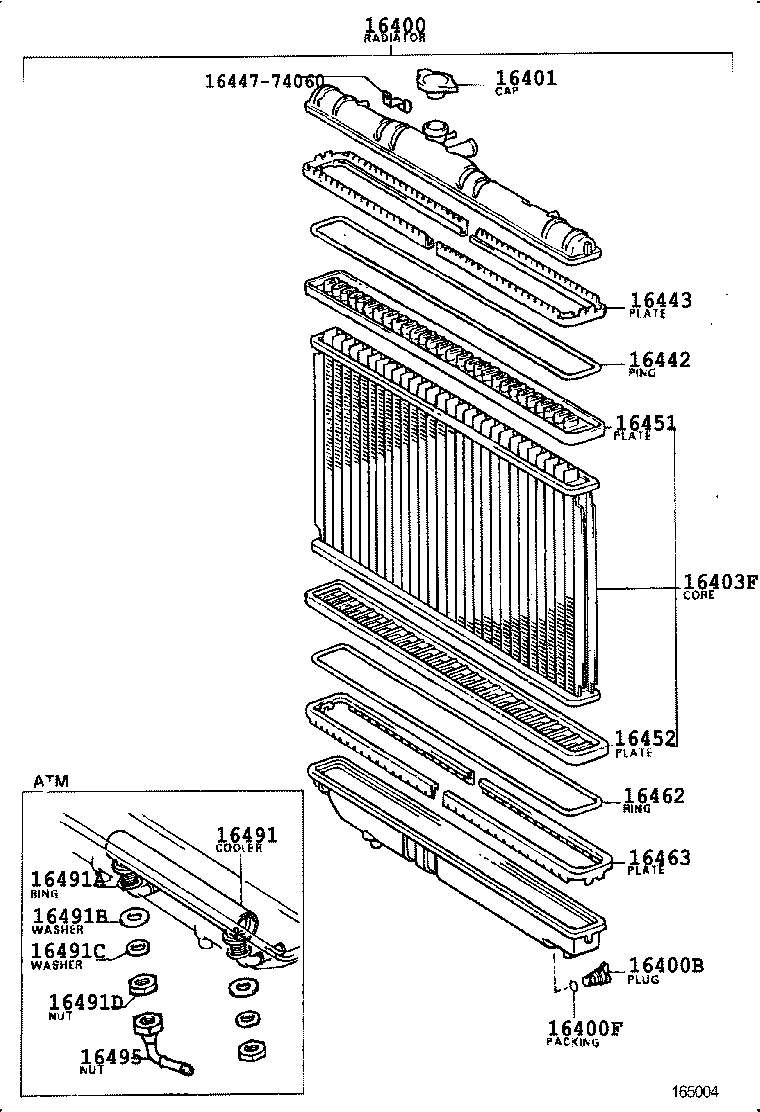

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74210 |
3SGELU..ST162..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74170 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15320 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-64070 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74210 |
3SGELU..ST162..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74070 |
3SFE,3SGELU,4SFI..ST162,163..4FC |
1 | ||
| Common parts | ||||
| 16447-74060 | ||||

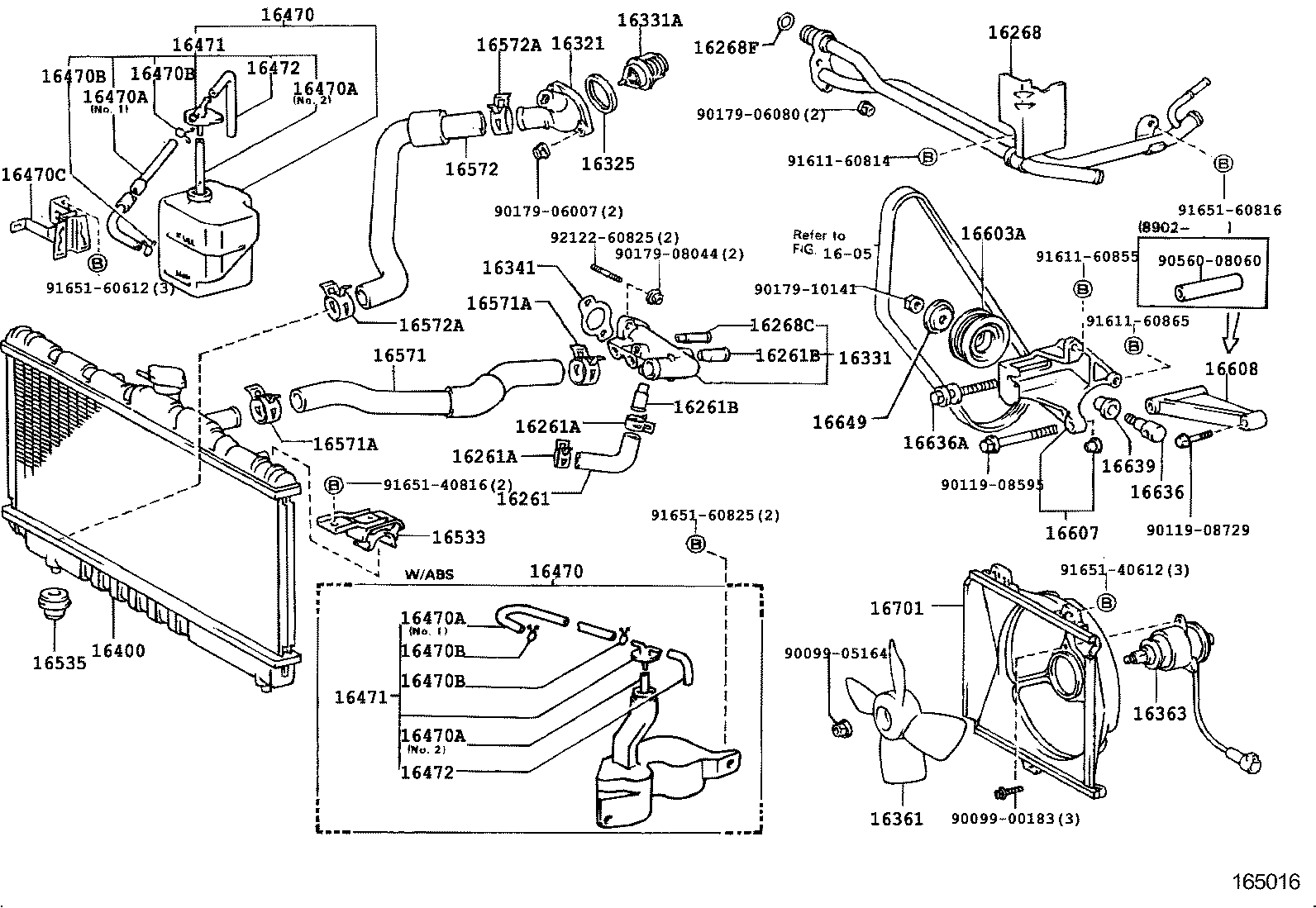

(8708- )3SGELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88360 |
3SG#..ST162,165 |
1 | ||
| 16261-88361 |
3SGELU..ST162 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE,3SG#,4SFI..ST162,163,165 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE,3SG#,4SFI..ST162,163,165 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-17001 |
3SGELU..ST162 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-17001 |
3SGELU..ST162 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74040 |
3SGELU..ST162 |
1 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90406-08013 |
3SGELU..ST162 |
1 | ||
| 90406-08013 |
3SGELU..ST162 |
1 | ||
| 90072-40625 |
3SGELU..ST162 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SFE,3SG#,4SFI..ST162,163,165 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-88360 |
3SFE,3SGELU,4SFI..ST162,163 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74011 |
3SGELU..ST162 |
1 | ||
| 16304-74010 |
3SGELU..ST162 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 *WAX 82−95 |
1 | ||
| 90916-03046 |
3SFE,3SGELU,4SFI..ST162,163 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63011 |
3SFE,3SGELU,4SFI..ST162,163 |
1 | ||
| 16341-63010 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 16361 - FAN | ||||
| 16361-64010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74210 |
3SGELU..ST162..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74080 |
3SGELU..ST162 ｱﾘ(ESC) |
1 | ||
| 16470-74010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74080 |
3SGELU..ST162 ｱﾘ(ESC) |
1 | ||
| 16470-74010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74080 |
3SGELU..ST162 ｱﾘ(ESC) NO.1 |
1 | ||
| 90445-12043 |
3SGELU..ST162 *H,L=360 |
1 | ||
| 90445-12078 |
1SILU,3SFE,3SG#,4SFI..ST16# 長さ=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74080 |
3SGELU..ST162 ｱﾘ(ESC) NO.1 |
1 | ||
| 90445-12043 |
3SGELU..ST162 *H,L=360 |
1 | ||
| 90445-12078 |
1SILU,3SFE,3SG#,4SFI..ST16# 長さ=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74080 |
3SGELU..ST162 ｱﾘ(ESC) NO.1 |
1 | ||
| 90445-12043 |
3SGELU..ST162 *H,L=360 |
1 | ||
| 90445-12078 |
1SILU,3SFE,3SG#,4SFI..ST16# 長さ=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74080 |
3SGELU..ST162 ｱﾘ(ESC) NO.1 |
1 | ||
| 90445-12043 |
3SGELU..ST162 *H,L=360 |
1 | ||
| 90445-12078 |
1SILU,3SFE,3SG#,4SFI..ST16# 長さ=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-74010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 |
1 | ||
| 16405-74080 |
3SGELU..ST162 ｱﾘ(ESC) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74010 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 |
1 | ||
| 16405-74080 |
3SGELU..ST162 ｱﾘ(ESC) |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-14030 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 85338-74040 |
3SGELU..ST162 ｱﾘ(ESC) |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-14030 |
1SILU,3SFE,3SG#,4SFI..ST16# |
1 | ||
| 85338-74040 |
3SGELU..ST162 ｱﾘ(ESC) |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74020 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74020 |
3SGTE..ST165;1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74080 |
3SFE,3SGELU,4SFI..ST162,163 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74120 |
3SFE,3SGELU,4SFI..ST162,163 |
1 | ||
| 16572-74030 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
1SILU,3SFE,3SG#,4SFI..ST16# |
2 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-88360 |
3SG#..ST162,165 |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-74020 |
3SG#..ST162,165 |
1 | ||
| 16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 | ||||
| 16632-88360 |
3SGELU..ST162 |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SG#..ST162,165 |
1 | ||
| 16636A - BOLT(FOR IDLER PULLY TENSION) | ||||
| 90109-08116 |
3SG#..ST162,165 |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-88361 |
3SG#..ST162,165 *54 |
1 | ||
| 16639-88360 |
3SGELU..ST162 *53 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SG#..ST162,165 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74050 |
1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90119-08595 | ||||
| 90119-08729 | ||||
| 90179-06007 | ||||
| 90179-06080 | ||||
| 90179-08044 | ||||
| 90179-10141 | ||||
| 90560-08060 | ||||
| 91611-60814 | ||||
| 91611-60855 | ||||
| 91611-60865 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 92122-60825 | ||||
| Linked diagrams | ||||
| 1605 | ||||
