ST162-BLPGK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

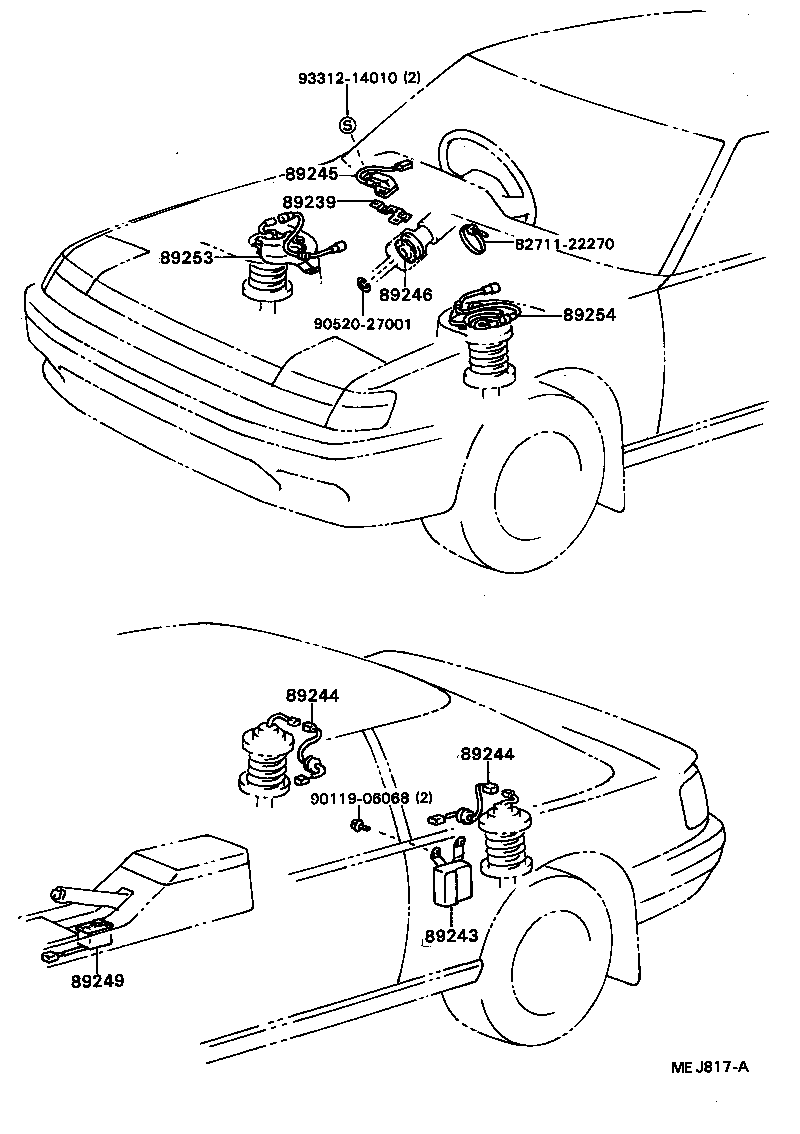

Click highlighted areas on diagram

diagram 8271122270 89239 89243 89244 89244 89245 89246 89249 89253 89254 9011906068 9052027001 9331214010
Part # Description Qty Price
89239 - BRACKET, STEERING SENSOR
89239-32010

ST162..LB

 1
89243 - COMPUTER, ABSORBER CONTROL
89243-20010

ST162..LB

 1
89244 - WIRE, ABSORBER CONTROL, REAR
89244-32010

ST162..LB

 2
89244 - WIRE, ABSORBER CONTROL, REAR
89244-32010

ST162..LB

 2
89245 - SENSOR, STEERING
89245-20010

ST162..LB

 1
89246 - DISC, SENSOR STEERING
89246-32010

ST162..LB

 1
89249 - SWITCH, ABSORBER CONTROL
89249-20010

ST162..LB

 1
89253 - WIRE, ABSORBER CONTROL, FRONT RH
89253-20010

ST162..LB

 1
89254 - WIRE, ABSORBER CONTROL, FRONT LH
89254-20010

ST162..LB

 1
Common parts
82711-22270
90119-06068
90520-27001
93312-14010
