ST162-BLMVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST16#

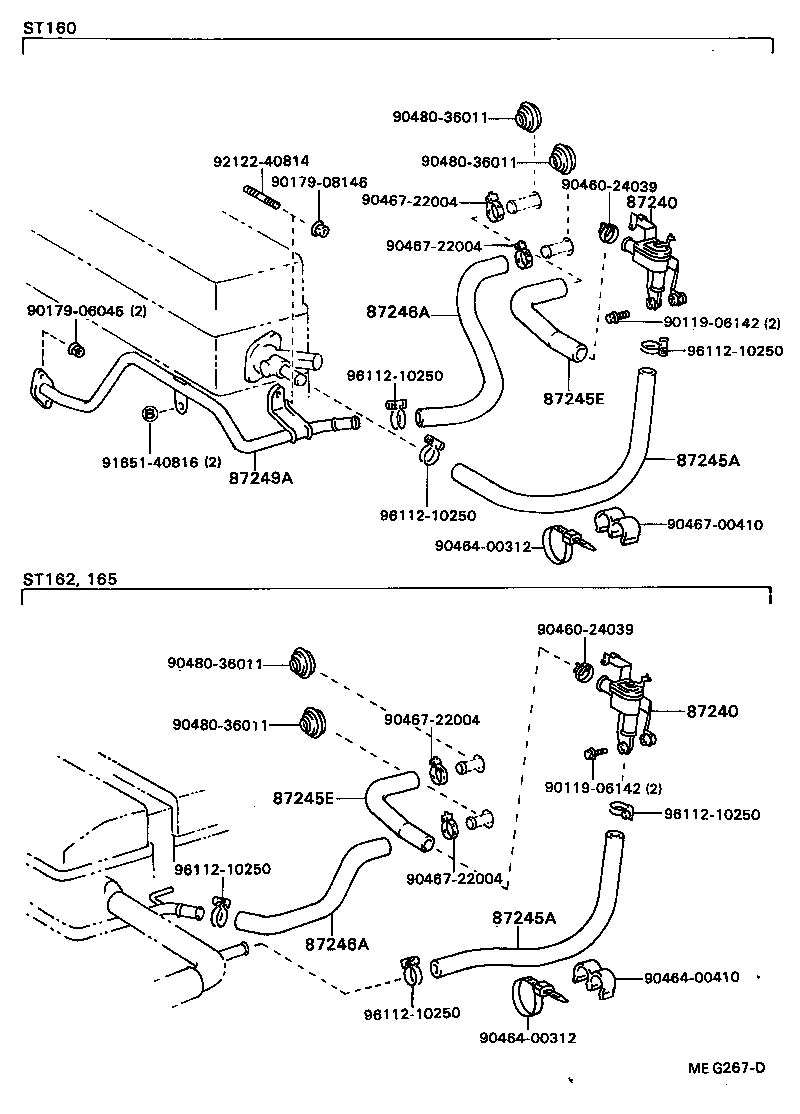

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 9011906142 9011906142 9017906045 9017908146 9046024039 9046024039 9046400312 9046400312 9046400410 9046700410 9046722004 9046722004 9046722004 9046722004 9048036011 9048036011 9048036011 9048036011 9165140816 9212240814 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20290

AT160,ST16#

 1
87240 - VALVE ASSY, HEATER WATER
87240-20290

AT160,ST16#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B080

ST162,165

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B080

ST162,165

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20810

AT160,ST16#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20810

AT160,ST16#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B090

ST162,165

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B090

ST162,165

 1
Common parts
90119-06142
90179-06045
90179-08146
90460-24039
90464-00312
90464-00410
90467-00410
90467-22004
90480-36011
91651-40816
92122-40814
96112-10250
