ST162-BLMVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

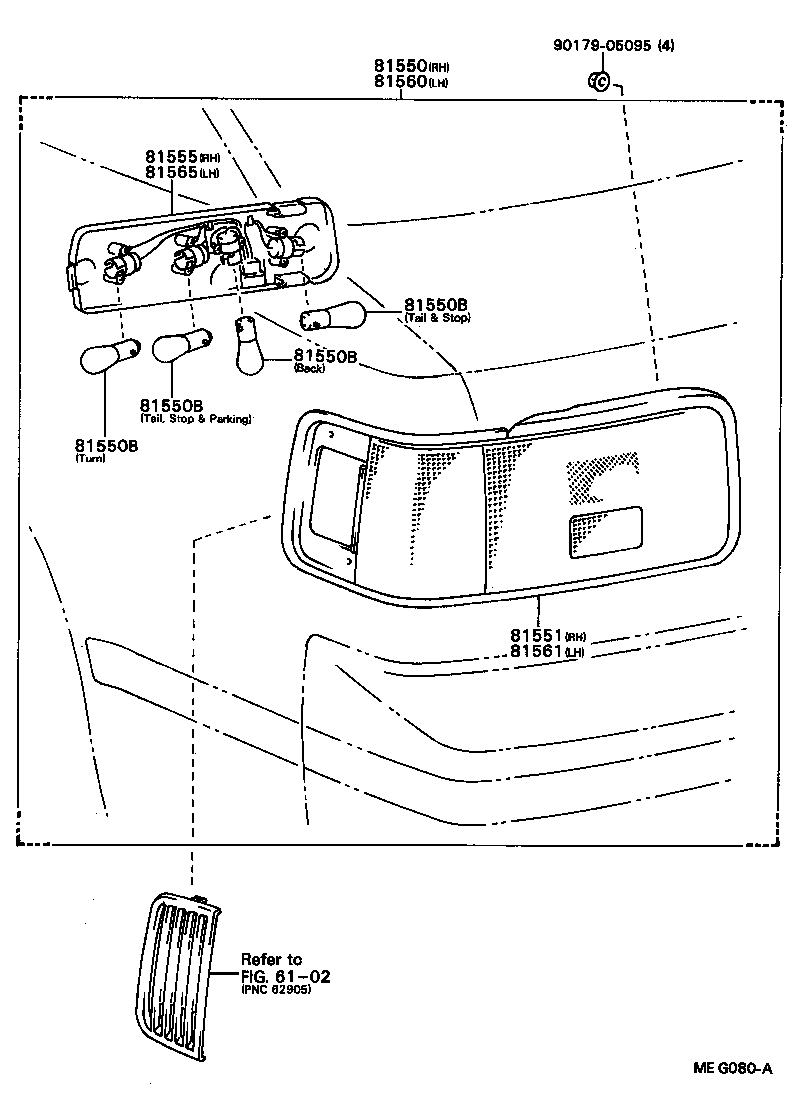

Click highlighted areas on diagram

diagram 6102 81550 81550B 81550B 81550B 81550B 81551 81555 81560 81561 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-20660

AT160,ST16#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT160,ST16#

12V 21/5W,12V 21/5W,TAIL,STOP & PARKING

 4
99132-11230

AT160,ST16#

12V 23W,12V 23W,TURN & BACK

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT160,ST16#

12V 21/5W,12V 21/5W,TAIL,STOP & PARKING

 4
99132-11230

AT160,ST16#

12V 23W,12V 23W,TURN & BACK

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT160,ST16#

12V 21/5W,12V 21/5W,TAIL,STOP & PARKING

 4
99132-11230

AT160,ST16#

12V 23W,12V 23W,TURN & BACK

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT160,ST16#

12V 21/5W,12V 21/5W,TAIL,STOP & PARKING

 4
99132-11230

AT160,ST16#

12V 23W,12V 23W,TURN & BACK

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-20660

AT160,ST16#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20660

AT160,ST16#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-20600

AT160,ST16#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-20600

AT160,ST16#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-20600

AT160,ST16#

 1
Common parts
90179-05095
Linked diagrams
6102
