ST162-BLMVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

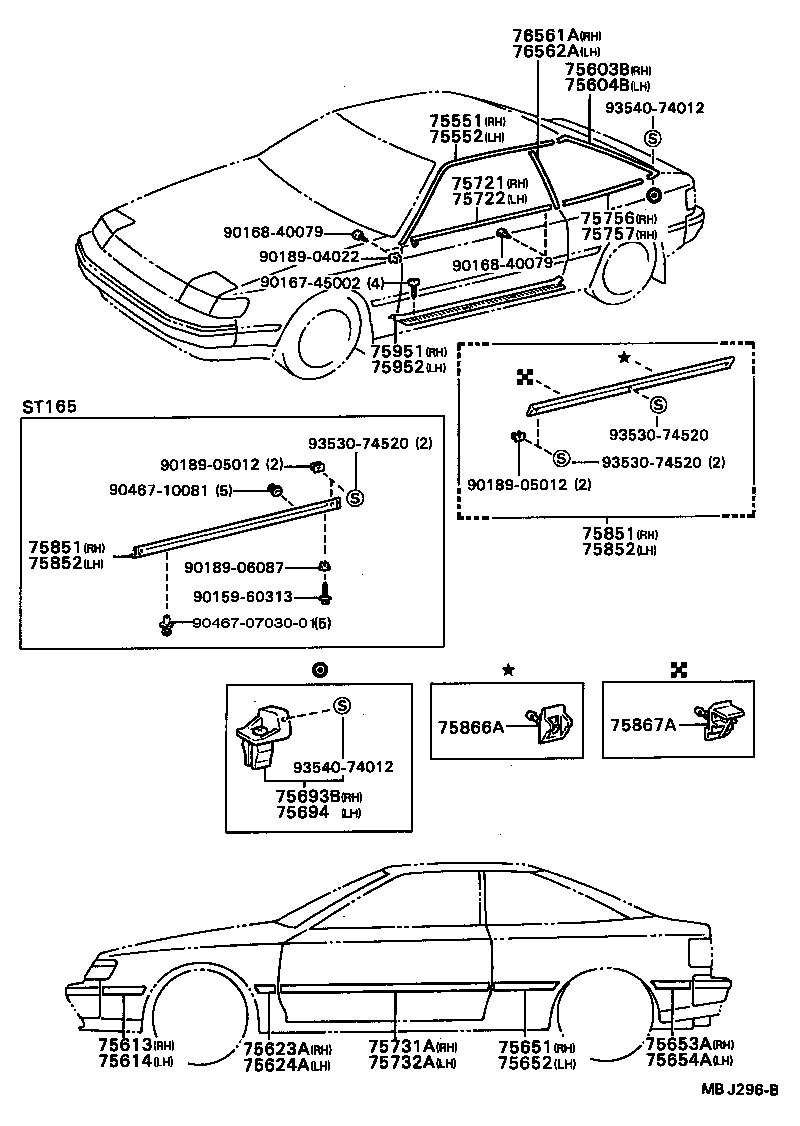

Click highlighted areas on diagram

diagram 75551 75552 75603B 75604B 75613 75614 75623A 75624A 75651 75652 75653A 75654A 75693B 75694 75721 75722 75731A 75732A 75756 75757 75851 75851 75852 75852 75866A 75867A 75951 75952 76561A 76562A 9015960313 9016745002 9016840079 9016840079 9018904022 9018905012 9018905012 9018906087 904670703001 9046710081 9353074520 9353074520 9353074520 9354074012 9354074012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20270

AT160,ST16#

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20270

AT160,ST16#

 1
75603B - MOULDING SUB-ASSY, QUARTER WINDOW OUTSIDE, RH
75603-20030

AT160,ST16#

 1
75604B - MOULDING SUB-ASSY, QUARTER WINDOW OUTSIDE, LH
75604-20020

AT160,ST16#

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-20220

AT160,ST160,162..GT,ST,SX

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75612-20190

AT160,ST160,162..GT,ST,SX

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20080

AT160,ST160,162..GT,ST,SX

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20080

AT160,ST160,162..GT,ST,SX

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-20210

AT160,ST160,162..GT,ST,SX

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-20200

AT160,ST160,162..GT,ST,SX

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-20150

AT160,ST160,162..GT,ST,SX

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-20140

AT160,ST160,162..GT,ST,SX

 1
75693B - RETAINER, QUARTER BELT REAR MOULDING, NO.1
75693-20020

AT160,ST16#

 1
75694 - RETAINER, QUARTER BELT REAR MOULDING, NO.2
75694-20020

AT160,ST16#

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-20280

AT160,ST16#

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-20280

AT160,ST16#

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20230

AT160,ST160,162..GT,ST,SX

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20230

AT160,ST160,162..GT,ST,SX

 1
75756 - MOULDING, QUARTER BELT, RH
75671-20040

AT160,ST16#

 1
75757 - MOULDING, QUARTER BELT, LH
75672-20040

AT160,ST16#

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29175

AT160,ST160,162

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29175

AT160,ST160,162

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-29175

AT160,ST160,162

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-29175

AT160,ST160,162

 1
75866A - RETAINER, ROCKER PANEL MOULDING
75866-20020

AT160,ST160,162

 2
75867A - CLIP, ROCKER PANEL MOULDING
75867-20050

AT160,ST160,162

 4
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-2014004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
67913-2014003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-2014003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
67913-2014004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
76561A - MOULDING, CENTER PILLAR, RH
76561-20010

AT160,ST16#

 1
76562A - MOULDING, CENTER PILLAR, LH
76562-20010

AT160,ST16#

 1
Common parts
90159-60313
90167-45002
90168-40079
90189-04022
90189-05012
90189-06087
90467-0703001
90467-10081
93530-74520
93540-74012
