ST162-BLMVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

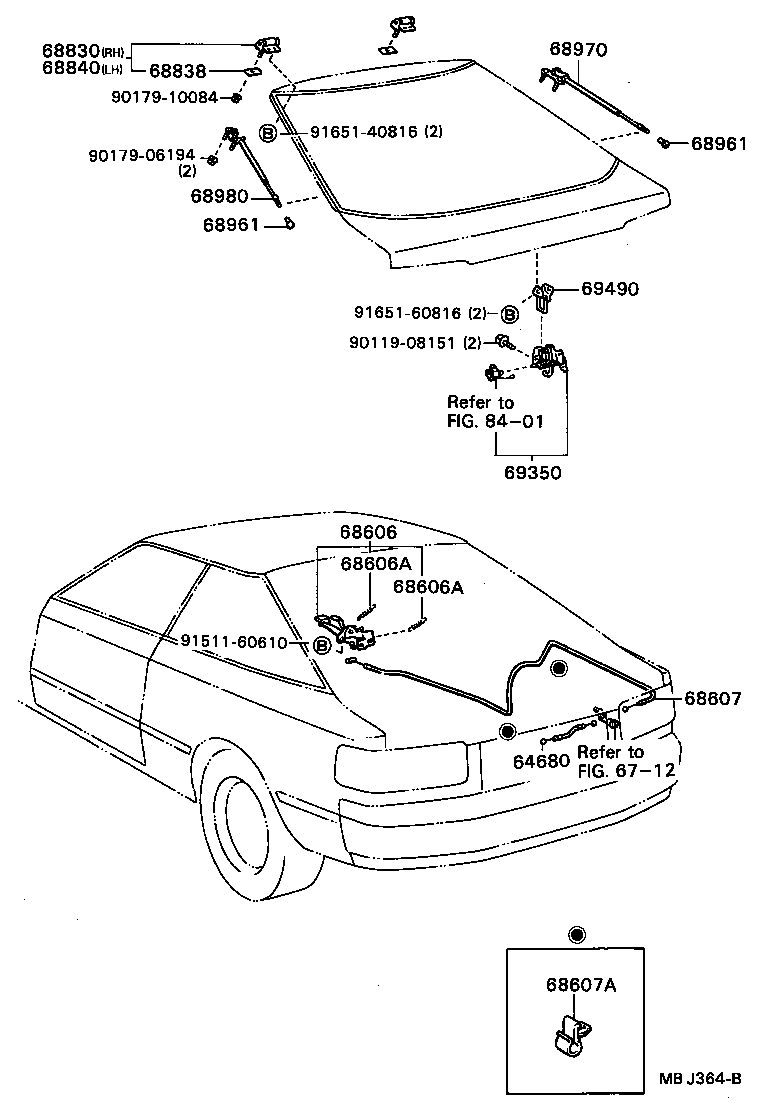

Click highlighted areas on diagram

diagram 64680 6712 68606 68606A 68606A 68607 68607A 68830 68838 68840 68961 68961 68970 68980 69350 69490 8401 9011908151 9017906194 9017910084 9151160610 9165140816 9165160816
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-20010

AT160,ST16#

 1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-20070

AT160,ST16#

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AT160,ST160,162

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AT160,ST160,162

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-20250

AT160,ST16#

 1
64607-20251

AT160,ST16#

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

AT160,ST16#

 2
68830 - HINGE ASSY, BACK DOOR, RH
68801-20030

AT160,ST16#

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-20010

AT160,ST16#

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-20030

AT160,ST16#

 1
68961 - BOLT, BACK DOOR STAY
68961-20060

AT160,ST16#

 2
68961 - BOLT, BACK DOOR STAY
68961-20060

AT160,ST16#

 2
68970 - STAY ASSY, BACK DOOR, RH
68905-20031

AT160,ST16#..GT,GT4,ST,SX

W/*RW,RR SPOILER

 1
68905-20030

AT160,ST16#..GT,GT4,ST,SX

W/*RW,RR SPOILER

 1
68980 - STAY ASSY, BACK DOOR
68906-20031

AT160,ST16#..GT,GT4,ST,SX

W/*RW,RR SPOILER

 1
68906-20030

AT160,ST16#..GT,GT4,ST,SX

W/*RW,RR SPOILER

 1
69350 - LOCK ASSY, BACK DOOR
69350-20030

AT160,ST16#

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-20060

AT160,ST16#

 1
Common parts
90119-08151
90179-06194
90179-10084
91511-60610
91651-40816
91651-60816
Linked diagrams
6712
8401
