ST162-BLMVF (1987)
Toyota Celica

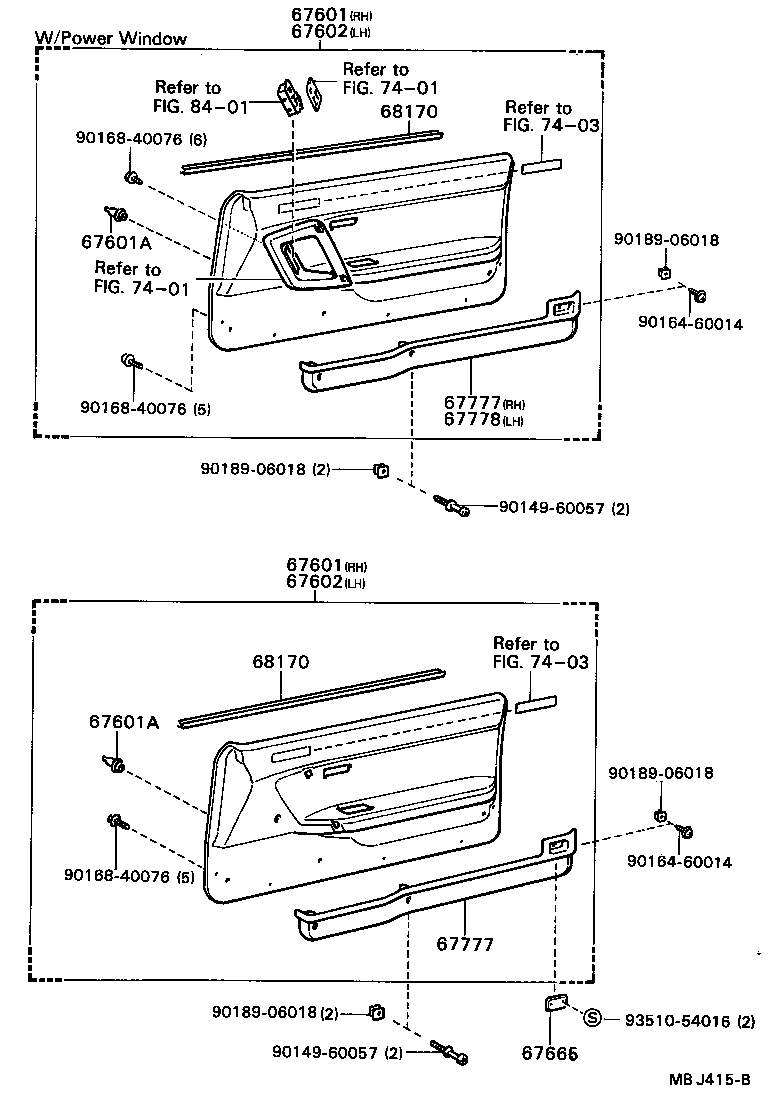

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2B63201 |
ST162..GT BLACK,TRIM2# |
1 | ||
| 67610-2D88001 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,BLACK,TRIM2# |
1 | ||
| 67610-2B63204 |
ST162..GT DEEP BLUE,TRIM8# |
1 | ||
| 67610-2B64201 |
ST162..GT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67610-2B64204 |
ST162..GT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),DEEP BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2B63201 |
ST162..GT BLACK,TRIM2# |
1 | ||
| 67610-2D88001 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,BLACK,TRIM2# |
1 | ||
| 67610-2B63204 |
ST162..GT DEEP BLUE,TRIM8# |
1 | ||
| 67610-2B64201 |
ST162..GT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67610-2B64204 |
ST162..GT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),DEEP BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
11 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
11 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D54101 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,BLACK,TRIM2# |
1 | ||
| 67620-2D13204 |
ST162..GT DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D14204 |
ST162..GT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D13201 |
ST162..GT BLACK,TRIM2# |
1 | ||
| 67620-2D14201 |
ST162..GT ｱﾘ(ﾊﾟﾜｰ ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D54101 |
ST162..GT ﾌﾞﾗﾂｸ ｾﾘｶ,BLACK,TRIM2# |
1 | ||
| 67620-2D13204 |
ST162..GT DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D14204 |
ST162..GT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D13201 |
ST162..GT BLACK,TRIM2# |
1 | ||
| 67620-2D14201 |
ST162..GT ｱﾘ(ﾊﾟﾜｰ ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67665 - REFLECTOR, FRONT DOOR TRIM, RH | ||||
| 67665-20010 |
ST160,162,163..GT,ST |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2004104 |
ST163..4FC;ST160,162..LB;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 67770-2004101 |
ST16#..LB BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2004104 |
ST163..4FC;ST160,162..LB;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 67770-2004101 |
ST16#..LB BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2001101 |
ST162..GT BLACK,TRIM2# |
1 | ||
| 67780-2001104 |
ST162..GT DEEP BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20240 |
ST16# 左側 |
1 | ||
| 68170-20310 |
ST16# 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20240 |
ST16# 左側 |
1 | ||
| 68170-20310 |
ST16# 右側 |
1 | ||
| Common parts | ||||
| 90149-60057 | ||||
| 90164-60014 | ||||
| 90168-40076 | ||||
| 90189-06018 | ||||
| 93510-54016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7403 | ||||
| 8401 | ||||

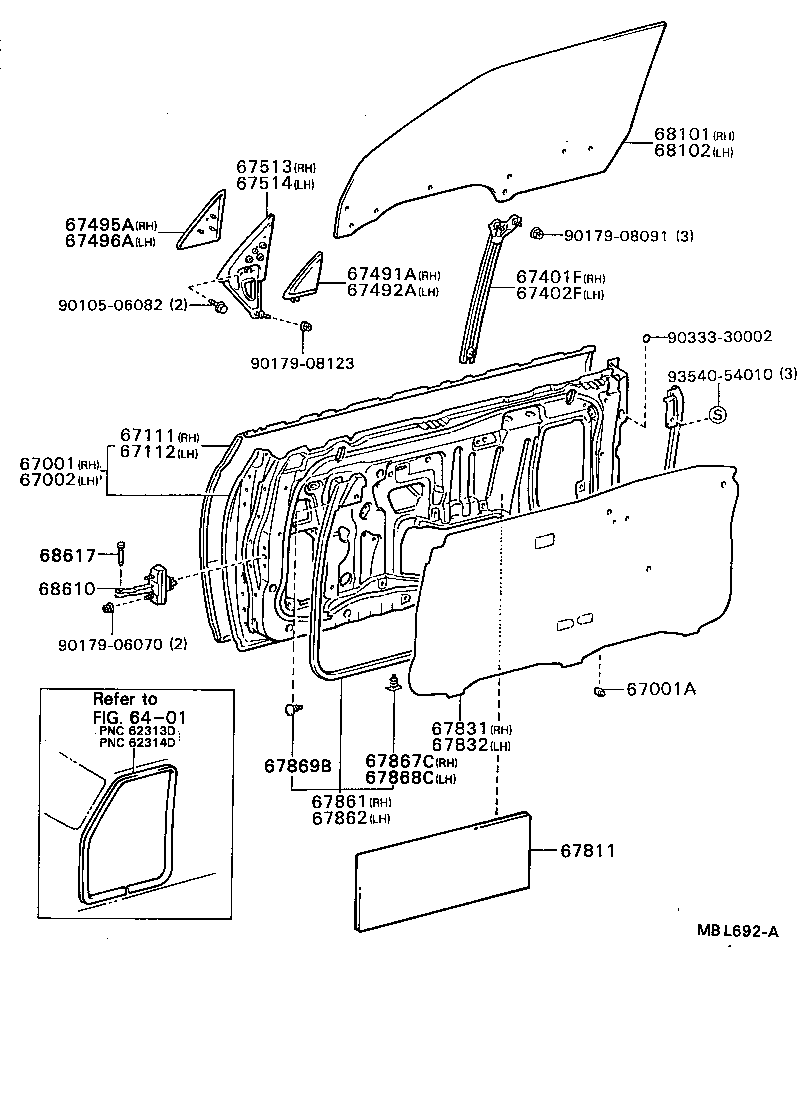

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20650 |
ST16#..LB |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
ST16# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20620 |
ST16#..LB |
1 | ||
| 67002-20621 |
ST16#..LB |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20160 |
ST16# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20180 |
ST16# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20160 |
ST16# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20150 |
ST16# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20121 |
ST16# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20141 |
ST16# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20060 |
ST16# |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-20030 |
ST16# |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-20051 |
ST16# |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-20051 |
ST16# |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
ST16# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20310 |
ST16# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20140 |
ST16# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20250 |
ST16#..LB |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20250 |
ST16#..LB |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
ST16#..LB |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
ST16#..LB |
21 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30020 |
ST16# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20400 |
ST16# *TT,厚さ=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20320 |
ST16# *TT,厚さ=5.0 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20050 |
ST16# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
ST16# |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90179-08123 | ||||
| 90333-30002 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 6401 | ||||
