ST162-BLMVF (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

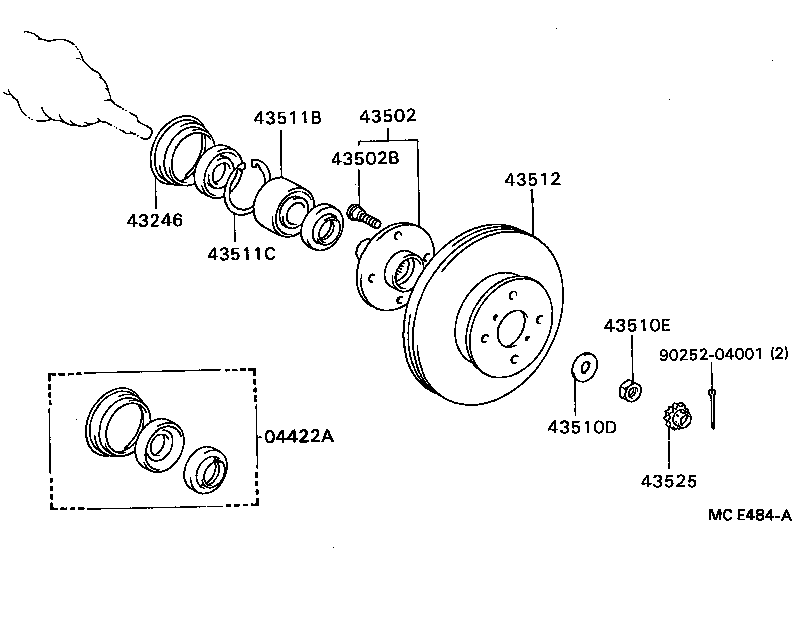

Click highlighted areas on diagram

diagram 04422A 43246 43502 43502B 43510D 43510E 43511B 43511C 43512 43525 9025204001
Part # Description Qty Price
04422A - SEAL KIT, FRONT AXLE OIL
04422-20010

ST16#

 2
43246 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1
43246-20010

ST16#

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43503-32010

ST162,165..GT,GT4

ｱﾘ(ESC)

 2
43502-20040

ST162,165

 2
43503-32010

ST162,165..LB

ｱﾘ(ESC)

 2
43502-32040

ST160,162,165

 2
43502-32050

ST162,165

 2
43503-32020

ST162,165..LB

ｱﾘ(ESC)

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

ST162,165

 10
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90201-20012

ST16#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19001

ST160,162,163

 2
43511B - BEARING (FOR FRONT AXLE HUB)
90369-38003

ST16#

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-79002

ST16#

外径=79

 2
90521-79005

ST16#

厚さ=2.62−2.67

 2
90521-79003

ST16#

厚さ=2.50−2.57

 2
90521-79004

ST16#

厚さ=2.57−2.62

 2
90521-79006

ST16#

厚さ=2.67−2.72

 2
43512 - DISC, FRONT
43512-20120

ST162

 2
43512-20190

ST162..GT

ｱﾘ(ESC)

 2
43512-20190

ST162..LB

ｱﾘ(ESC)

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

ST16#

 2
Common parts
90252-04001
