ST162-BLMGK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

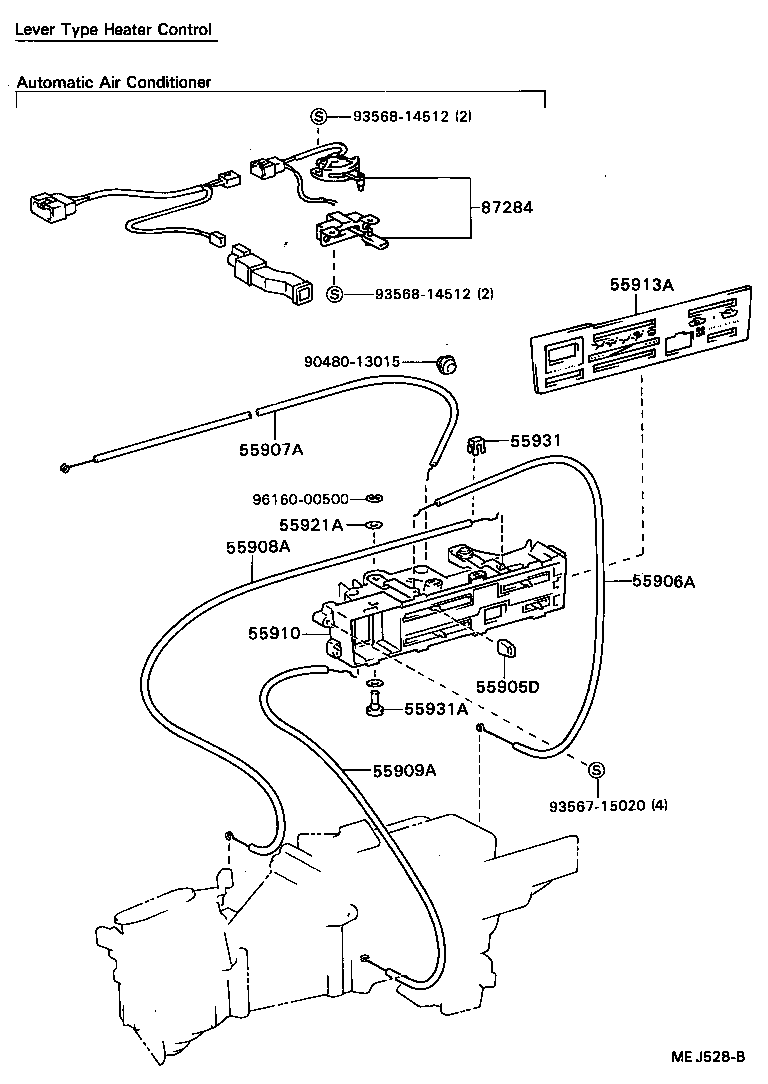

ILLUST NO. 1 OF 3(8708- )ST

Click highlighted areas on diagram

diagram 55905D 55906A 55907A 55908A 55909A 55910 55913A 55921A 55931 55931A 87284 9048013015 9356715020 9356814512 9356814512 9616000500
Part # Description Qty Price
55905D - KNOB SUB-ASSY, CONTROL
55905-20260

ST16#..CV,GT,GT4,SX,ZR

ECON

 1
55905-20270

ST16#..CV,GT,GT4,SX,ZR

ｵｰﾄ

 1
55905-20250

ST16#..CV,GT,GT4,SX,ZR

A/C

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-20360

ST16#..CV,GT,GT4,SX,ZR

 1
Common parts
90480-13015
93567-15020
93568-14512
96160-00500

ILLUST NO. 1 OF 3(8708- )CV,GT,GT4,SX,ZR

Click highlighted areas on diagram

diagram 55905D 55905D 55905D 55910 8302 9356715020
Part # Description Qty Price
55905D - KNOB SUB-ASSY, CONTROL
55905-20260

ST16#..CV,GT,GT4,SX,ZR

ECON

 1
55905-20270

ST16#..CV,GT,GT4,SX,ZR

ｵｰﾄ

 1
55905-20250

ST16#..CV,GT,GT4,SX,ZR

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20260

ST16#..CV,GT,GT4,SX,ZR

ECON

 1
55905-20270

ST16#..CV,GT,GT4,SX,ZR

ｵｰﾄ

 1
55905-20250

ST16#..CV,GT,GT4,SX,ZR

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20260

ST16#..CV,GT,GT4,SX,ZR

ECON

 1
55905-20270

ST16#..CV,GT,GT4,SX,ZR

ｵｰﾄ

 1
55905-20250

ST16#..CV,GT,GT4,SX,ZR

A/C

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-20360

ST16#..CV,GT,GT4,SX,ZR

 1
Common parts
93567-15020
Linked diagrams
8302

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 87201 87211 87211A 87211B 87212 87214E 87214F 87214G 87214H 87214J 87220 9015960125 9356755014 9356855014 9356855014 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20150

ST16#

 1
87211 - DUCT, AIR, NO.1
87211-20090

ST16#

 1
87211A - DUCT, AIR, NO.2
87201-20180

ST16#

 1
87211B - DUCT, AIR, NO.3
55087-20060

ST16#

 1
87212 - DUCT, AIR, REAR NO.1
87202-20020

ST16#

 1
87214E - BOOT, SIDE VENTILATOR DUCT, RH
55863-20040

ST16#

 1
87214F - DUCT, COWL TO REGISTER, NO.1
55841-20050

ST16#

 1
87214G - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-20110

ST16#

 1
87214H - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-20060

ST16#

 1
87214J - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-20050

ST16#

 1
87220 - DUCT ASSY, AIR
87220-20010

ST16#

 1
Common parts
90159-60125
93567-55014
93568-55014

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88625C 88669A 88669A 88669A 88897P 9009900930 9017906032
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20130

ST162,165

NO.3

 1
88625-20140

ST16#

NO.2

 1
88625-20190

ST16#

NO.1

 1
88625C - THERMISTOR, COOLER
88625-20130

ST162,165

NO.3

 1
88625-20140

ST16#

NO.2

 1
88625-20190

ST16#

NO.1

 1
88625C - THERMISTOR, COOLER
88625-20130

ST162,165

NO.3

 1
88625-20140

ST16#

NO.2

 1
88625-20190

ST16#

NO.1

 1
88625C - THERMISTOR, COOLER
88625-20130

ST162,165

NO.3

 1
88625-20140

ST16#

NO.2

 1
88625-20190

ST16#

NO.1

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-20020

ST160,162,163..CV,GT,SX,ZR

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-20020

ST160,162,163..CV,GT,SX,ZR

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-20020

ST160,162,163..CV,GT,SX,ZR

 1
88897P - ASPIRATOR
88897-20100

ST163;ST160,162..CV,GT,ST,ZR

 1
Common parts
90099-00930
90179-06032
