ST160-BLPSL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

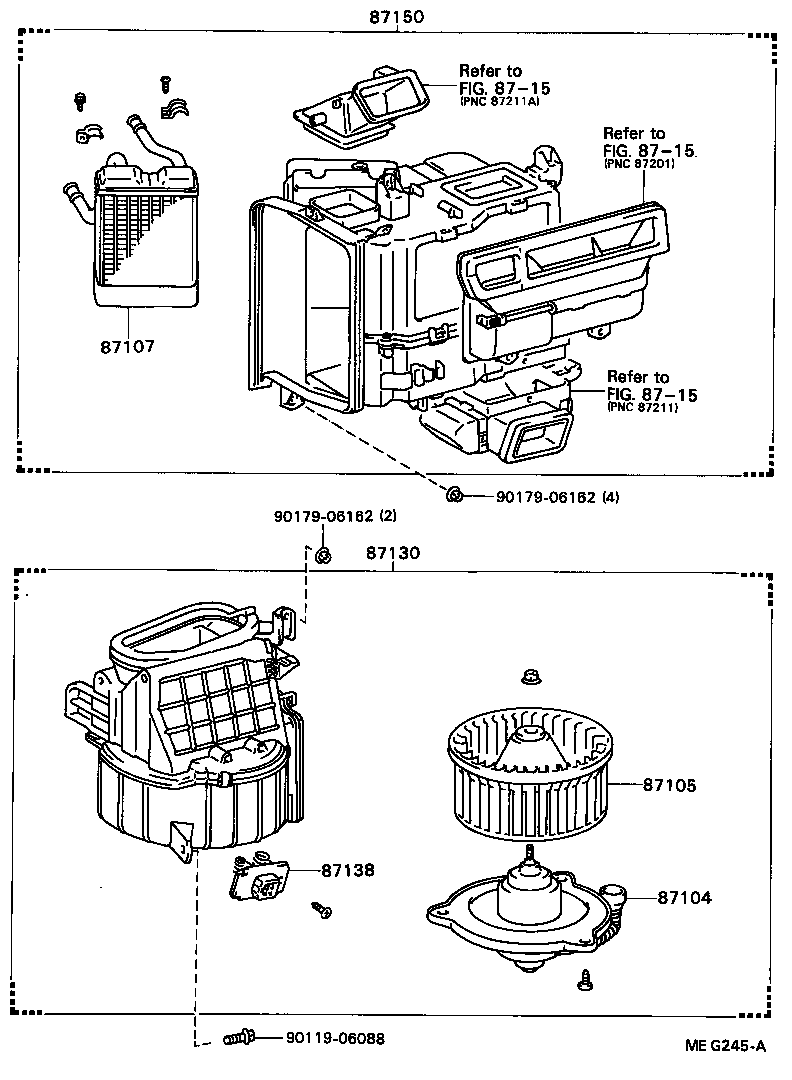

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87130 87138 8715 8715 8715 87150 9011906088 9017906162 9017906162
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-20170

AT160,ST16#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

AT160,ST16#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20340

AT160,ST16#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20160

AT160,ST160,162

 1
87138 - RESISTOR, HEATER BLOWER
88635-20060

AT160,ST16#

W/*AAC

 1
87138-20100

AT160,ST160,162

 1
87150 - RADIATOR ASSY, HEATER
87150-20370

AT160,ST160,162

 1
Common parts
90119-06088
90179-06162
Linked diagrams
8715

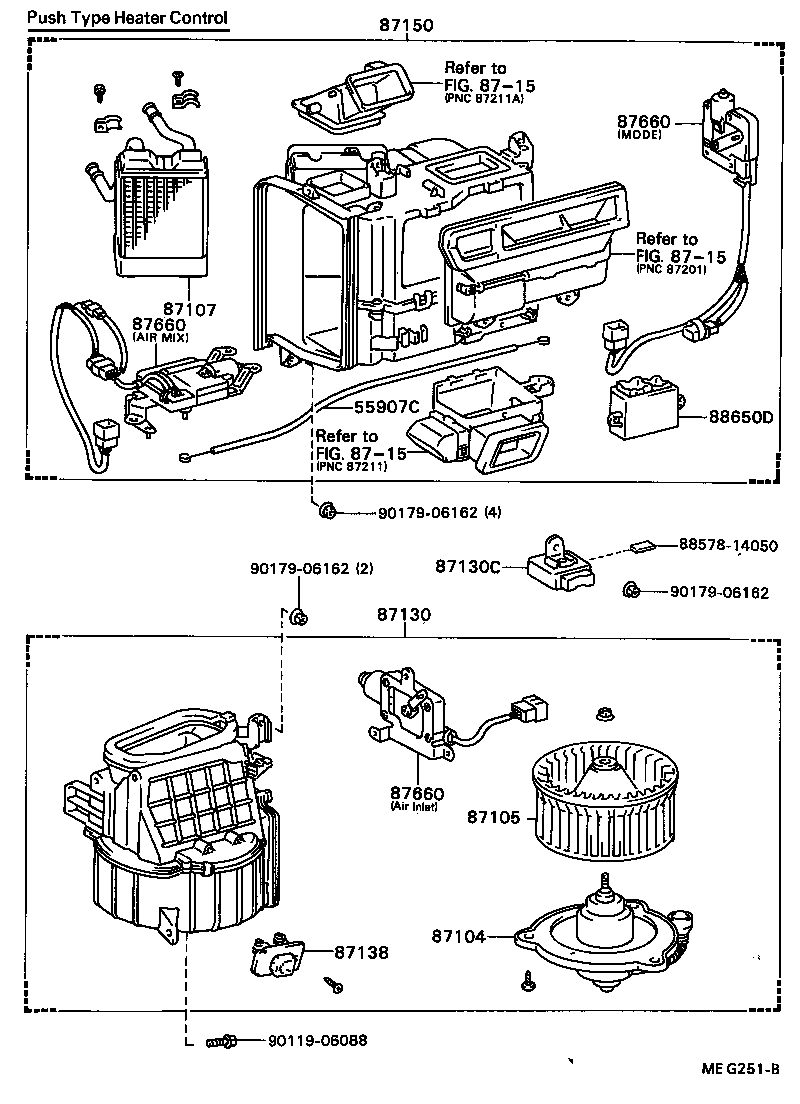

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 55907C 87104 87105 87107 87130 87130C 87138 8715 8715 8715 87150 87660 87660 87660 8857814050 88650D 9011906088 9017906162 9017906162 9017906162
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20030

AT160,ST16#

W/*PHC OR *AAC

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-20170

AT160,ST16#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

AT160,ST16#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20340

AT160,ST16#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20160

AT160,ST160,162

 1
87138 - RESISTOR, HEATER BLOWER
88635-20060

AT160,ST16#

W/*AAC

 1
87138-20100

AT160,ST160,162

 1
87150 - RADIATOR ASSY, HEATER
87150-20370

AT160,ST160,162

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-20170

AT160,ST160,162

W/*AAC,*LHC

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-20170

AT160,ST160,162

W/*AAC,*LHC

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-20170

AT160,ST160,162

W/*AAC,*LHC

 1
Common parts
88578-14050
90119-06088
90179-06162
Linked diagrams
8715

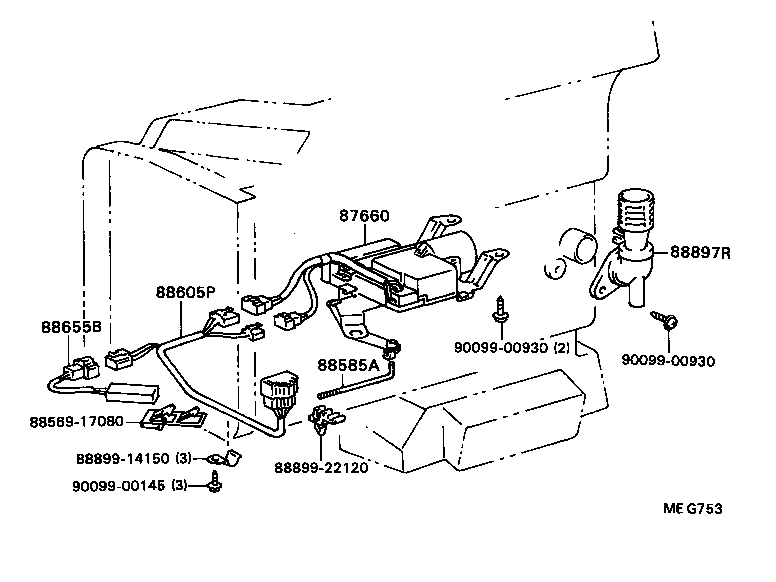

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 87660 8856917080 88585A 88605P 88655B 88897R 8889914150 8889922120 9009900145 9009900930 9009900930
Part # Description Qty Price
87660 - SERVO ASSY, AIR CONDITIONER
88660-20170

AT160,ST160,162

W/*AAC,*LHC

 1
88585A - SHAFT, HEATER AIR DAMPER
88585-20050

AT160,ST160,162

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-20660

AT160,ST160,162

 1
88655B - SWITCH, WATER TEMPERATURE
88655-22020

AT160,ST16#

 1
88897R - ASPIRATOR
88897-20100

AT160,ST16#

 1
Common parts
88569-17080
88899-14150
88899-22120
90099-00145
90099-00930
