ST160-BLPSL (1987)
Toyota Celica
Production
Aug 1987
-
May 1988
Engine
1SILU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

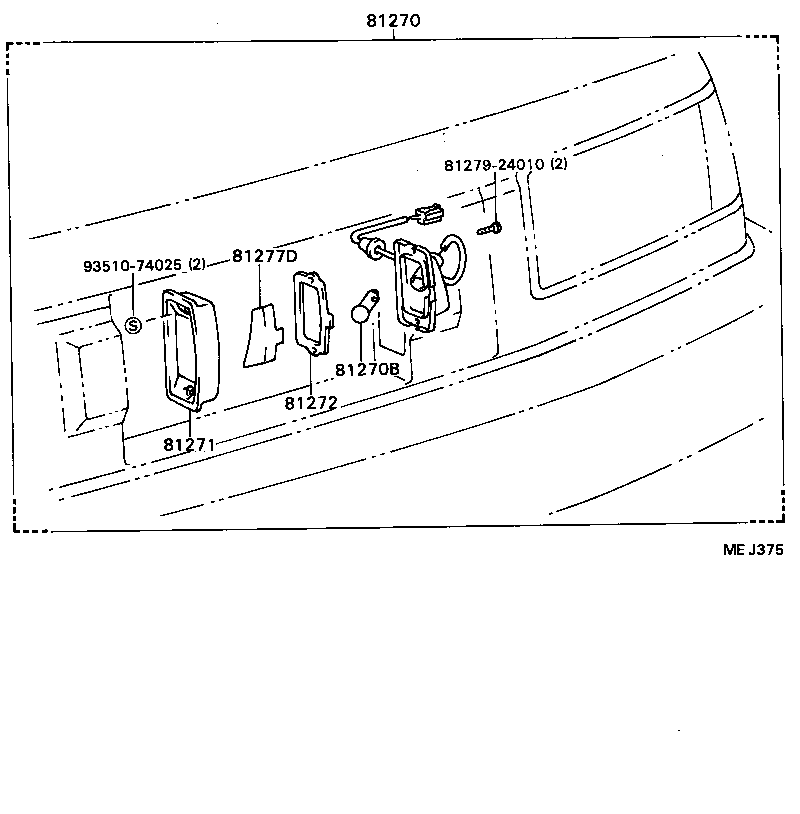

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-2031008 |
ST16#..LB SUPER WHITE,040,COLORED |
2 | ||
| 81270-2031013 |
ST16#..LB GRAY METAL,168,COLORED |
2 | ||
| 81270-2031002 |
ST16#..LB SUPER RED,3E5,COLORED |
2 | ||
| 81270-14220 |
ST16#..LB ﾌﾞﾗｯｸ |
2 | ||
| 81270-2031023 |
ST160,162,163..LB SILVER/M,23E,COLORED |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-12012 |
ST16#..LB 12V 7.5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-2031023 |
ST160,162,163..LB SILVER-M,23E,COLORED |
2 | ||
| 81271-14220 |
ST16#..LB ﾌﾞﾗｯｸ |
2 | ||
| 81271-2031002 |
ST16#..LB SUPER RED,3E5,COLORED |
2 | ||
| 81271-2031013 |
ST16#..LB GRAY-M,168,COLORED |
2 | ||
| 81271-2031008 |
ST16#..LB SUPER WHITE,040,COLORED |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20210 |
ST16# |
2 | ||
| 81277D - REFLECTOR, LICENSE PLATE LAMP | ||||
| 81277-20210 |
ST16#..LB |
2 | ||
| Common parts | ||||
| 81279-24010 | ||||
| 93510-74025 | ||||
