ST160-BLPSL (1987)
Toyota Celica
Production
Aug 1987
-
May 1988
Engine
1SILU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

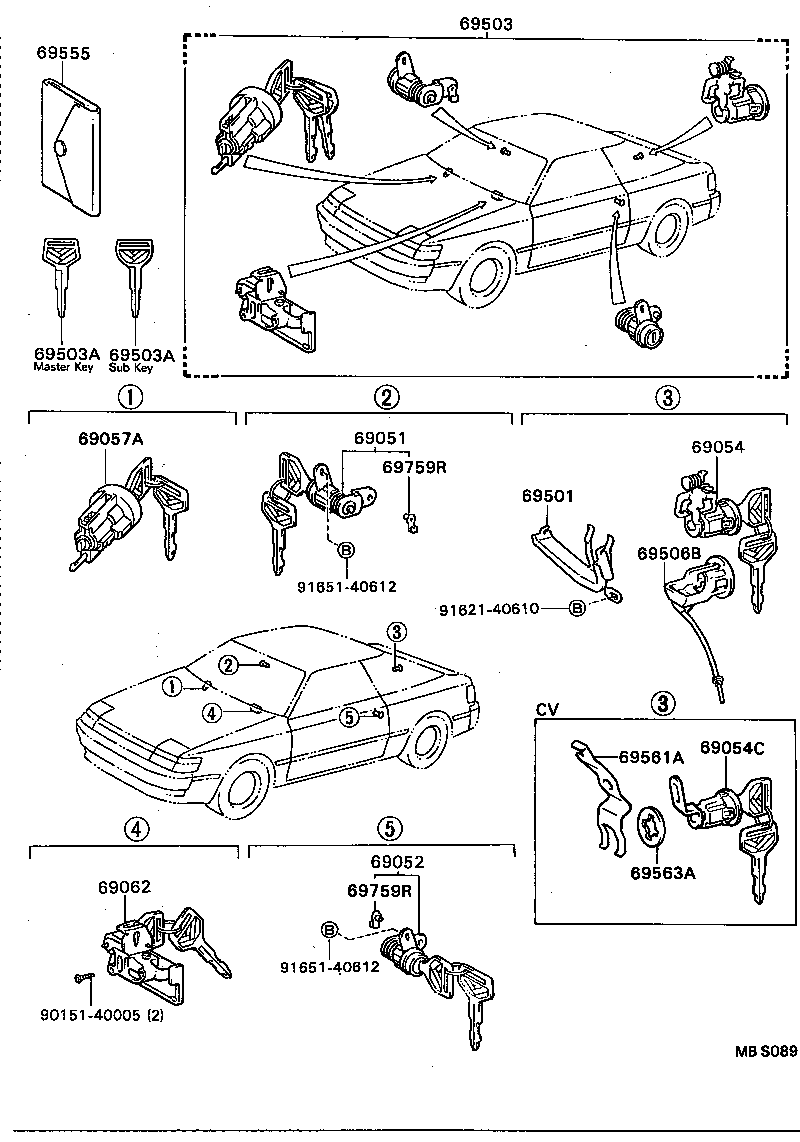

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-20130 |
ST16#..LB |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-20130 |
ST16#..LB |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-20181 |
ST16#..LB |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20070 |
ST160,162,163..GT,ST,SX |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-20070 |
ST16#..LB |
1 | ||
| 69501 - RETAINER SUB-ASSY, BACK DOOR CYLINDER | ||||
| 69501-20030 |
ST16#..LB |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-20471 |
ST160,162,163..GT,ST,SX |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00114 |
ST16#..LB ｻﾌﾞｷｰ |
1 | ||
| 90999-00113 |
ST16#..LB ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00112 |
ST16#..LB ﾏｽﾀｰｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00114 |
ST16#..LB ｻﾌﾞｷｰ |
1 | ||
| 90999-00113 |
ST16#..LB ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00112 |
ST16#..LB ﾏｽﾀｰｷｰ |
1 | ||
| 69506B - HOSE SUB-ASSY, BACK DOOR LOCK CYLINDER | ||||
| 69506-20010 |
ST16#..LB |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
ST16# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30050 |
ST16# 左側 |
1 | ||
| 69759-30040 |
ST16# 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30050 |
ST16# 左側 |
1 | ||
| 69759-30040 |
ST16# 右側 |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
