ST160-BLPSL (1987)

Toyota Celica

Production Aug 1987 - May 1988
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8805)1SILU

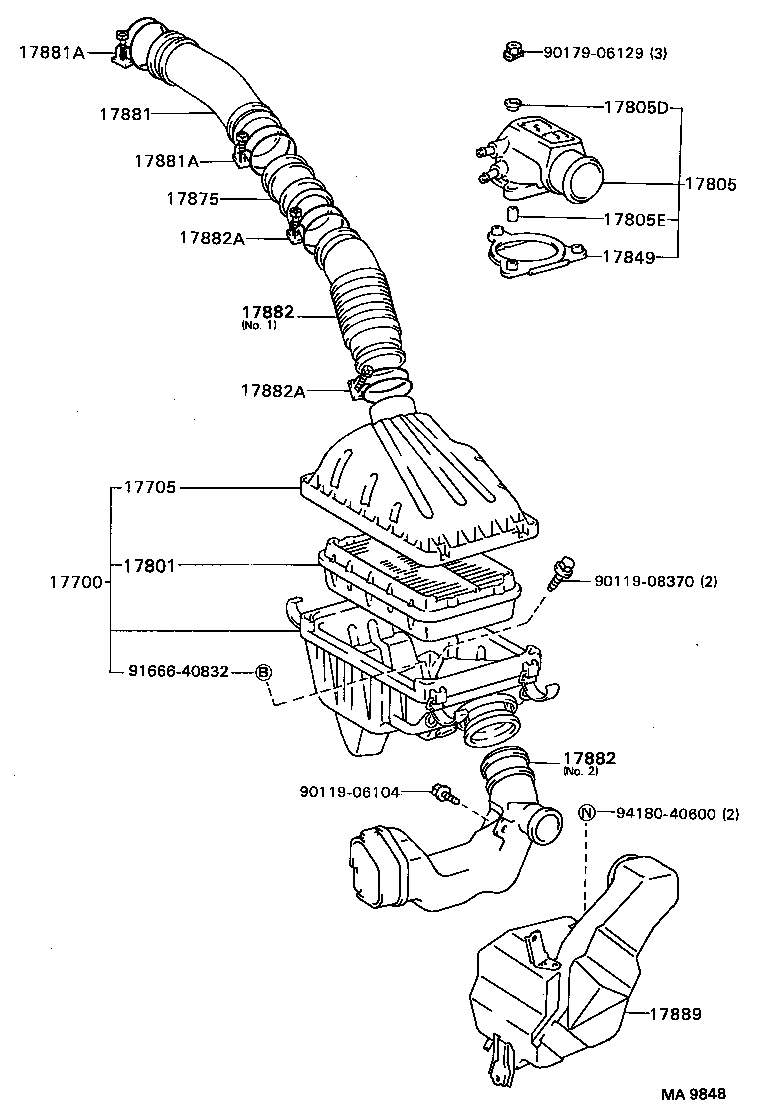

Click highlighted areas on diagram

diagram 17700 17705 17801 17805 17805D 17805E 17849 17875 17881 17881A 17881A 17882 17882 17882A 17882A 17889 9011906104 9011908370 9017906129 9166640832 9418040600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-63100

1SILU,4SFI..ST160,163

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63060

1SILU,4SFI..ST160,163

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

1SILU,3SFE,4SFI..ST160,162,163

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-63010

1SILU..ST160

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12011

1SILU..ST160

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06029

1SILU..ST160

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-63011

1SILU..ST160

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-63010

1SILU..ST160

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63030

1SILU..ST160

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1SILU..ST160

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1SILU..ST160

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-20110

1SILU..ST160

NO.2

 1
17882-63080

1SILU..ST160

NO.1

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-20110

1SILU..ST160

NO.2

 1
17882-63080

1SILU..ST160

NO.1

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1SILU..ST160

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1SILU..ST160

 2
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-20010

1SILU,3SGELU..ST160,162

 1
Common parts
90119-06104
90119-08370
90179-06129
91666-40832
94180-40600
