ST160-BLPEL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

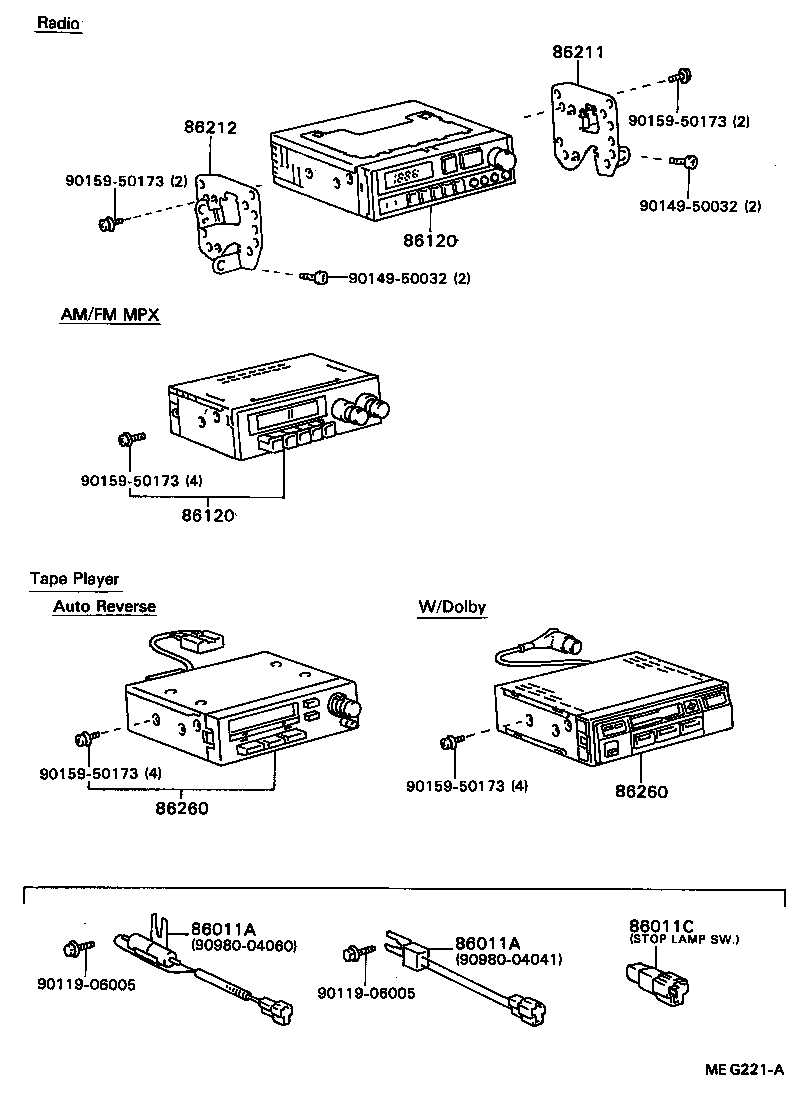

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86120 86120 86211 86212 86260 86260 9011906005 9011906005 9014950032 9014950032 9015950173 9015950173 9015950173 9015950173 9015950173 9098004041 9098004060
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04060

AT160,ST16#

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04060

AT160,ST16#

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

AT160,ST16#

STOP LAMP SW

 1
86120 - RECEIVER ASSY, RADIO
86120-19016

AT160,ST160,162..GT,ST

FUJITSU TEN,AM/FM MPX 5PB

 1
86120-20310

AT160,ST160,162..GT,ST,SX

*17

 1
86120-20550

ST16#..GT,GT4,SX

*20

 1
86120 - RECEIVER ASSY, RADIO
86120-19016

AT160,ST160,162..GT,ST

FUJITSU TEN,AM/FM MPX 5PB

 1
86120-20310

AT160,ST160,162..GT,ST,SX

*17

 1
86120-20550

ST16#..GT,GT4,SX

*20

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

AT160,ST16#

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

AT160,ST16#

 1
86260 - TAPE PLAYER ASSY
86260-19045

AT160,ST16#..GT,ST,SV

AUTO REVERSE

 1
86260-14271

AT160,ST160,162..GT,ST,SV

AUTO REVERSE

 1
86260-20100

AT160,ST160,162..GT,ST,SX

W/DOLBY & GRAPHIC EQUALIZER

 1
86260-19045

AT160,ST16#..GT,ST

AUTO REVERSE

 1
86260-20090

AT160,ST160,162..GT,ST,SX

W/DOLBY

 1
86260 - TAPE PLAYER ASSY
86260-19045

AT160,ST16#..GT,ST,SV

AUTO REVERSE

 1
86260-14271

AT160,ST160,162..GT,ST,SV

AUTO REVERSE

 1
86260-20100

AT160,ST160,162..GT,ST,SX

W/DOLBY & GRAPHIC EQUALIZER

 1
86260-19045

AT160,ST16#..GT,ST

AUTO REVERSE

 1
86260-20090

AT160,ST160,162..GT,ST,SX

W/DOLBY

 1
Common parts
90119-06005
90149-50032
90159-50173
90980-04041
90980-04060
