ST160-BLPEL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

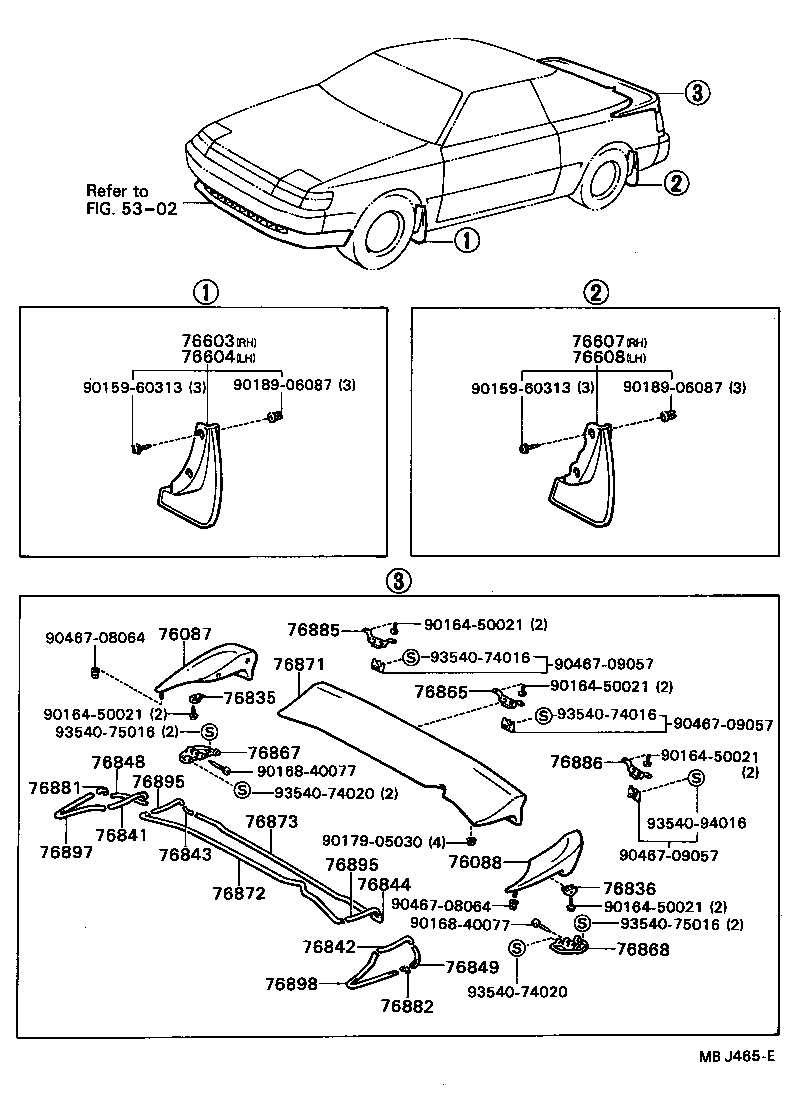

Click highlighted areas on diagram

diagram 5302 76087 76088 76603 76604 76607 76608 76835 76836 76841 76842 76843 76844 76848 76849 76865 76867 76868 76871 76872 76873 76881 76882 76885 76886 76895 76895 76897 76898 9015960313 9015960313 9016450021 9016450021 9016450021 9016450021 9016450021 9016840077 9016840077 9017905030 9018906087 9018906087 9046708064 9046708064 9046709057 9046709057 9046709057 9354074016 9354074016 9354074020 9354074020 9354075016 9354075016 9354094016
Part # Description Qty Price
76087 - SPOILER SUB-ASSY, REAR NO.1
76087-20900

AT160,ST160,162..GT,ST,SX

 1
76088 - SPOILER SUB-ASSY, REAR NO.2
76088-20900

AT160,ST160,162..GT,ST,SX

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-29075

AT160,ST160,162

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-29075

AT160,ST160,162

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-29095

AT160,ST16#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-29095

AT160,ST16#

 1
76835 - RETAINER, REAR SPOILER SIDE, NO.1
76835-20020

AT160,ST16#..GT,GT4,ST,SX

 1
76836 - RETAINER, REAR SPOILER SIDE, NO.2
76836-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76841 - PROTECTOR, REAR SPOILER SIDE, NO.5 RH
76841-20020

AT160,ST16#..GT,GT4,ST,SX

 1
76842 - PROTECTOR, REAR SPOILER SIDE, NO.5 LH
76842-20020

AT160,ST16#..GT,GT4,ST,SX

 1
76843 - PROTECTOR, REAR SPOILER, NO.11 RH
76843-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76844 - PROTECTOR, REAR SPOILER, NO.11 LH
76844-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76848 - PROTECTOR, REAR SPOILER, NO.12 RH
76848-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76849 - PROTECTOR, REAR SPOILER, NO.12 LH
76849-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76865 - RETAINER, REAR SPOILER, NO.1
76865-20060

AT160,ST16#..GT,GT4,ST,SX

 3
76867 - RETAINER, REAR SPOILER SIDE, RH
76867-20071

AT160,ST16#..GT,GT4,ST,SX

 1
76867-20070

AT160,ST16#..GT,ST,SX

 1
76868 - RETAINER, REAR SPOILER SIDE, LH
76868-20060

AT160,ST16#..GT,ST,SX

 1
76868-20061

AT160,ST16#..GT,GT4,ST,SX

 1
76871 - SPOILER, REAR
76871-20900

AT160,ST16#..GT,GT4,ST,SX

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76803-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76872-20900

AT160,ST16#..GT,ST,SX

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20040

AT160,ST16#..GT,GT4,ST,SX

 1
76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76881-20030

AT160,ST16#..GT,GT4,ST,SX

 1
76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76882-20030

AT160,ST16#..GT,GT4,ST,SX

 1
76885 - RETAINER, REAR SPOILER, NO.5
76885-20040

AT160,ST16#..GT,GT4,ST,SX

 1
76886 - RETAINER, REAR SPOILER, NO.6
76886-20020

AT160,ST16#..GT,GT4,ST,SX

 1
76895 - PROTECTOR, REAR SPOILER, NO.5
76895-20030

AT160,ST16#..GT,GT4,ST,SX

 2
76895 - PROTECTOR, REAR SPOILER, NO.5
76895-20030

AT160,ST16#..GT,GT4,ST,SX

 2
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-20900

AT160,ST16#..GT,ST,SX

 1
76807-20010

AT160,ST16#..GT,GT4,ST,SX

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76898-20900

AT160,ST16#..GT,ST,SX

 1
76808-20010

AT160,ST16#..GT,GT4,ST,SX

 1
Common parts
90159-60313
90164-50021
90168-40077
90179-05030
90189-06087
90467-08064
90467-09057
93540-74016
93540-74020
93540-75016
93540-94016
Linked diagrams
5302
