ST160-BLPEL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

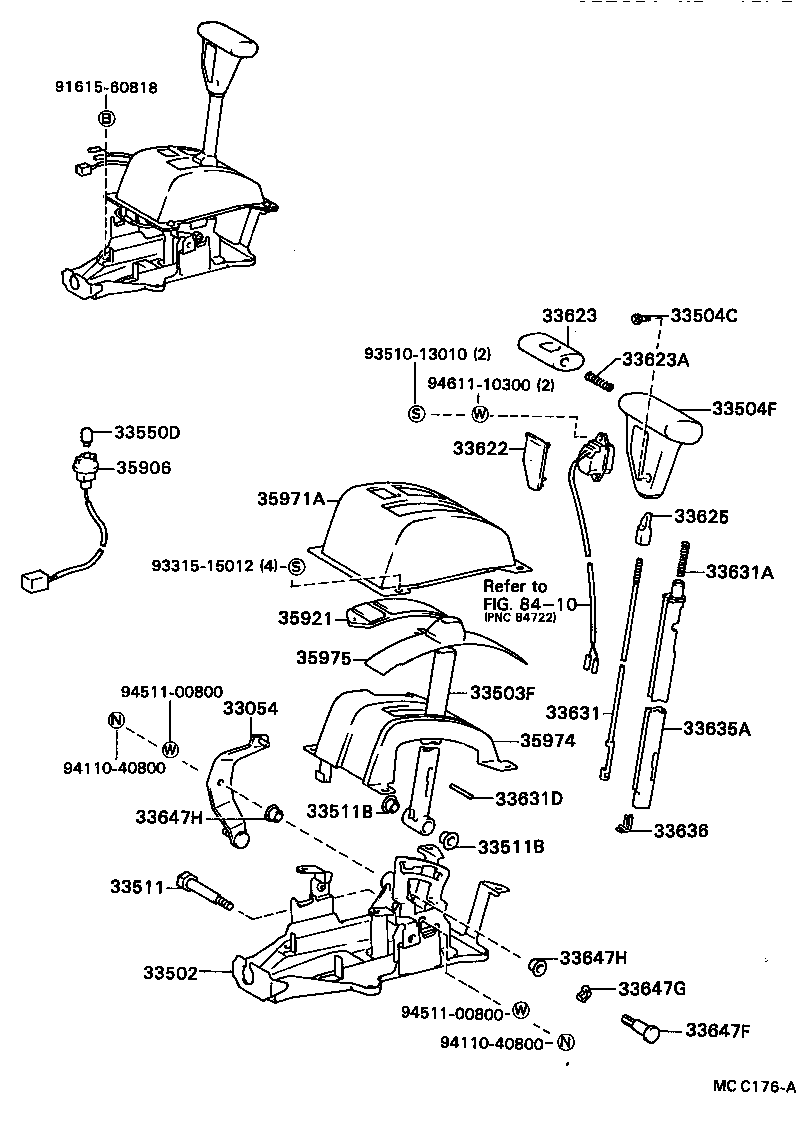

ILLUST NO. 1 OF 2(8508- )4FC

Click highlighted areas on diagram

diagram 33054 33502 33503F 33504C 33504F 33511 33511B 33511B 33550D 33622 33623 33623A 33625 33631 33631A 33631D 33635A 33636 33647F 33647G 33647H 33647H 35906 35921 35971A 35974 35975 8410 9161560818 9331515012 9351013010 9411040800 9411040800 9451100800 9451100800 9461110300
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-20021

AT160,ST160,162..4FC

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-20220

AT160,ST160,162..4FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-20290

AT160,ST160,162..4FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

AT160,ST160,162..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204003

AT160,ST160,162..4FC

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
33542-3204024

AT160,ST160,162..4FC

DEEP BLUE,DEEP BLUE,TRIM8#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-20240

AT160,ST160,162..4FC

 1
33511B - BUSH (FOR CONTROL SHAFT)
90385-11003

AT160,ST160,162..4FC

 2
33511B - BUSH (FOR CONTROL SHAFT)
90385-11003

AT160,ST160,162..4FC

 2
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

AT160,ST160,162..4FC

12V 3.4W

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601013

AT160,ST160,162..4FC

SHAD0W GRAY,GRAY,TRIM1#

 1
33622-1601024

AT160,ST160,162..4FC

DEEP BLUE,BLUE,TRIM8#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1602033

AT160,ST160,162..4FC

SHADOW GRAY,GRAY,TRIM1#

 1
33623-1602013

AT160,ST16#..4FC

SHADOW GRAY,GRAY,TRIM1#

 1
33623-1602014

AT160,ST160,162..4FC

DEEP BLUE,BLUE,TRIM8#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

AT160,ST160,162..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-16020

AT160,ST160,162..4FC

 1
33631 - ROD, DETENT
33631-20080

AT160,ST160,162..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08017

AT160,ST160,162..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04001

AT160,ST160,162..4FC

 1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-20020

AT160,ST160,162..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

AT160,ST160,162..4FC

 1
33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
33647-32010

AT160,ST160,162..4FC

 1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-10003

AT160,ST160,162..4FC

 1
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-10012

AT160,ST160,162..4FC

 2
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-10012

AT160,ST160,162..4FC

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12050

AT160,ST160,162..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-20210

AT160,ST160,162..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-20110

AT160,ST160,162..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20080

AT160,ST160,162..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20060

AT160,ST160,162..4FC

 1
Common parts
91615-60818
93315-15012
93510-13010
94110-40800
94511-00800
94611-10300
Linked diagrams
8410

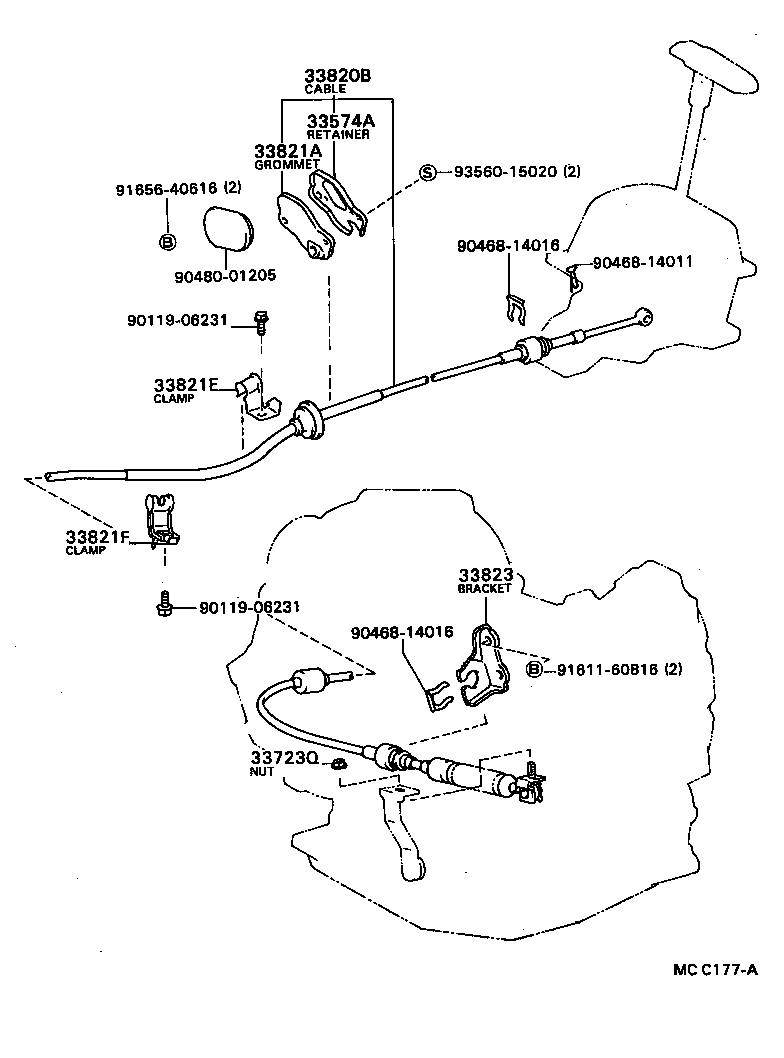

ILLUST NO. 2 OF 2(8508- )4FC

Click highlighted areas on diagram

diagram 33574A 33723Q 33820B 33821A 33821E 33821F 33823 9011906231 9011906231 9046814011 9046814016 9046814016 9048001205 9161160816 9165640616 9356015020
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-20120

AT160,ST160,162..4FC

CHKK

 1
33574-20130

AT160,ST160,162..4FC

TSK

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08061

AT160,ST160,162..4FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-20171

ST160..4FC

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01328

AT160,ST160,162..4FC

TSK

 1
90480-01327

AT160,ST160,162..4FC

CHKK

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01075

ST160..4FC

 1
33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90949-01070

ST160..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-32010

ST16#..4FC

 1
33823-32011

ST160,162..4FC

 1
Common parts
90119-06231
90468-14011
90468-14016
90480-01205
91611-60816
91656-40616
93560-15020
