ST160-BLMSL (1987)

Toyota Celica

Production Aug 1987 - May 1988
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LB

Click highlighted areas on diagram

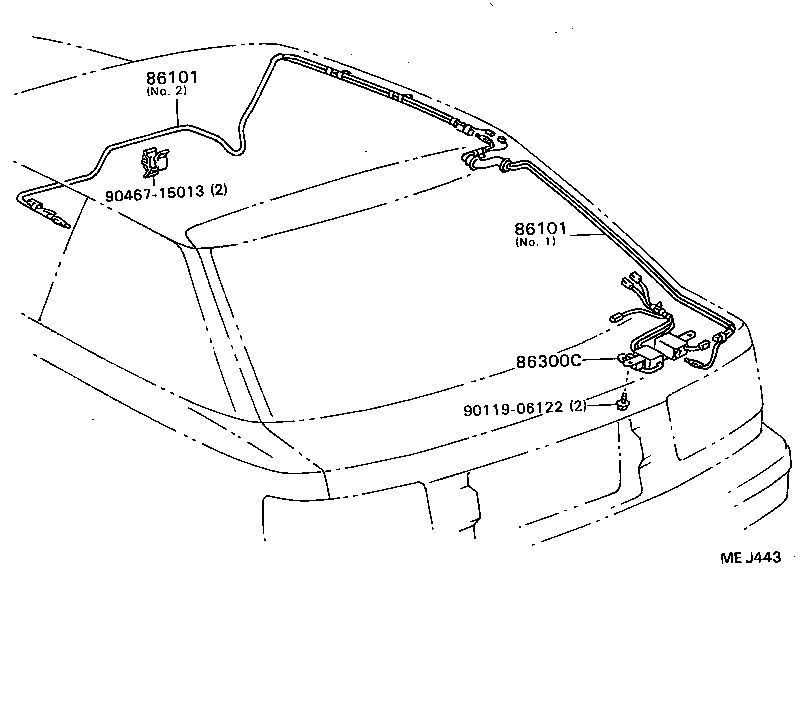

diagram 86101 86101 86300C 9011906122 9046715013
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20200

ST160,162,165..LB

ｱﾘ(ｻﾝ ﾙ-ﾌ),NO.2

 1
86101-20120

ST16#..LB

NO.1

 1
86101-20130

ST16#..LB

NO.2

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20200

ST160,162,165..LB

ｱﾘ(ｻﾝ ﾙ-ﾌ),NO.2

 1
86101-20120

ST16#..LB

NO.1

 1
86101-20130

ST16#..LB

NO.2

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20180

ST16#..LB

 1
Common parts
90119-06122
90467-15013
