ST160-BLMSL (1987)
Toyota Celica
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1701004 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 71811-1701011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1701004 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 71811-1701011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407044 |
ST160;ST163..4FC;ST163..5F..SX DARK BLUE,TRIM8# |
1 | ||
| 71812-1407011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71812-1407034 |
ST160 DEEP BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407044 |
ST160;ST163..4FC;ST163..5F..SX DARK BLUE,TRIM8# |
1 | ||
| 71812-1407011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 71812-1407034 |
ST160 DEEP BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20180 |
ST160,163 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20180 |
ST160,163 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20160 |
ST160,163 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20160 |
ST160,163 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20250 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST160,162,163 |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20180 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20020 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20020 |
ST160,162,163..CV,ST,SX |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST160,162,163 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST160,162,163 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST160,162,163 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701011 |
ST16# BLACK,TRIM2# |
1 | ||
| 72457-1701004 |
ST163..4FC;ST160,162..LB;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701011 |
ST16# BLACK,TRIM2# |
1 | ||
| 72457-1701004 |
ST163..4FC;ST160,162..LB;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72496-3201014 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8# |
1 | ||
| 72496-3201001 |
ST160,162,163..CV,ST,SX BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72526-1203024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72526-1203024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72526-1203024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72526-1203024 |
ST160;ST163..4FC;ST163..5F..SX DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72525-1209011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,右側 |
1 | ||
| 72526-1203011 |
ST160,162,163..CV,ST,SX BLACK,TRIM2#,左側 |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
ST160,162,163..CV,ST,SX |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10290 | ||||
| 90149-40015 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||

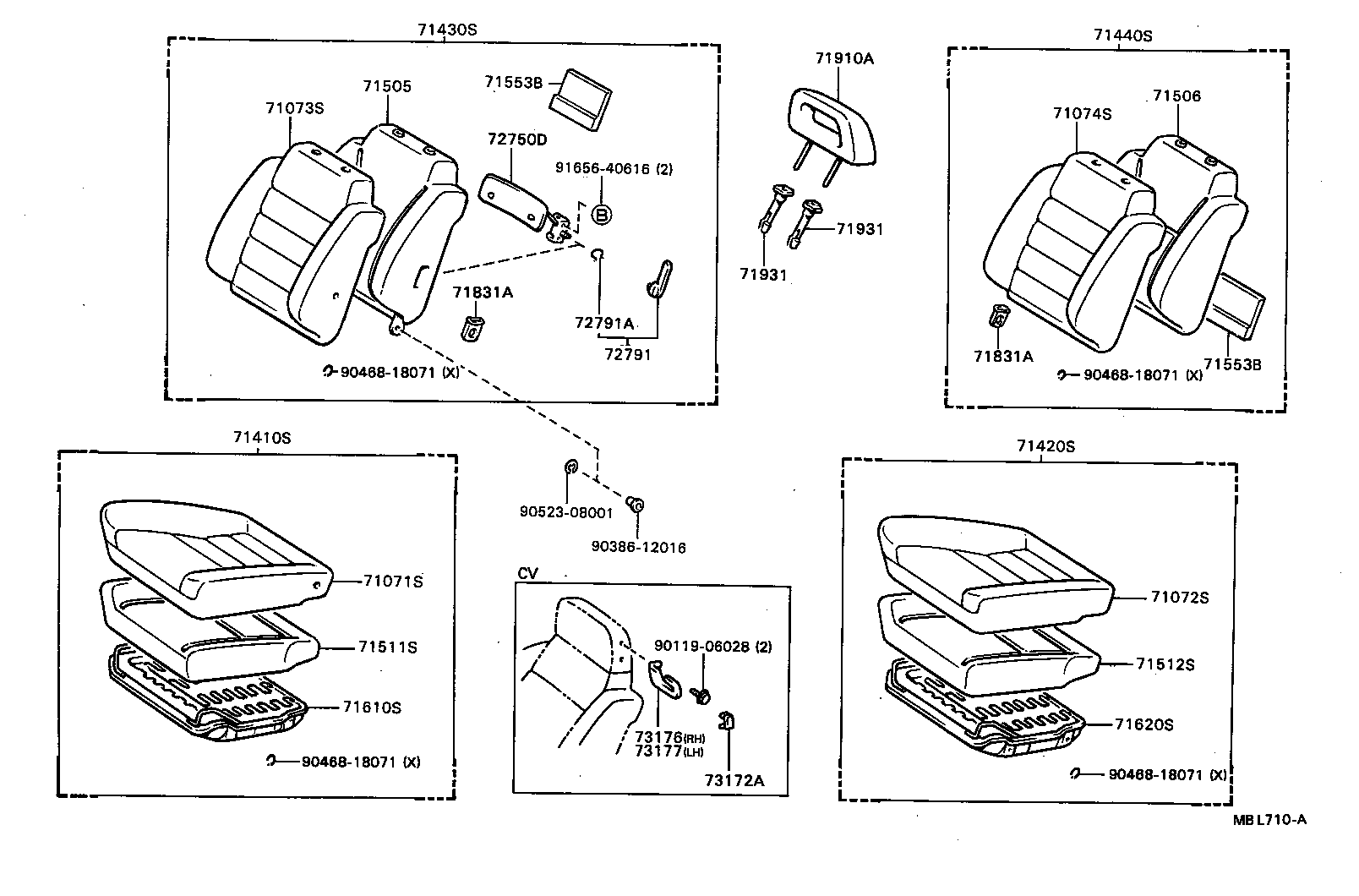

ILLUST NO. 1 OF 2(8708- )ST160,163 ; (8710- )CV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B85104 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B85101 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B12101 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71072-2B12104 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B74204 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B74201 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B41101 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71074-2B41104 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B75201 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71410-2B75204 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B21101 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71420-2B21104 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B64201 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71430-2B64204 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B39104 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B39101 |
ST160,163..ST BLACK,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20011 |
ST160,163..ST |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20010 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20110 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20110 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20380 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20270 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
ST160,162,163..CV,ST,SX |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2069104 |
ST160..ST;ST163..4FC..ST DEEP BLUE,TRIM8# |
2 | ||
| 71910-2069101 |
ST160,163..ST BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001044 |
ST160;ST163..4FC;ST163..5F..SX ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
ST160,162,163..CV,ST,SX ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
ST160,162,163..CV,ST,SX ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006044 |
ST160;ST163..4FC;ST163..5F..SX ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001044 |
ST160;ST163..4FC;ST163..5F..SX ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
ST160,162,163..CV,ST,SX ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
ST160,162,163..CV,ST,SX ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006044 |
ST160;ST163..4FC;ST163..5F..SX ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90119-06028 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91656-40616 | ||||
