ST160-BLMSL (1987)

Toyota Celica

Production Aug 1987 - May 1988
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LB

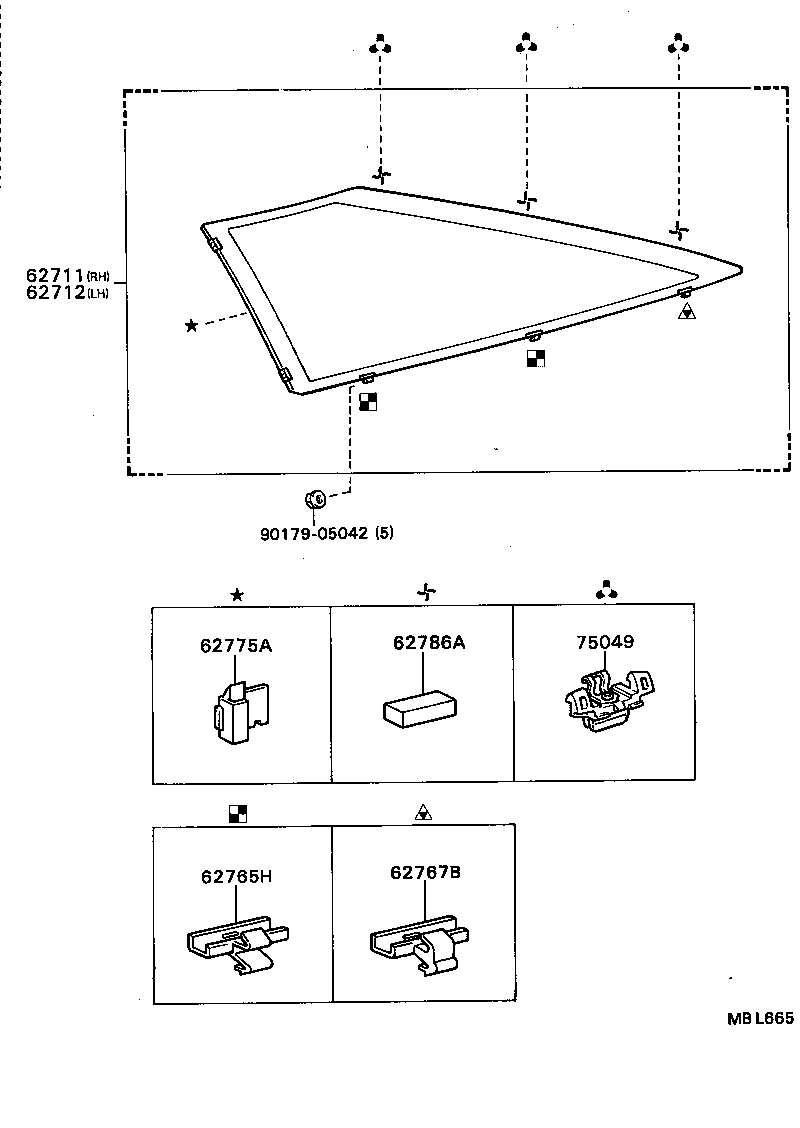

Click highlighted areas on diagram

diagram 62711 62712 62765H 62767B 62775A 62786A 75049 9017905042
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62710-20080

ST16#..LB

*TT,厚さ=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62720-20080

ST16#..LB

*TT,厚さ=3.5

 1
62765H - RETAINER, QUARTER WINDOW GLASS, LOWER
62765-20040

ST16#..LB

 1
62767B - RETAINER, QUARTER WINDOW GLASS, REAR
62767-20020

ST16#..LB

 1
62775A - CLIP, QUARTER WINDOW
62775-20010

ST16#..LB

 2
62786A - SPACER, QUARTER WINDOW GLASS, NO.2
62786-12010

ST16#..LB

 2
75049 - CLIP SUB-ASSY, QUARTER WINDOW, NO.2
75049-20050

ST16#..LB

 6
Common parts
90179-05042
