ST160-BLMSL (1987)

Toyota Celica

Production Aug 1987 - May 1988
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST

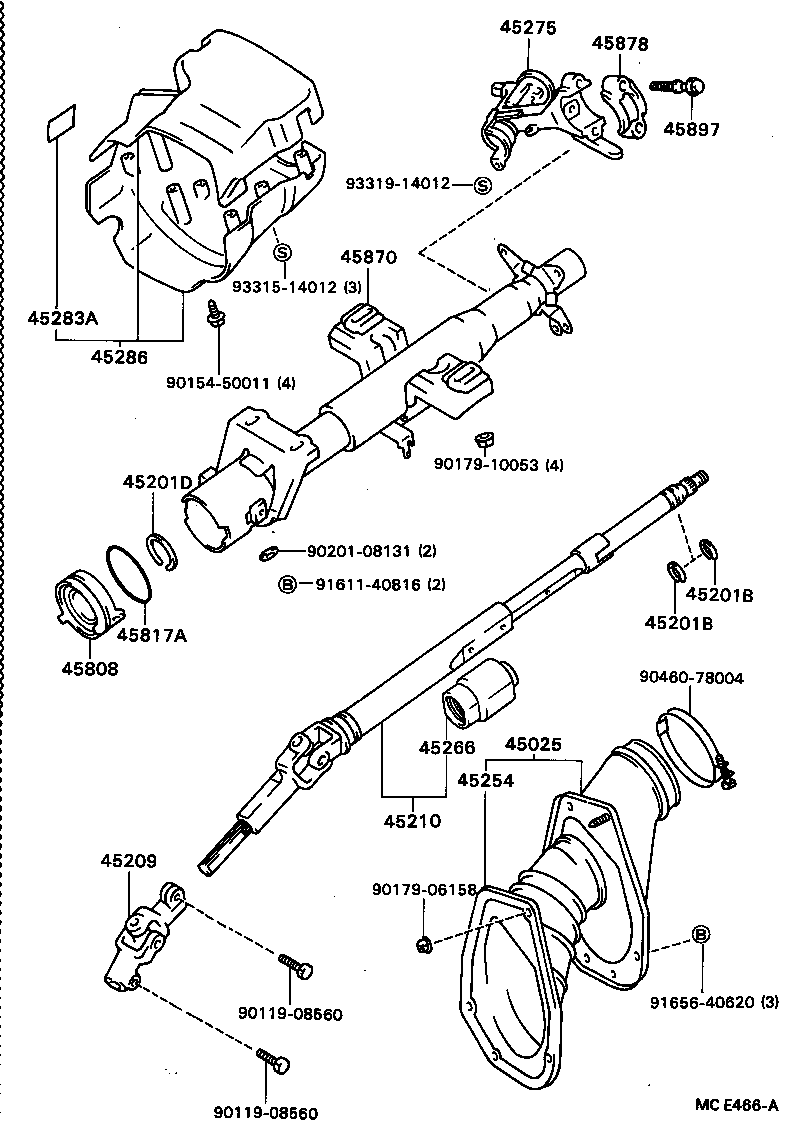

Click highlighted areas on diagram

diagram 45025 45201B 45201B 45201D 45209 45210 45254 45266 45275 45283A 45286 45808 45817A 45870 45878 45897 9011908560 9011908560 9015450011 9017906158 9017910053 9020108131 9046078004 9161140816 9165640620 9331514012 9331914012
Part # Description Qty Price
45025 - COVER, STEERING INTERMEDIATE SHAFT
45025-20150

ST16#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ST160,163..ST

厚さ=1.20

 2
90520-17196

ST160,163..ST

厚さ=1.35−1.45

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ST160,163..ST

厚さ=1.20

 2
90520-17196

ST160,163..ST

厚さ=1.35−1.45

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

ST16#

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32020

ST16#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-20190

ST160,163..ST

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-20100

ST16#

 1
45266 - COVER, STEERING INTERMEDIATE SHAFT DUST
45266-20010

ST16#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-20280

ST160,163..ST

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010

ST16#

 1
45286 - COVER, STEERING COLUMN
45287-2090101

ST160,163..ST

BLACK,TRIM2#

 1
45287-2090104

ST160..ST;ST163..4FC..ST

DEEP BLUE,TRIM8#

 1
45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST
45808-20030

ST16#

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
90301-54002

ST16#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-20160

ST160,163..ST

 1
45878 - BRACKET, STEERING COLUMN UPPER SUPPORT
45878-32030

ST160,163..ST

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ST160,163..ST

 2
Common parts
90119-08560
90154-50011
90179-06158
90179-10053
90201-08131
90460-78004
91611-40816
91656-40620
93315-14012
93319-14012
