ST160-BLMSL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 67601 67601 67601A 67601A 67602 67602 67665 67777 67777 67778 68170 68170 7401 7401 7403 7403 8401 9014960057 9014960057 9016460014 9016460014 9016840076 9016840076 9016840076 9018906018 9018906018 9018906018 9018906018 9351054016
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2B61003

ST160..ST

GRAY,SHADOW GRAY,TRIM1#

 1
67610-2B61004

ST160..ST

BLUE,DEEP BLUE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2B61003

ST160..ST

GRAY,SHADOW GRAY,TRIM1#

 1
67610-2B61004

ST160..ST

BLUE,DEEP BLUE,TRIM8#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AT160,ST16#

 22
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AT160,ST16#

 22
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2D12003

ST160..ST

GRAY,SHADOW GRAY,TRIM1#

 1
67620-2D12004

ST160..ST

BLUE,DEEP BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2D12003

ST160..ST

GRAY,SHADOW GRAY,TRIM1#

 1
67620-2D12004

ST160..ST

BLUE,DEEP BLUE,TRIM8#

 1
67665 - REFLECTOR, FRONT DOOR TRIM, RH
67665-20010

AT160,ST160,162..GT,ST

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67770-2004003

AT160,ST16#..GT,GT4,ST,SX

GRAY,SHADOW GRAY,TRIM1#

 1
67770-2004004

AT160,ST160,162..GT,ST,SX

BLUE,DEEP BLUE,TRIM8#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67770-2004003

AT160,ST16#..GT,GT4,ST,SX

GRAY,SHADOW GRAY,TRIM1#

 1
67770-2004004

AT160,ST160,162..GT,ST,SX

BLUE,DEEP BLUE,TRIM8#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-20310

AT160,ST16#

RH

 1
68220-20240

AT160,ST16#

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-20310

AT160,ST16#

RH

 1
68220-20240

AT160,ST16#

LH

 1
Common parts
90149-60057
90164-60014
90168-40076
90189-06018
93510-54016
Linked diagrams
7401
7403
8401

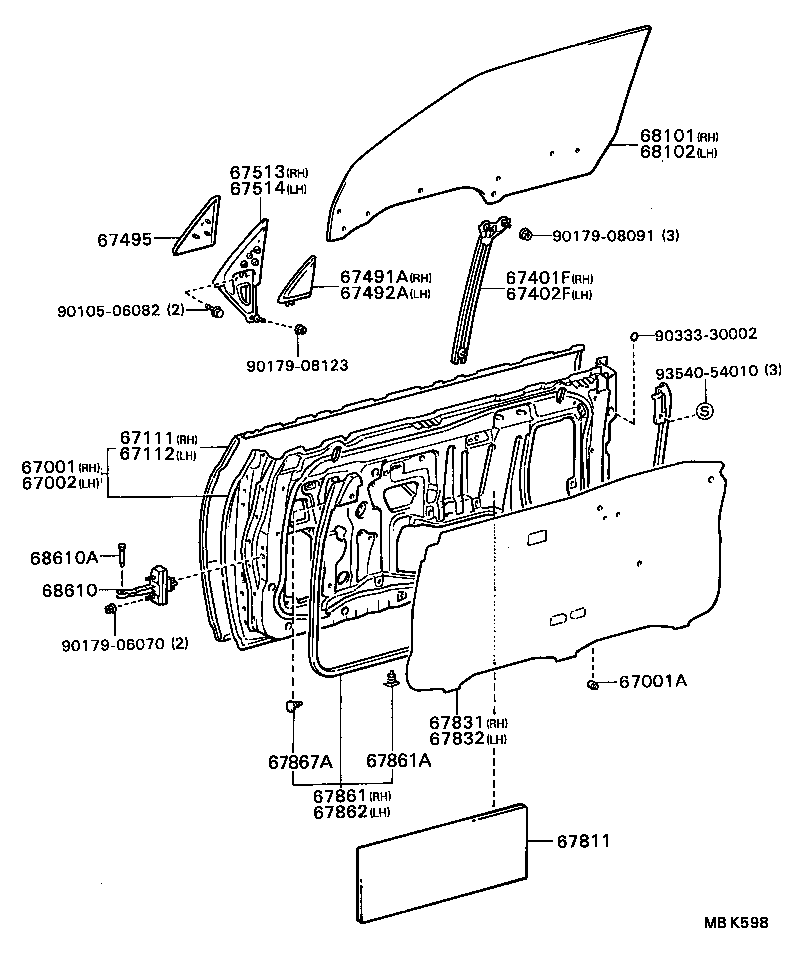

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67401F 67402F 67491A 67492A 67495 67513 67514 67811 67831 67832 67861 67861A 67862 67867A 68101 68102 68610 68610A 9010506082 9017906070 9017908091 9017908123 9033330002 9354054010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-20650

AT160,ST16#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09006

AT160,ST16#

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-20620

AT160,ST16#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-20160

AT160,ST16#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-20180

AT160,ST16#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-20160

AT160,ST16#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-20150

AT160,ST16#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20120

AT160,ST16#

 1
67491-20121

AT160,ST16#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20140

AT160,ST16#

 1
67492-20141

AT160,ST16#

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-20060

AT160,ST16#

RH

 1
67496-20030

AT160,ST16#

LH

 1
67513 - BRACKET, FRONT DOOR MIRROR, RH
67513-20050

AT160,ST16#

 1
67513-20051

AT160,ST16#

 1
67514 - BRACKET, FRONT DOOR MIRROR, LH
67514-20050

AT160,ST16#

 1
67514-20051

AT160,ST16#

 1
67811 - PAD, FRONT DOOR SILENCER
67812-12010

AT160,ST16#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-20290

AT160,ST16#

W/O *EL

 1
67831-20310

AT160,ST16#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-20140

AT160,ST16#

 1
67832-20130

AT160,ST16#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20250

AT160,ST16#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

AT160,ST16#

 42
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20250

AT160,ST16#

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67869-30020

AT160,ST16#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20400

AT160,ST16#

*TT,厚さ=5.0,*TT,T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20320

AT160,ST16#

*TT,厚さ=5.0,*TT,T=5.0

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20050

AT160,ST16#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-90K00

AT160,ST16#

 2
Common parts
90105-06082
90179-06070
90179-08091
90179-08123
90333-30002
93540-54010
