ST160-BLMSL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

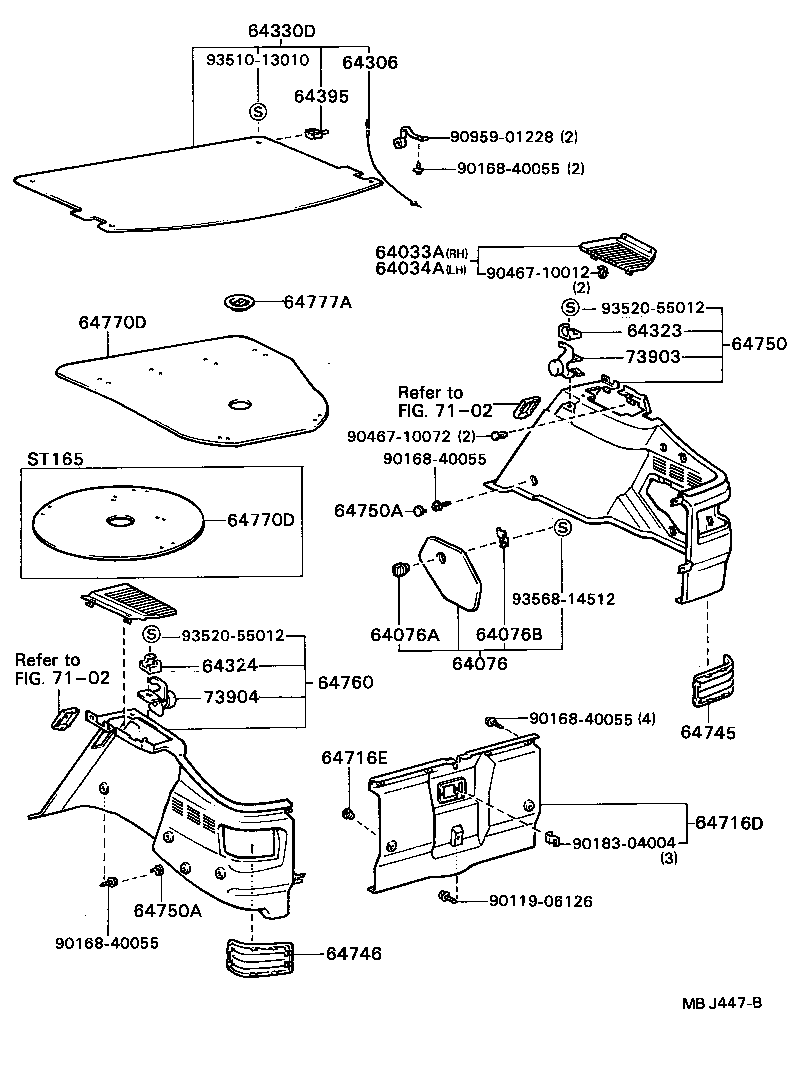

Click highlighted areas on diagram

diagram 64033A 64034A 64076 64076A 64076B 64306 64323 64324 64330D 64395 64716D 64716E 64745 64746 64750 64750A 64750A 64760 64770D 64770D 64777A 7102 7102 73903 73904 9011906126 9016840055 9016840055 9016840055 9016840055 9018304004 9046710012 9046710072 9095901228 9351013010 9352055012 9352055012 9356814512
Part # Description Qty Price
64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2006004

AT160,ST160,162..GT,ST,SV

W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#

 1
64033-2007003

AT160,ST16#..GT,GT4,ST,SX

W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#

 1
64033-2006003

AT160,ST160,162..GT,ST,SV

W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#

 1
64033-2007004

AT160,ST160,162..GT,ST,SX

W/SPEAKER,BLUE,DEEP BLUE,TRIM8#

 1
64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-2007004

AT160,ST160,162..GT,ST,SX

W/SPEAKER,BLUE,DEEP BLUE,TRIM8#

 1
64034-2006004

AT160,ST160,162..GT,ST,SV

W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#

 1
64034-2006003

AT160,ST160,162..GT,ST,SV

W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#

 1
64034-2007003

AT160,ST16#..GT,GT4,ST,SX

W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#

 1
64076 - COVER, DECK TRIM SIDE JACK
64076-2001004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64076-2001003

AT160,ST160,162

GRAY,SHADOW GRAY,TRIM1#

 1
64076A - KNOB, DECK TRIM SIDE JACK COVER
64982-1602044

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64982-1602023

AT160,ST16#

GRAY,GRAY,TRIM1#

 1
64076B - STOPPER, DECK TRIM SIDE JACK COVER
64768-14020

AT160,ST16#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-20020

AT160,ST16#..GT,GT4,ST,SX

 2
64323 - CLAMP, PACKAGE TRAY TRIM, NO.1
64323-10010

AT160,ST16#

 1
64324 - CLAMP, PACKAGE TRAY TRIM, NO.2
64324-10010

AT160,ST16#

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-2072004

AT160,ST160,162..GT,ST,SX

BLUE,DEEP BLUE,TRIM8#

 1
64330-2072003

AT160,ST16#..GT,GT4,ST,SX

GRAY,SHADOW GRAY,TRIM1#

 1
64395 - PIN, PACKAGE TRAY TRIM HINGE
64395-16010

AT160,ST16#..GT,GT4,ST,SX

 2
64716D - COVER, DECK TRIM, REAR
64716-2016003

AT160,ST160,162

GRAY,SHADOW GRAY,TRIM1#

 1
64716-2016004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-0401104

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 2
90467-0401103

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 2
90467-0906804

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 2
90467-0906803

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 2
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-2003003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
64745-2003004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-2003003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
64746-2003004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64750 - PANEL ASSY, DECK SIDE TRIM, RH
64730-2007003

AT160,ST160,162

GRAY,SHADOW GRAY,TRIM1#

 1
64730-2007004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64750A - PLUG, HOLE(FOR DECK SIDE TRIM PANEL)
90950-0150304

AT160,ST160,162

BLUE,BLUE,TRIM8#

 6
90950-0150303

AT160,ST160,162

GRAY,SHADOW GRAY,TRIM1#

 6
64750A - PLUG, HOLE(FOR DECK SIDE TRIM PANEL)
90950-0150304

AT160,ST160,162

BLUE,BLUE,TRIM8#

 6
90950-0150303

AT160,ST160,162

GRAY,SHADOW GRAY,TRIM1#

 6
64760 - PANEL ASSY, DECK SIDE TRIM, LH
64740-2007004

AT160,ST160,162

BLUE,DEEP BLUE,TRIM8#

 1
64740-2007003

AT160,ST160,162

GRAY,SHADOW GRAY,TRIM1#

 1
64770D - COVER ASSY, SPARE WHEEL
64770-20070

AT160,ST16#

 1
64770-20080

AT160,ST160,162

 1
64770D - COVER ASSY, SPARE WHEEL
64770-20070

AT160,ST16#

 1
64770-20080

AT160,ST160,162

 1
64777A - CLAMP, SPARE WHEEL COVER
64777-32030

AT160,ST16#

 1
64777-32020

AT160,ST16#

 1
73903 - BRACKET SUB-ASSY, REAR SHELF, RH
73903-16010

AT160,ST16#

 1
73904 - BRACKET SUB-ASSY, REAR SHELF, LH
73904-16010

AT160,ST16#

 1
Common parts
90119-06126
90168-40055
90183-04004
90467-10012
90467-10072
90959-01228
93510-13010
93520-55012
93568-14512
Linked diagrams
7102
