ST160-BLMSL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST,SV

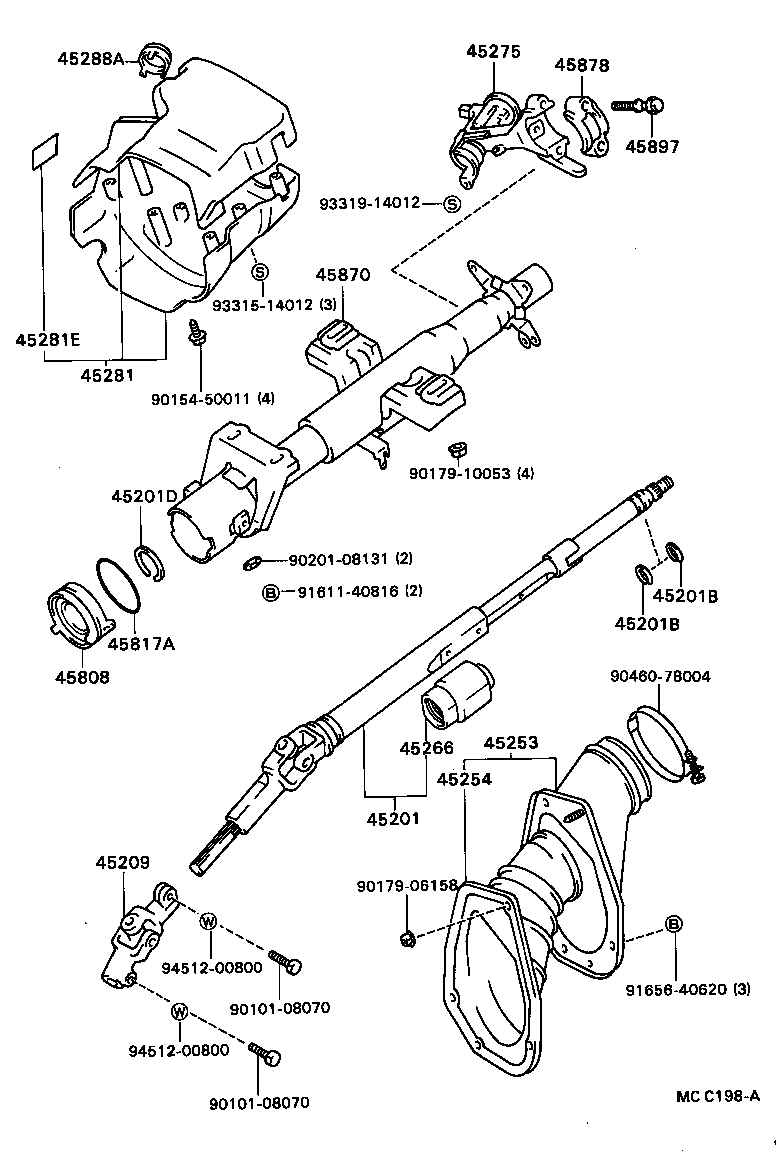

Click highlighted areas on diagram

diagram 45201 45201B 45201B 45201D 45209 45253 45254 45266 45275 45281 45281E 45288A 45808 45817A 45870 45878 45897 9010108070 9010108070 9015450011 9017906158 9017910053 9020108131 9046078004 9161140816 9165640620 9331514012 9331914012 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-20190

ST160..ST,SV

W/POWER STEERING

 1
45210-20170

ST160..ST,SV

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

ST160..ST,SV

厚さ=1.35−1.45,T=1.4

 2
90520-17042

AT160,ST160,162..GT,ST,SV

厚さ=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

ST160..ST,SV

厚さ=1.35−1.45,T=1.4

 2
90520-17042

AT160,ST160,162..GT,ST,SV

厚さ=1.20,T=1.2

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

AT160,ST16#

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32020

AT160,ST16#

W/POWER STEERING

 1
45253 - COVER, STEERING COLUMN HOLE
45025-20150

AT160,ST16#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-20100

AT160,ST16#

 1
45266 - COVER, STEERING INTERMEDIATE SHAFT DUST
45266-20010

AT160,ST16#

W/POWER STEERING

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-20280

ST160..ST,SV

 1
45281 - HOUSING, STEERING COLUMN
45287-2090103

ST160..ST,SV

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
45287-2090104

ST160..ST,SV

DEEP BLUE,DEEP BLUE,TRIM8#

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

AT160,ST16#

 1
45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST
45808-20030

AT160,ST16#

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
90301-54002

AT160,ST16#

 1
96711-24056

AT160,ST16#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-20160

ST160..ST,SV

 1
45878 - BRACKET, STEERING COLUMN UPPER SUPPORT
45878-20200

ST160..ST,SV

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ST160..ST,SV

 2
Common parts
90101-08070
90154-50011
90179-06158
90179-10053
90201-08131
90460-78004
91611-40816
91656-40620
93315-14012
93319-14012
94512-00800
