ST160-BLMNL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

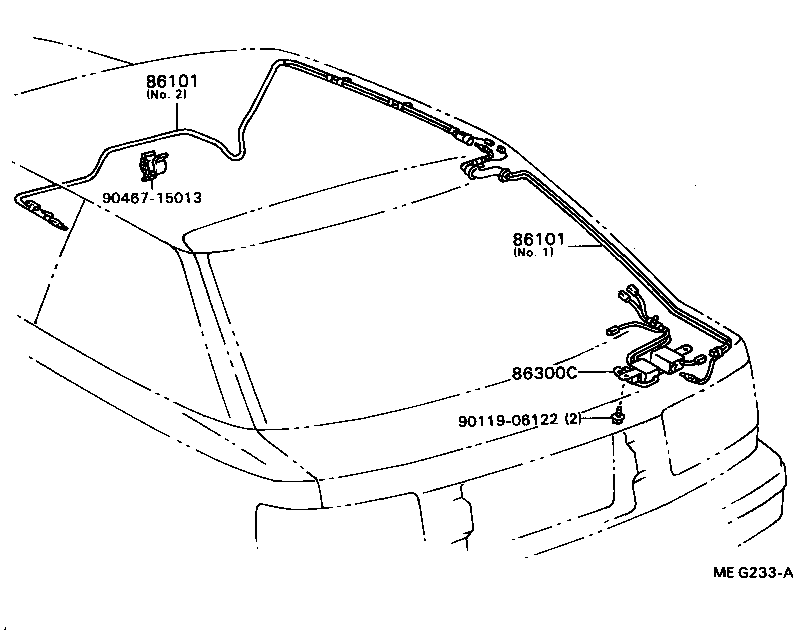

Click highlighted areas on diagram

diagram 86101 86101 86300C 9011906122 9046715013
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20200

AT160,ST160,162..GT,ST,SX

NO.2,W/SUN ROOF

 1
86101-20120

AT160,ST16#

NO.1

 1
86101-20130

AT160,ST16#

NO.2

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20200

AT160,ST160,162..GT,ST,SX

NO.2,W/SUN ROOF

 1
86101-20120

AT160,ST16#

NO.1

 1
86101-20130

AT160,ST16#

NO.2

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20180

AT160,ST16#

 1
Common parts
90119-06122
90467-15013
