ST160-BLMNL (1985)
Toyota Celica

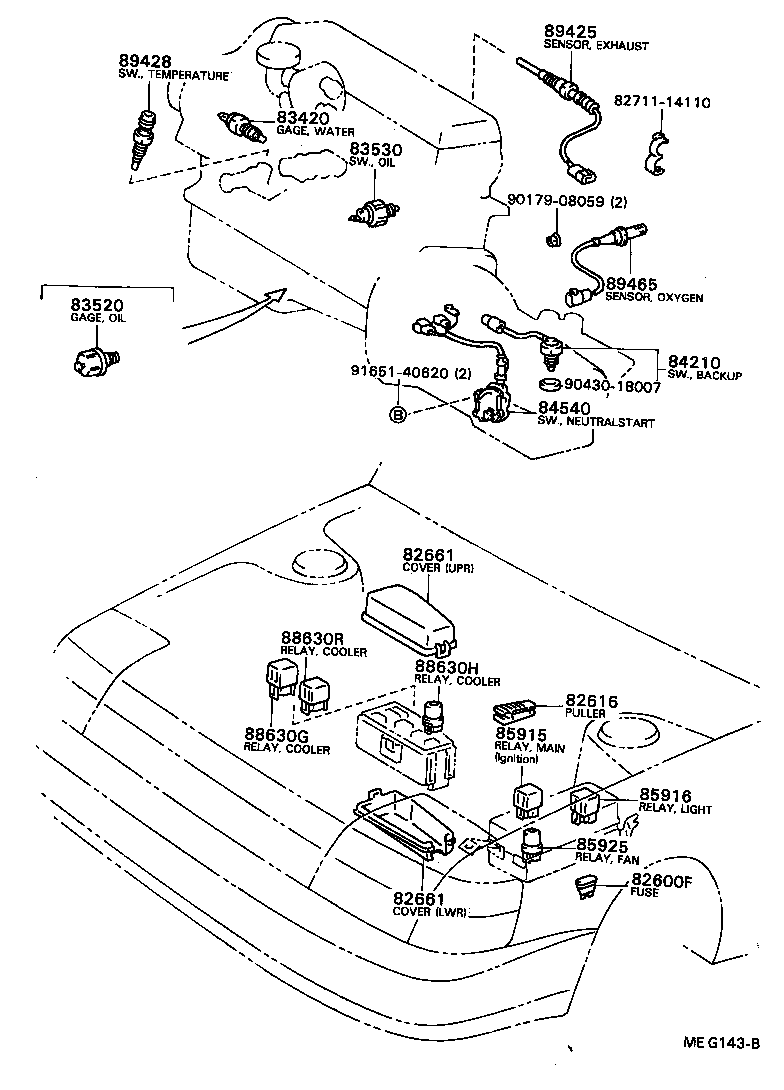

ILLUST NO. 1 OF 5(8508- )ST160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT160,ST16# 30A,緑,30A |
2 | ||
| 90982-09003 |
AT160,ST16# 15A,15A |
10 | ||
| 90982-09004 |
AT160,ST16# 20A,黄,20A |
1 | ||
| 90982-09002 |
AT160,ST16# 10A,10A |
4 | ||
| 90982-09005 |
AT160,ST16# 7.5A,7.5A |
6 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AT160,ST16# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20110 |
AT160,ST16# LWR |
1 | ||
| 82661-20100 |
AT160,ST16# UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20110 |
AT160,ST16# LWR |
1 | ||
| 82661-20100 |
AT160,ST16# UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AT160,ST16# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14020 |
ST160..ST,SV |
1 | ||
| 83530-30080 |
ST160..ST,SV |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AT160,ST16#..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AT160,ST16#..GT,GT4,ST,SX POWER MAIN |
1 | ||
| 90987-04002 |
AT160,ST16# IGNITION MAIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT160,ST16# HEAD |
1 | ||
| 90987-02002 |
AT160,ST16# TAIL,MARUKO |
1 | ||
| 90987-02004 |
AT160,ST16# TAIL,DENSO |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AT160,ST16# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AT160,ST16# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AT160,ST16# |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 85926-30020 |
AT160,ST16# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12190 |
ST160,165 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
ST160,162 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20051 |
ST160 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91651-40620 | ||||

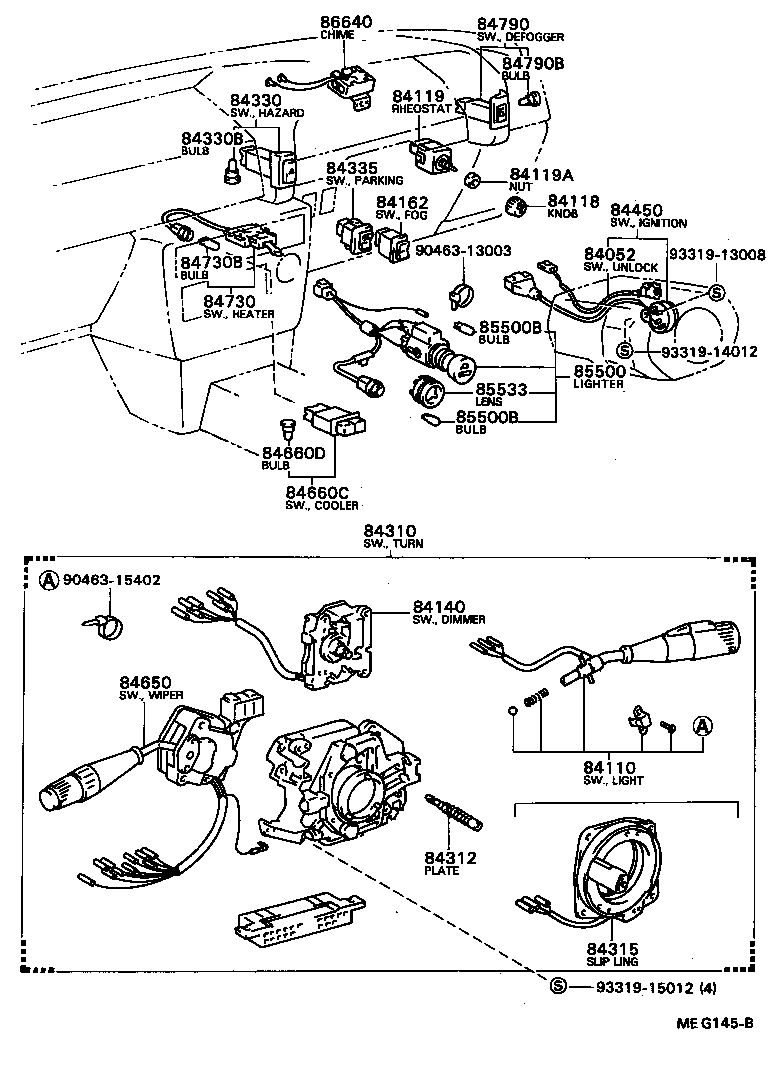

ILLUST NO. 2 OF 5(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29505 |
AT160,ST160,162..GT,ST,SV MATSUSHITA |
1 | ||
| 84112-29445 |
AT160,ST160,162..GT,ST,SV TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20190 |
AT160,ST160,162..GT,ST,SV MATSUSHITA |
1 | ||
| 84140-20150 |
AT160,ST160,162..GT,ST,SV TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2B570 |
ST160..ST,SV W/O *RW |
1 | ||
| 84310-2B710 |
AT160,ST160,162..GT,ST W/*RW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
AT160,ST16# TOKAIRIKA |
1 | ||
| 84312-32020 |
AT160,ST16# MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-2016003 |
AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84332-2016004 |
AT160,ST16# BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10160 |
AT160,ST16# 12V 1.8W,12V 1.8W |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95400 |
AT160,ST16# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20170 |
AT160,ST160,162 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-20820 |
ST160..ST,SV TOKAIRIKA,W/O *RW |
1 | ||
| 84652-2B080 |
AT160,ST160,162..GT,ST MATSUSHITA,W/*RW |
1 | ||
| 84652-2B030 |
ST160..ST,SV MATSUSHITA,W/O *RW |
1 | ||
| 84652-20870 |
AT160,ST160,162..GT,ST TOKAIRIKA,W/*RW |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AT160,ST160,162 W/*LHC |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AT160,ST16# 14V 0.08A,12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20170 |
AT160,ST160,162 W/*AAC |
1 | ||
| 84732-20160 |
AT160,ST160,162 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT160,ST16# 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-2015003 |
ST160 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-2015003 |
ST16#;AT160..5F GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790-2015004 |
ST16#;AT160..5F BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 84790-2015004 |
ST160 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10160 |
ST16#;AT160..5F 12V 1.8W,12V 1.8W |
1 | ||
| 84999-10160 |
ST160 12V 1.8W,12V 1.8W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20200 |
AT160,ST16# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT160,ST16# 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT160,ST16# 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
AT160,ST16# |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-20090 |
AT160,ST16# |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

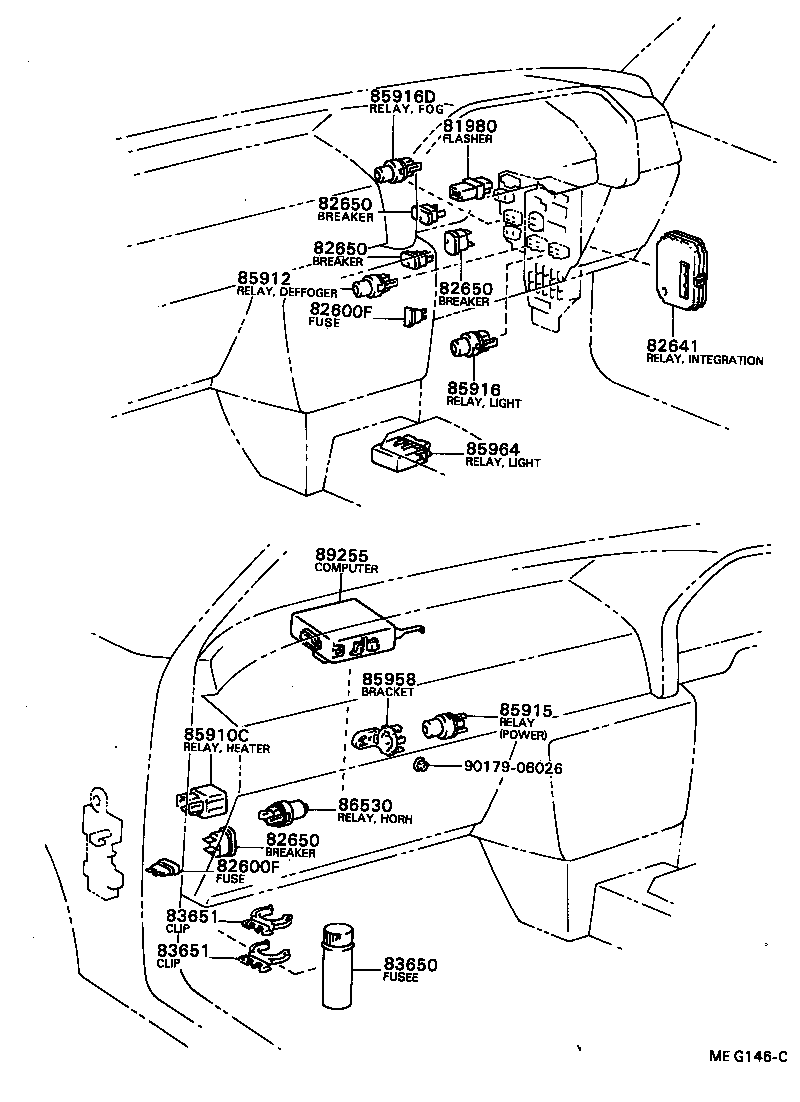

ILLUST NO. 3 OF 5(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
AT160,ST16# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT160,ST16# 30A,緑,30A |
2 | ||
| 90982-09003 |
AT160,ST16# 15A,15A |
10 | ||
| 90982-09004 |
AT160,ST16# 20A,黄,20A |
1 | ||
| 90982-09002 |
AT160,ST16# 10A,10A |
4 | ||
| 90982-09005 |
AT160,ST16# 7.5A,7.5A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT160,ST16# 30A,緑,30A |
2 | ||
| 90982-09003 |
AT160,ST16# 15A,15A |
10 | ||
| 90982-09004 |
AT160,ST16# 20A,黄,20A |
1 | ||
| 90982-09002 |
AT160,ST16# 10A,10A |
4 | ||
| 90982-09005 |
AT160,ST16# 7.5A,7.5A |
6 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST16# 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST16# 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST16# 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST16# 30A,30A |
3 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
AT160,ST16# |
1 | ||
| 90986-01005 |
AT160,ST16# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25001 |
AT160,ST16# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25001 |
AT160,ST16# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT160,ST16# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AT160,ST16# MARUKO |
1 | ||
| 90987-02004 |
AT160,ST16# DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AT160,ST16#..GT,GT4,ST,SX POWER MAIN |
1 | ||
| 90987-04002 |
AT160,ST16# IGNITION MAIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT160,ST16# HEAD |
1 | ||
| 90987-02002 |
AT160,ST16# TAIL,MARUKO |
1 | ||
| 90987-02004 |
AT160,ST16# TAIL,DENSO |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85999-12050 |
AT160,ST16#..GT,GT4,ST,SX |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-17010 |
AT160,ST16# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AT160,ST16# DENSO |
1 | ||
| 90987-02002 |
AT160,ST16# MARUKO |
1 | ||
| Common parts | ||||
| 90179-06026 | ||||

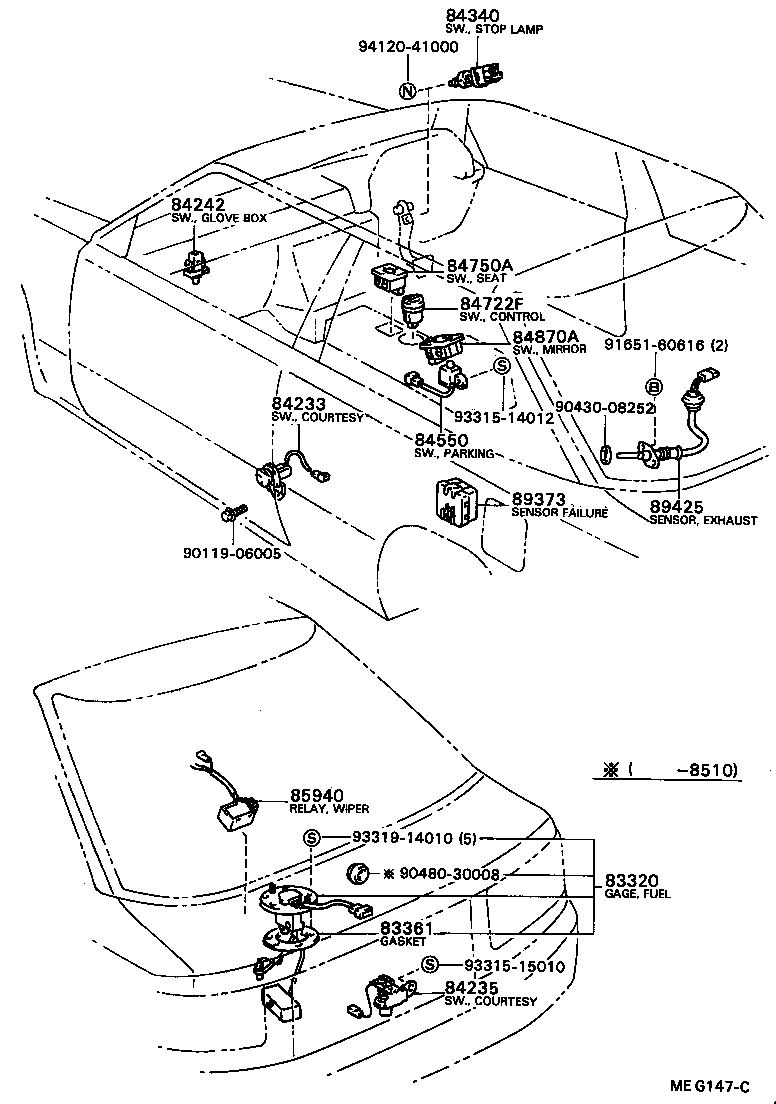

ILLUST NO. 4 OF 5(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80020 |
ST160..SV |
1 | ||
| 83320-80021 |
AT160,ST160,162..GT,ST,SX |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT160,ST16# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
AT160,ST16# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20130 |
AT160,ST16# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT160,ST16#..GT,GT4,ST,SX |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AT160,ST16# TOKAIRIKA |
1 | ||
| 84340-30030 |
AT160,ST16# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
AT160,ST16# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AT160,ST16#..GT,GT4,ST,SX |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20080 |
AT160,ST16#..GT,GT4,ST,SX W/RR WIPER |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12190 |
ST160,165 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90430-08252 | ||||
| 90480-30008 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
ILLUST NO. 5 OF 5(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20020 |
AT160,ST16#..GT,GT4,ST,SX |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20020 |
AT160,ST16#..GT,GT4,ST,SX |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90167-20001 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 8511 | ||||
