ST160-BLMNL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

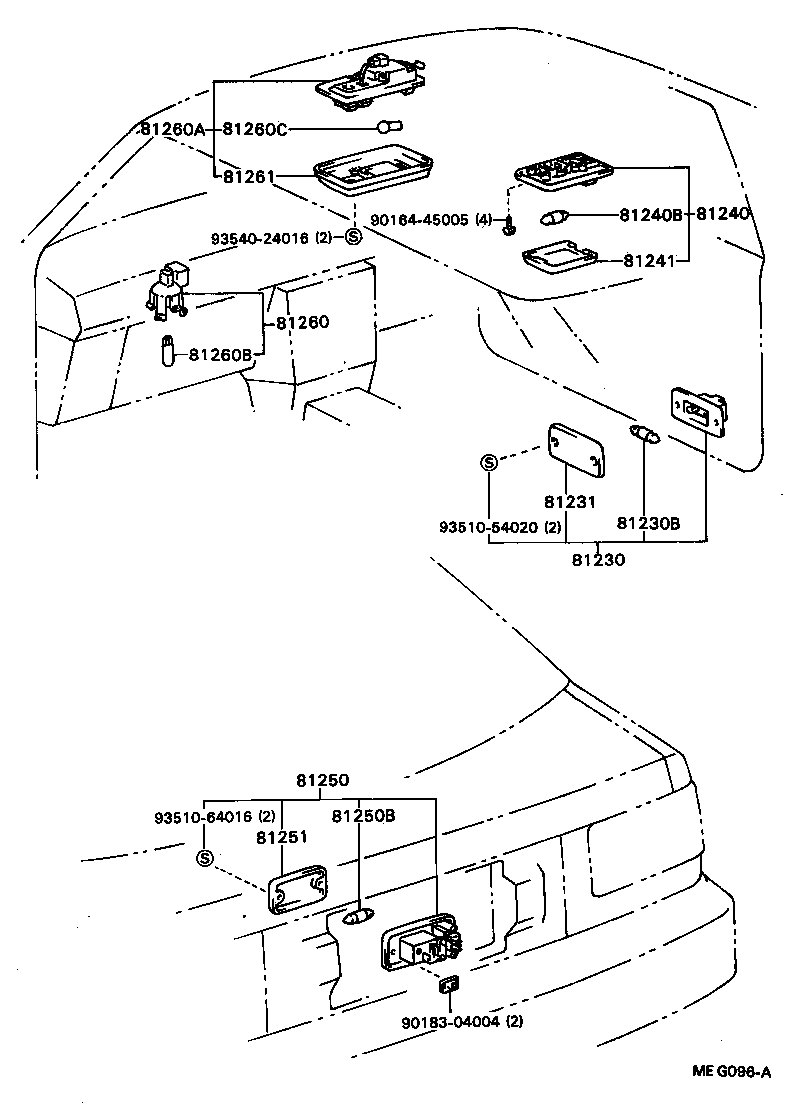

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260B 81260C 81261 9016445005 9018304004 9351054020 9351064016 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2208013

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
81240-2208104

AT160,ST160,162

BLUE,DARK BLUE,TRIM8#

 1
81240-2208004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
81240-2208113

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AT160,ST16#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

AT160,ST16#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-1403013

AT160,ST16#

GRAY,GRAY,TRIM1#

 1
81250-1403014

AT160,ST160,162

BLUE,BLUE,TRIM8#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AT160,ST16#

12V 5W,12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-14030

AT160,ST16#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

AT160,ST16#..GT,GT4,ST,SX

 1
81260A - LAMP ASSY, MAP
81260-2009003

AT160,ST16#..GT,GT4,ST,SX

GRAY,SHADOW GRAY,TRIM1#

 1
81260-2009004

AT160,ST160,162..GT,ST,SX

BLUE,DEEP BLUE,TRIM8#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

AT160,ST16#..GT,GT4,ST,SX

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT160,ST16#..GT,GT4,ST,SX

12V 10W,12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-2009004

AT160,ST160,162..GT,ST,SX

BLUE,DEEP BLUE,TRIM8#

 1
81261-2009003

AT160,ST16#..GT,GT4,ST,SX

GRAY,SHADOW GRAY,TRIM1#

 1
Common parts
90164-45005
90183-04004
93510-54020
93510-64016
93540-24016
