ST160-BLMNL (1985)
Toyota Celica

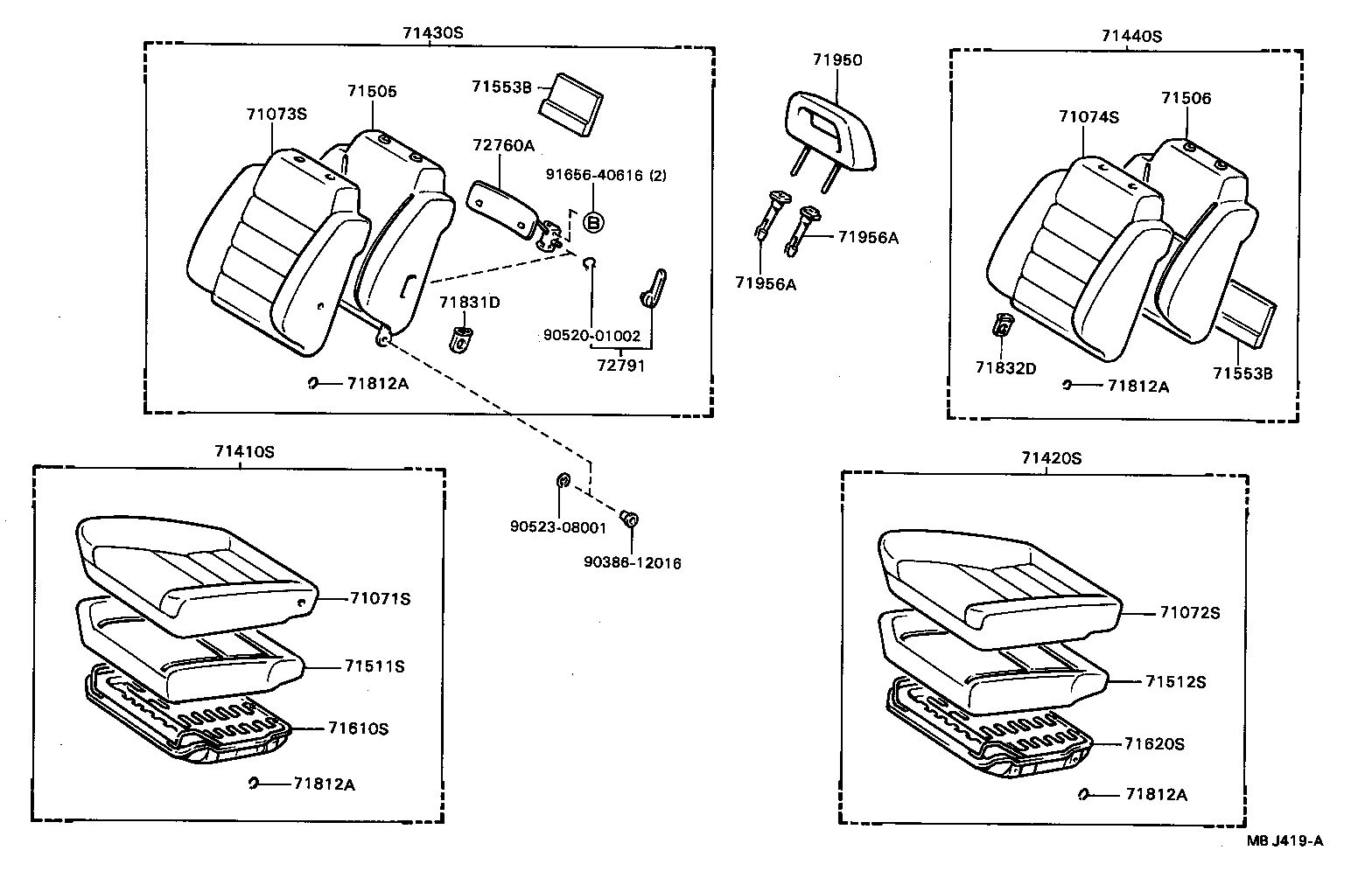

ILLUST NO. 1 OF 2(8508- )ST160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B71003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B71004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B85003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B85004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B12004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B12003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B74003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2B74103 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2B74004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B74104 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B41004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B41003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B75003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2B75004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B75103 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2B75104 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B21004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B21003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B64104 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B64004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B64103 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2B64003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B39003 |
ST160..ST,SV FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B39004 |
ST160..ST,SV FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20010 |
ST160..ST,SV |
1 | ||
| 71505-20011 |
ST160..ST,SV |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20010 |
ST160 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST160 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST160 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20110 |
ST160 |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20110 |
ST160 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20290 |
ST160 |
1 | ||
| 71610-20380 |
ST160 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20270 |
ST160 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
ST160 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
ST160 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2060004 |
ST160..SV BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-2060003 |
ST160..SV GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2056003 |
ST160..ST GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2056004 |
ST160..ST BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
ST160 ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
ST160 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001001 |
ST160 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001044 |
ST160 ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
ST160 ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
ST160 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001001 |
ST160 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001044 |
ST160 ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91656-40616 | ||||

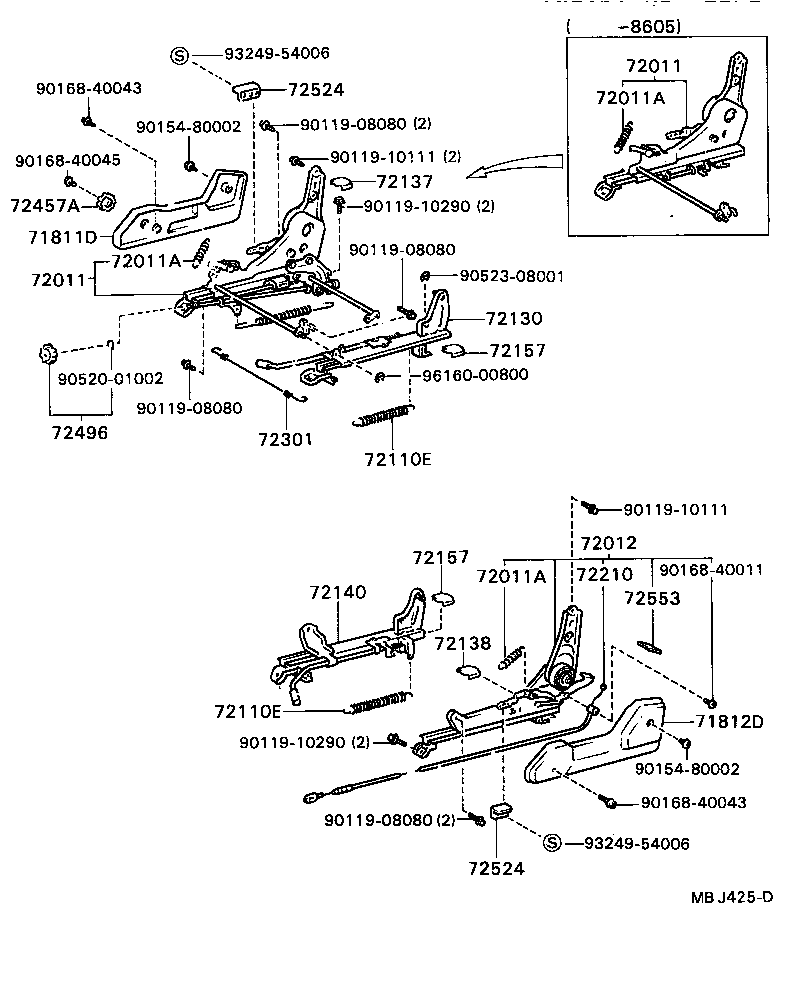

ILLUST NO. 2 OF 2(8508- )ST160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1701003 |
ST160 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1701004 |
ST160 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407003 |
ST160 GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1407034 |
ST160 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20180 |
ST160 |
1 | ||
| 72010-20160 |
ST160 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20180 |
ST160 |
1 | ||
| 72010-20160 |
ST160 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
ST160 WD=3.5 |
1 | ||
| 90506-18015 |
ST160 WD=1.8 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
ST160 WD=3.5 |
1 | ||
| 90506-18015 |
ST160 WD=1.8 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
ST160 WD=3.5 |
1 | ||
| 90506-18015 |
ST160 WD=1.8 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20160 |
ST160 |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18014 |
ST160 |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18014 |
ST160 |
2 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-20240 |
ST160 |
1 | ||
| 72130-20250 |
ST160 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20030 |
AT160,ST16# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20020 |
AT160,ST16# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-20180 |
ST160 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-20030 |
AT160,ST160,162 LH |
1 | ||
| 72138-20020 |
AT160,ST160,162 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-20030 |
AT160,ST160,162 LH |
1 | ||
| 72138-20020 |
AT160,ST160,162 RH |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20020 |
ST160 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
AT160,ST160,162 |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701003 |
AT160,ST16# RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1701004 |
AT160,ST160,162 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72496-3201014 |
ST160 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72496-3201023 |
ST160 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209024 |
ST160 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
ST160 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203003 |
ST160 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203024 |
ST160 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209024 |
ST160 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
ST160 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203003 |
ST160 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203024 |
ST160 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
ST160 |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10290 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
